GUARD LUGGAGE BOX

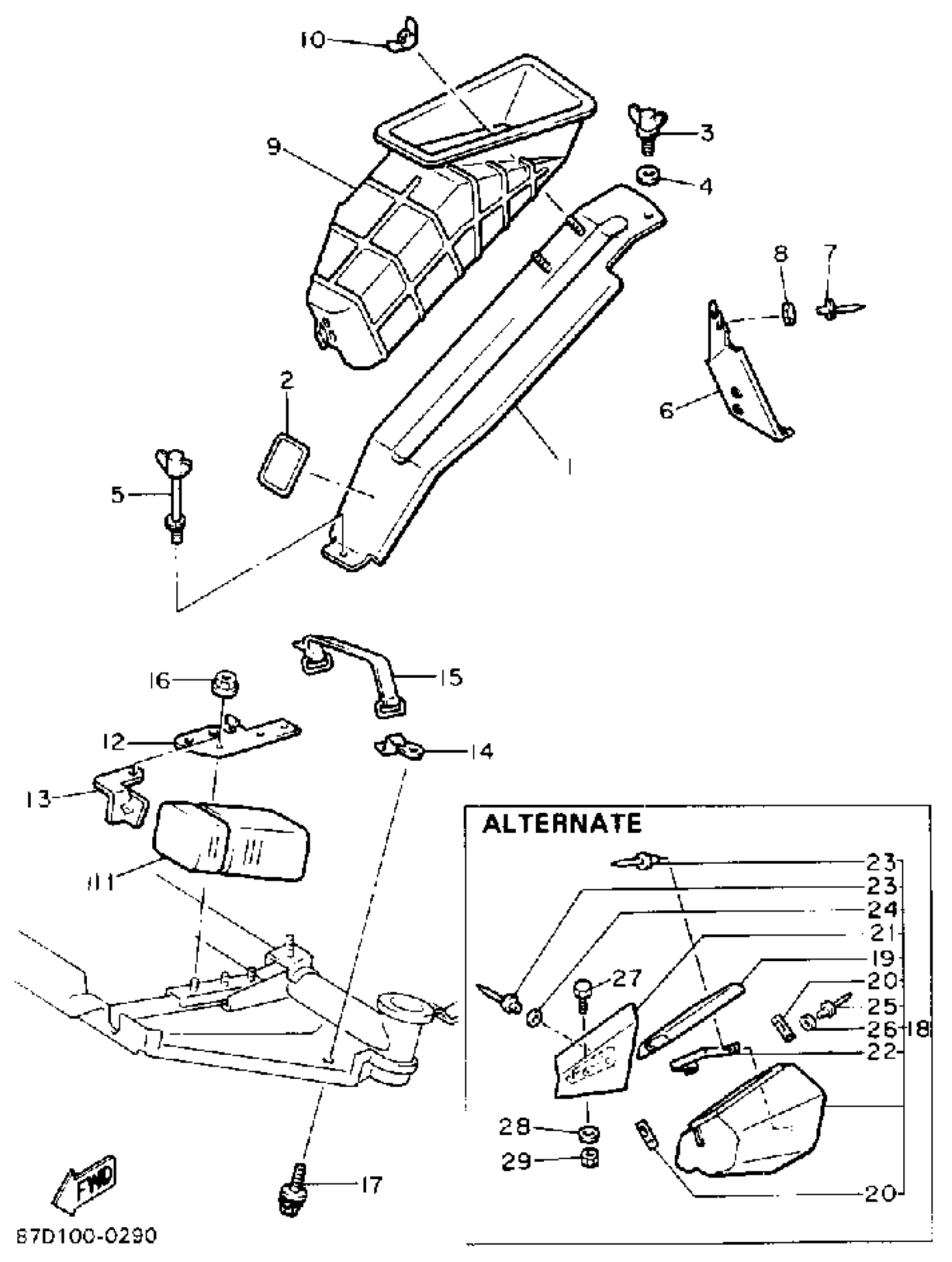

Yamaha CS340P (OVATION) 1990 GUARD LUGGAGE BOX Diagram
#
1
GUARD, DRIVE
85L-77311-00-00
Unavailable
2
LABEL, WARNING 2
8BD-77762-00-00
$7.99
3
BOLT, WING
90122-08029-00
Unavailable
4
WASHER, PLATE (12X)
90201-087F0-00
$5.60
5
SCREW
8V0-77387-00-00
$16.99
6
PROTECTOR
85L-77373-01-00
Unavailable
7
RIVET, BLIND (8K2)
90267-48079-00
$3.50
8
WASHER, PLAIN LARGE
92907-05200-00
$4.46
9
DUCT
85L-12661-00-00
Unavailable
10
NUT, WING
90175-06015-00
Unavailable
11
TOOL KIT
85L-28100-01-00
$74.99
12
BRACKET, TOOL BOX FITTING
8V0-21945-00-00
Unavailable
13
BRACKET 3
87D-2196F-00-00
Unavailable
14
BRACKET, TOOL BOX FITTING
8V0-21955-00-00
Unavailable
15
BAND, BATTERY
4J2-82131-01-00
$29.99
16
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
17
BOLT, WITH WASHER(55K)
90119-06117-00
Unavailable
18
STORAGE BOX, OVATN
85M-77380-00-00
Unavailable
19
. LID, TOOL BOX
85M-77382-00-00
Unavailable
20
HOOK
J10-14436-00-00
Unavailable
21
. PROTECTOR, TOOL BOX
85M-77373-00-00
Unavailable
22
. HOLDER, TOOL
85M-28175-00-00
Unavailable
23
RIVET, BLIND
90267-489UJ-00
Unavailable
24
WASHER, PLATE
90201-04027-00
Unavailable
25
RIVET, BLIND (J10)
90267-40077-00
Unavailable
26
YBS66-4 WASHER, PLAIN
92990-04200-00
Unavailable
27
BOLT, FLANGE
95817-06012-00
Unavailable
28
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
29
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
