TRACK DRIVE 2

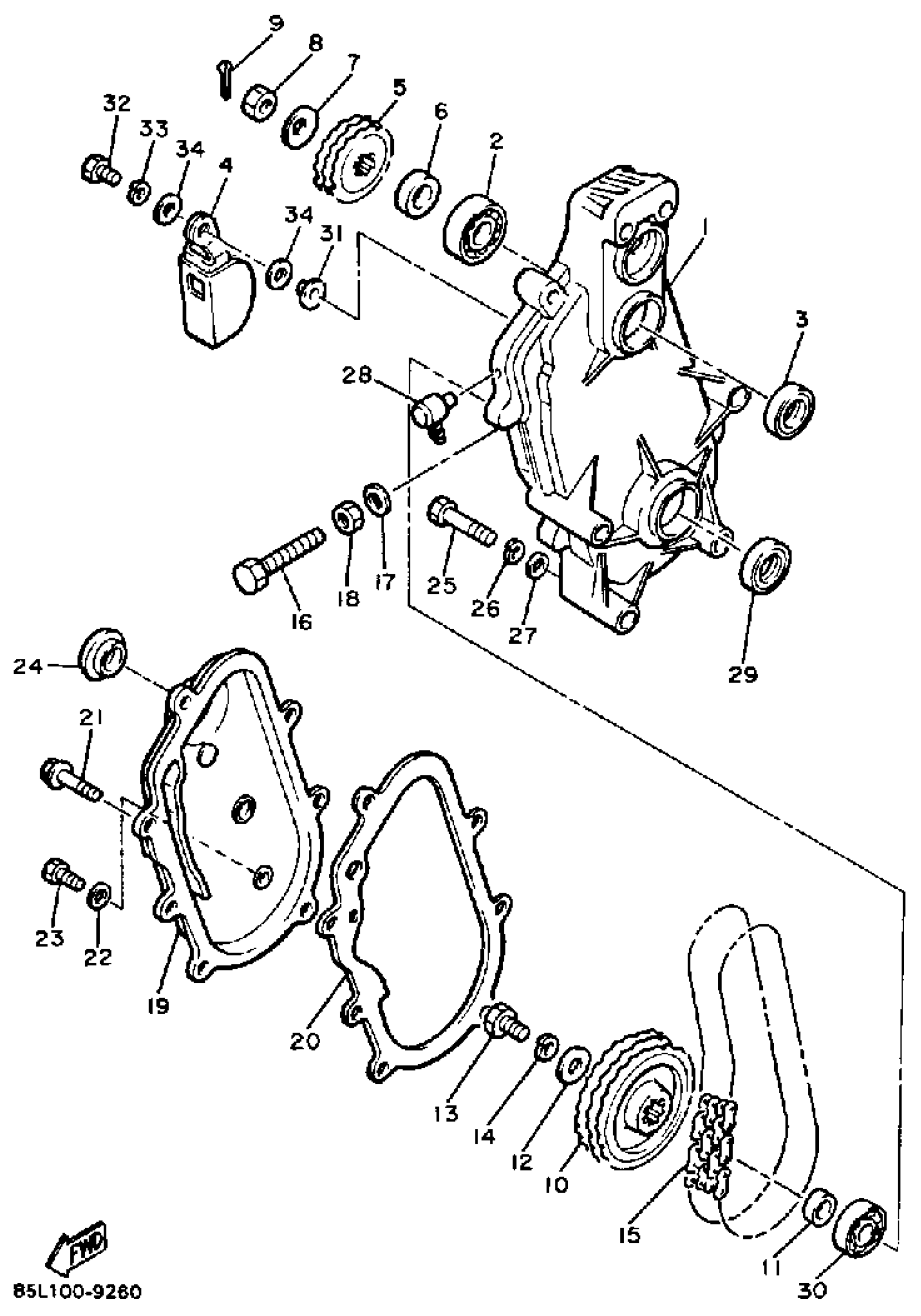

Yamaha CS340N (OVATION) 1989 TRACK DRIVE 2 Diagram
#
1
HOUSING, CHAIN
99999-02119-00
Unavailable
2
BRG,R-B 6304 52MM 144G NT
93306-30407-00
Unavailable
3
OIL SEAL
93102-25418-00
Unavailable
4
TENSIONER
85L-47611-00-00
Unavailable
4
TENSIONER
85L-47611-90-00
Unavailable
5
SPROCKET, CHAIN DRIVE (10T)
802-17682-10-00
Unavailable
5
SPROCKET, CHAIN DRIVE (11T)
802-17682-20-00
Unavailable
5
SPRKT,CHAIN DR
806-17682-30-00
Unavailable
5
SPROCKET, CHAIN DRIVE (12T)
806-17682-20-00
Unavailable
5
SPROCKET, CHAIN DRIVE (14T)
806-17682-40-00
Unavailable
6
COLLAR
90387-190V2-00
Unavailable
7
WASHER, PLATE (35T)
90201-122H1-00
$9.49
8
NUT, SELF LOCKING (23X)
90185-12119-00
$11.49
9
PIN, COTTER(6L5)
91490-25030-00
$3.77
10
SPROCKET, CHAIN DRIVEN (22T)
85T-47548-20-00
Unavailable
10
SPROCKET, CHAIN DRIVEN (23T)
85T-47548-30-00
Unavailable
10
SPROCKET, CHAIN DRIVEN
85T-47548-40-00
Unavailable
11
COLLAR
90387-256V3-00
Unavailable
12
WASHER PLATE (3L6)
90201-10742-00
Unavailable
13
BOLT(6TD)
97017-10025-00
Unavailable
14
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
15
CHAIN
94880-01048-00
Unavailable
16
BOLT, HEXAGON (8F3)
90101-10357-00
Unavailable
17
WASHER SEAL 256111730200
90210-10004-00
Unavailable
18
NUT (682)
95380-10700-00
Unavailable
19
CAP, HOUSING
8V0-47543-00-00
Unavailable
20
GASKET
86F-47592-01-00
Unavailable
21
BOLT, FLANGE
95822-06025-00
Unavailable
22
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
23
BOLT(3JP)
97017-06010-00
Unavailable
24
PLUG(83R)
90338-30219-00
Unavailable
25
BOLT, WITH WASHER
90119-08015-00
Unavailable
26
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
27
.. WASHER, PLATE
92990-08600-00
Unavailable
28
BREATHER
583-15371-00-00
Unavailable
29
OIL SEAL (25X44X6-810)
93102-25081-00
Unavailable
30
BEARING (80N)
93306-20570-00
Unavailable
31
COLLAR (8K4)
90387-08301-00
Unavailable
32
BOLT, HEXAGON
97017-08025-00
Unavailable
33
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
34
WASHER, PLATE (33N)
90201-094G1-00
Unavailable
