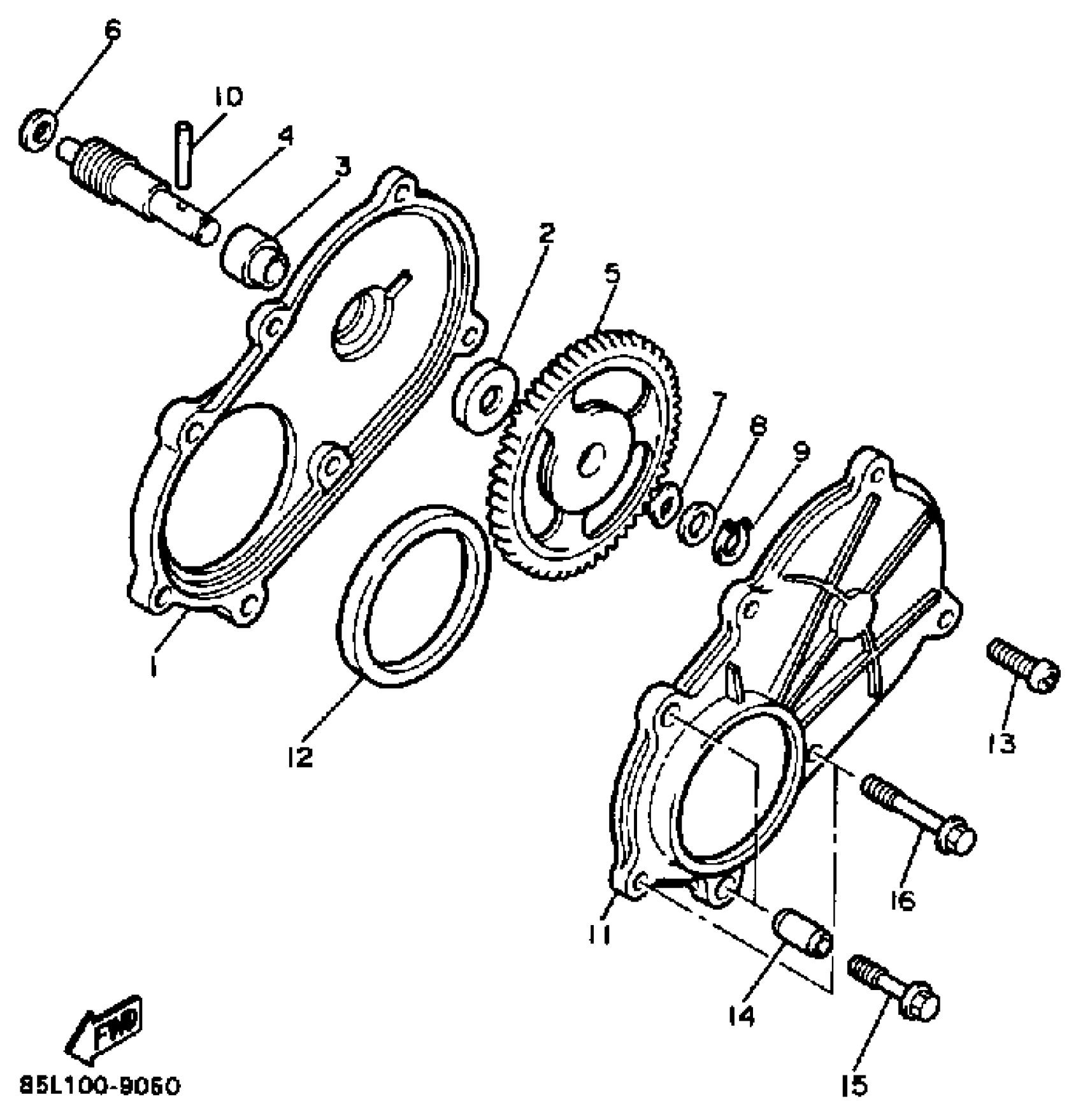

Yamaha CS340N (OVATION) 1989 PUMP DRIVE GEAR Diagram

COVER, OIL PUMP

85L-15416-00-00

Unavailable

OIL SEAL (J10)

93101-10090-00

$8.49

METAL, WORM SHAFT OUTER

821-13176-00-00

$17.49

SHAFT, WORM

85L-13175-00-00

Unavailable

GEAR, DRIVE (59T)

8R4-13188-00-00

Unavailable

PLATE, CAM THRUST

137-13148-00-00

Unavailable

WASHER, WAVE (137)

90206-11016-00

Unavailable

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

CIRCLIP(10W)

99009-10400-00

$4.73

PIN,DOWEL (137)

93603-22028-00

$3.76

COVER, OIL PUMP 2

85L-15426-02-00

Unavailable

OIL SEAL (8V0)

93104-52079-00

$14.99

SCREW, PAN

98507-06014-00

$8.49

PIN, DOWEL

91810-18022-00

Unavailable

BOLT, FLANGE

95817-06035-00

$7.49

BOLT, FLANGE

95822-06025-00

Unavailable
