FUEL TANK

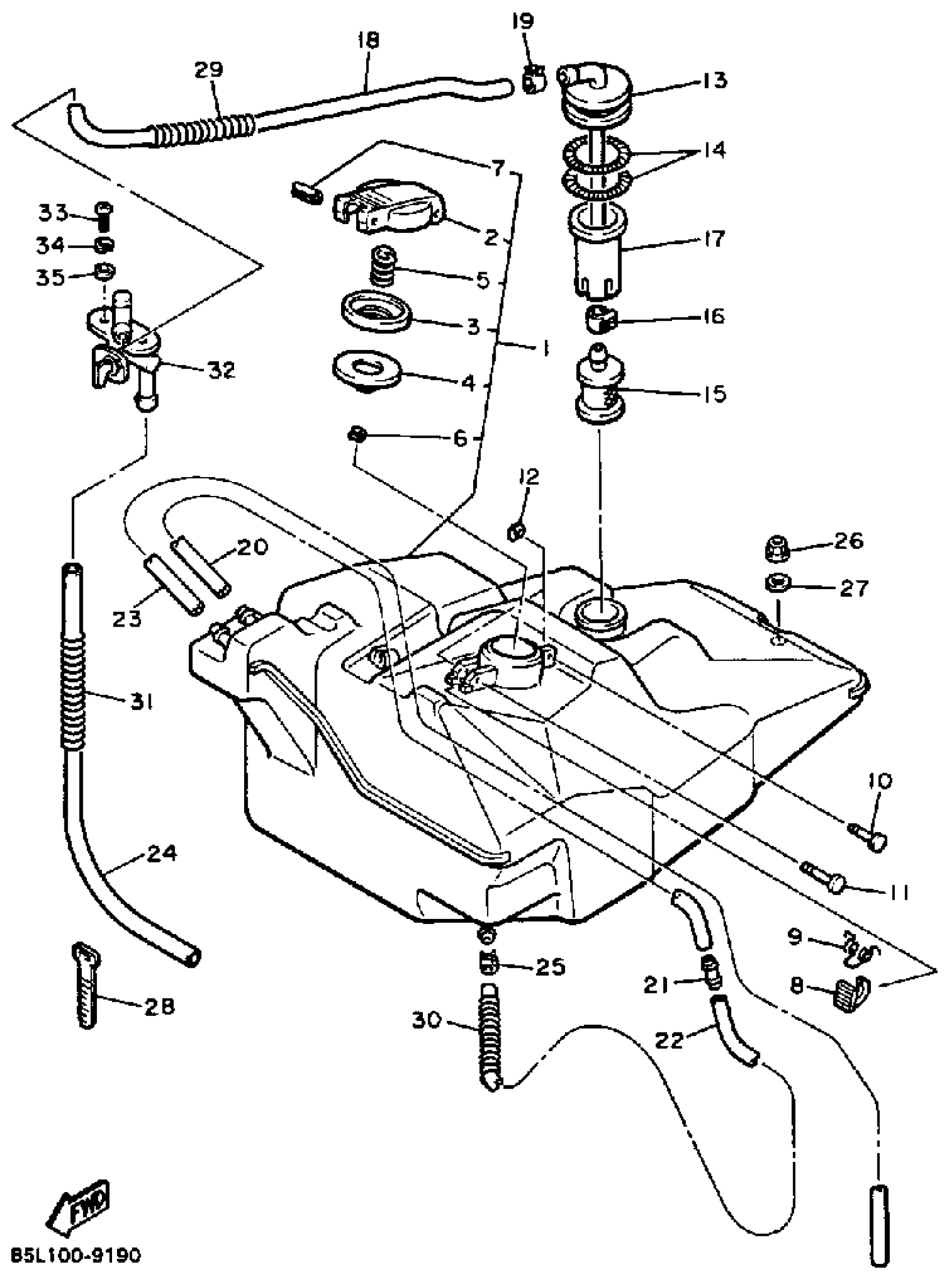

Yamaha CS340N (OVATION) 1989 FUEL TANK Diagram
#
1
FUEL TANK
85L-24111-00-00
Unavailable
2
BODY, CAP
8W6-24611-00-00
Unavailable
3
DISK,CAP
813-24613-01-00
$20.99
4
GASKET, CAP 1
89A-24641-00-00
$10.99
5
SPRING, CAP
90501-20130-00
$8.49
6
PIN, SPRING
91690-30016-00
Unavailable
7
PIN, SPRING (8W6)
91609-25050-00
$0.90
8
HOOK
83M-24628-00-00
$24.99
9
SPRING, TORSION(81E)
90508-10715-00
Unavailable
10
PIN (8W6)
90249-03175-00
Unavailable
11
PIN (813)
90249-03017-00
$7.49
12
CIRCLIP (604)
93430-02001-00
$8.49
13
PIPE, SUCTION 1 (8V0-24335-01)
86M-24335-00-00
Unavailable
14
SPRING, TENSION (8R4)
90506-06261-00
$9.49
15
FILTER ASSY
8H5-24560-00-00
Unavailable
16
CLIP
90467-11028-00
Unavailable
17
PIPE, SUCTION 2
8V0-24336-00-00
Unavailable
18
TUBE, FLEXIBLE VINYL(86X)
91A20-07100-00
Unavailable
19
CLIP
90467-11028-00
Unavailable
20
TUBE, FLEXIBLE VINYL(8AK)
91A20-05080-00
Unavailable
21
PIPE, JOINT
8H8-24376-00-00
Unavailable
22
TUBE, FLEXIBLE VINYL(8AK)
91A20-05080-00
Unavailable
23
TUBE, FLEXIBLE VINYL(8AT)
91A20-05145-00
Unavailable
24
HOSE
(90446-11313-00)
Unavailable
25
CLIP (8A1)
90467-09026-00
Unavailable
26
NUT, NYLON
95717-08300-00
Unavailable
27
WASHER, PLATE (3L7)
90201-08784-00
Unavailable
28
BAND
341-26397-01-00
Unavailable
29
SPRING,COMPRESSION
90501-084J1-00
Unavailable
30
SPRING, COMPRESSION(8AF)
90501-083J8-00
Unavailable
31
. PROTECTOR, PIPE
85L-24327-00-00
Unavailable
32
FUEL COCK ASSEMBLY
85L-24500-00-00
Unavailable
33
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
34
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
35
WASHER, PLAIN (646)
92990-05600-00
Unavailable
