Description

Price

1

C.D.I. UNIT ASSEMBLY

81E-85540-M0-00

Unavailable

2

BAND

2A7-85546-00-00

Unavailable

3

RECTIFIER & REGULATOR ASSY

22J-81960-92-00

Unavailable

4

BOLT(4GV)

97017-05012-00

$8.49

5

IGNITION COIL ASSY

85T-82310-06-00

$79.99

6

SCREW PAN HEAD

98580-06020-00

$8.49

7

WASHER, SPRING

92995-06100-00

Unavailable

8

WIRE, SUB LEAD (85L-82318-00)

85L-82318-01-00

Unavailable

9

GROMMET 1

8W6-82355-00-00

Unavailable

10

BAND, SWITCH CORD

437-83936-01-00

$7.99

11

PLUG CAP ASSY

85G-82370-20-00

$34.99

12

SEAL

8G5-82372-00-00

$5.60

13

MAIN SWITCH ASSY

8K4-82510-20-00

Unavailable

14

WIRE HARNESS ASSEMBLY

85L-82590-00-00

Unavailable

15

BAND

341-26397-01-00

Unavailable

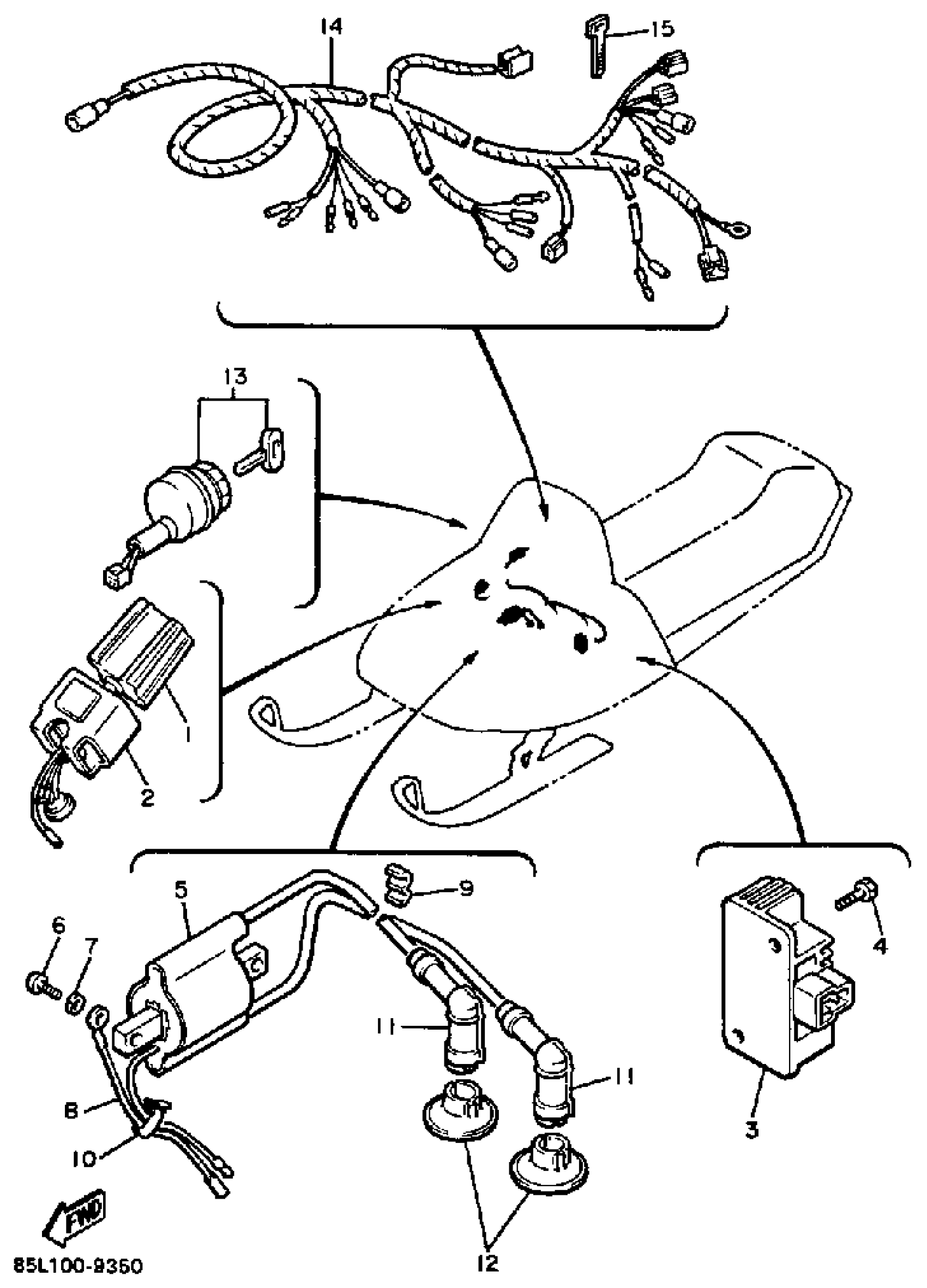

Yamaha CS340N (OVATION) 1989 ELECTRICAL 1 Diagram

C.D.I. UNIT ASSEMBLY

BAND

RECTIFIER & REGULATOR ASSY

BOLT(4GV)

IGNITION COIL ASSY

SCREW PAN HEAD

WASHER, SPRING

WIRE, SUB LEAD (85L-82318-00)

GROMMET 1

BAND, SWITCH CORD

PLUG CAP ASSY

SEAL

MAIN SWITCH ASSY

WIRE HARNESS ASSEMBLY

BAND
