1996 Yamaha Ovation LE (CS340EW) Meter Diagram

← All diagrams

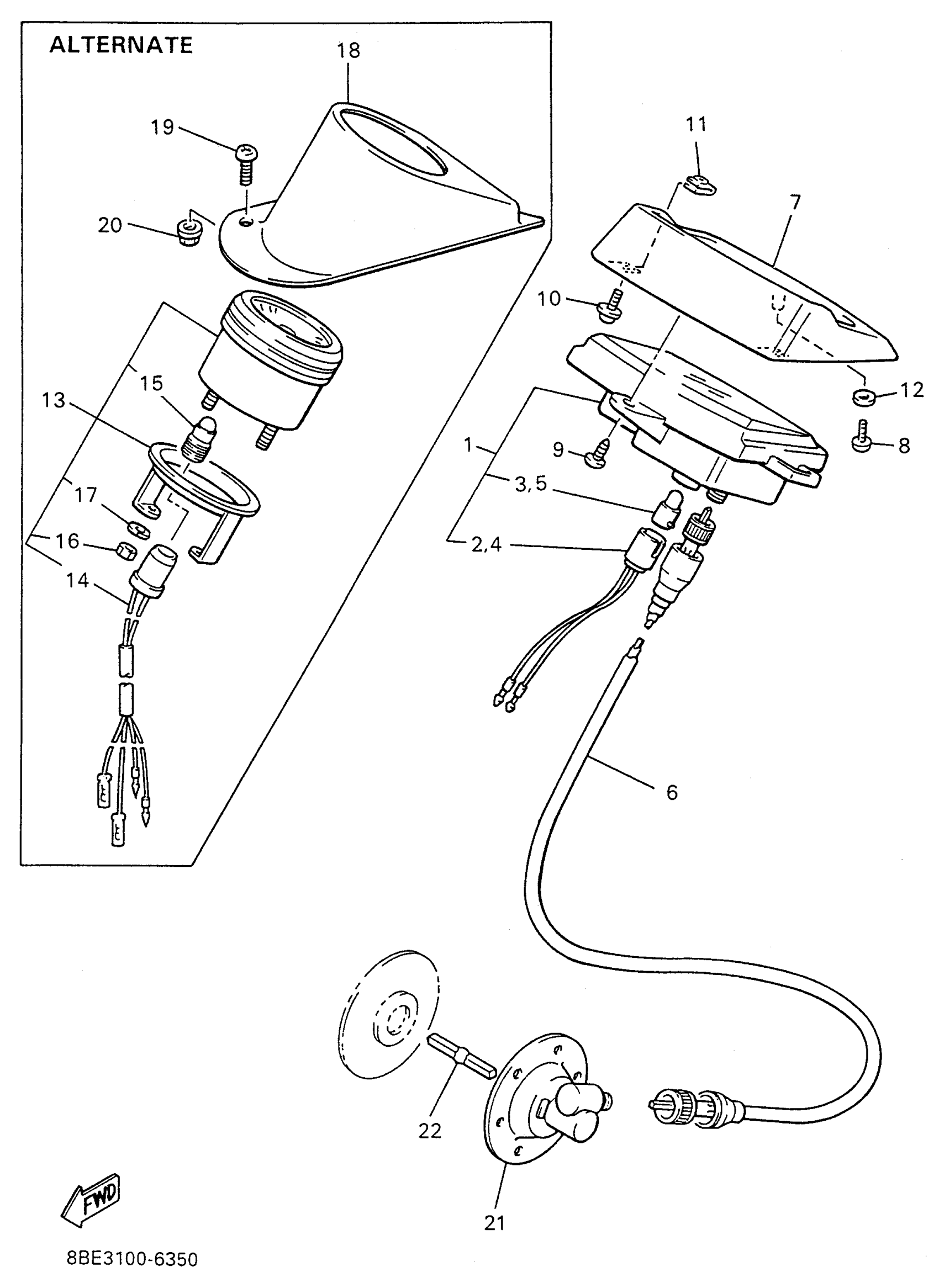

Find the part on the Meter diagram for your 1996 Yamaha Ovation LE (CS340EW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Yamaha Ovation LE (CS340EW) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY (MILE/H)

85N-83510-40-00

1
Out of stock

2

SOCKET CORD ASSY

5E2-83509-20-00

1

$24.89

In stock

3

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

4

SOCKET CORD ASSY

5E2-83509-20-00

1

$24.89

In stock

5

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

6

SPEEDOMETER CABLE ASSEMBLY

85N-83550-01-00

1
Out of stock

7

COVER, METER

87D-83559-00-00

1
Out of stock

8

SCREW, BINDING

98907-05016-00

1

$6.18

In stock

9

SCREW, TAPPING(53L)

90167-05030-00

1

$6.69

In stock

10

SCREW, WITH WASHER

90159-05137-00

1
Out of stock

11

NUT, SPRING

90183-051A0-00

1

$2.66

In stock

12

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

13

TACHOMETER ASSY

85L-83540-00-00

1
Out of stock

14

SOCKET CORD ASSY

85L-83509-00-00

—

$22.09

In stock

15

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

16

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

17

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

18

PANEL, TACHOMETER 2

85N-8354E-00-00

1
Out of stock

19

SCREW, BINDING

98907-06010-00

—

$1.49

In stock

20

NUT, FLANGE(4MV)

95707-06500-00

—

$0.78

In stock

21

METER GEAR HOUSING COMP

8Y1-47700-00-00

—

$64.45

In stock

22

JOINT

8K4-47715-00-00

—

$4.60

In stock
