TRACK DRIVE 2

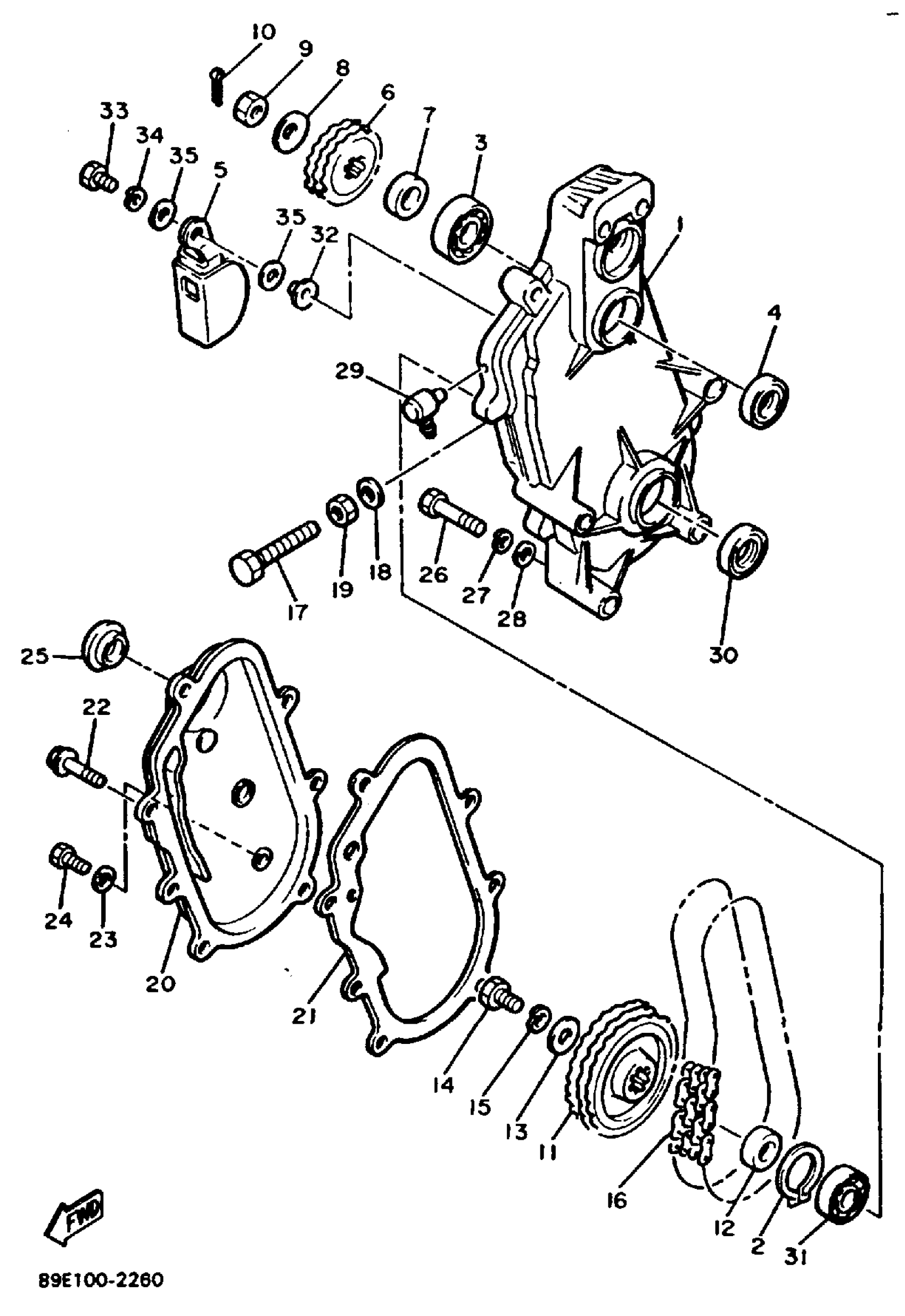

1995 Yamaha Ovation LE (CS340EV) Track Drive 2 Diagram
Find the part on the Track Drive 2 diagram for your 1995 Yamaha Ovation LE (CS340EV), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
HOUSING, CHAIN
8V0-47541-01-00
4
OIL SEAL
93102-25418-00
5
TENSIONER
85L-47611-00-00
5
TENSIONER
85L-47611-90-00
6
SPROCKET, CHAIN DRIVE (10T)
802-17682-10-00
6
SPROCKET, CHAIN DRIVE (11T)
802-17682-20-00
6
SPROCKET, CHAIN DRIVE (12T)
806-17682-20-00
6
SPRKT,CHAIN DR
806-17682-30-00
6
SPROCKET, CHAIN DRIVE (14T)
806-17682-40-00
7
COLLAR
90387-190V2-00
9
NUT, SELF LOCKING (23X)
90185-12119-00
11
SPROCKET, CHAIN DRIVEN (22T)
85T-47548-20-00
11
SPROCKET, CHAIN DRIVEN (23T)
85T-47548-30-00
12
COLLAR
90387-256V3-00
16
CHAIN
94880-01048-00
21
GASKET
86F-47592-01-00
26
BOLT
97021-08065-00
29
BREATHER
583-15371-00-00
30
OIL SEAL (25X44X6-810)
93102-25081-00
