1995 Yamaha Ovation Le (CS340EV) Pump Drive Gear Diagram

← All diagrams

Find the part on the Pump Drive Gear diagram for your 1995 Yamaha Ovation Le (CS340EV), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

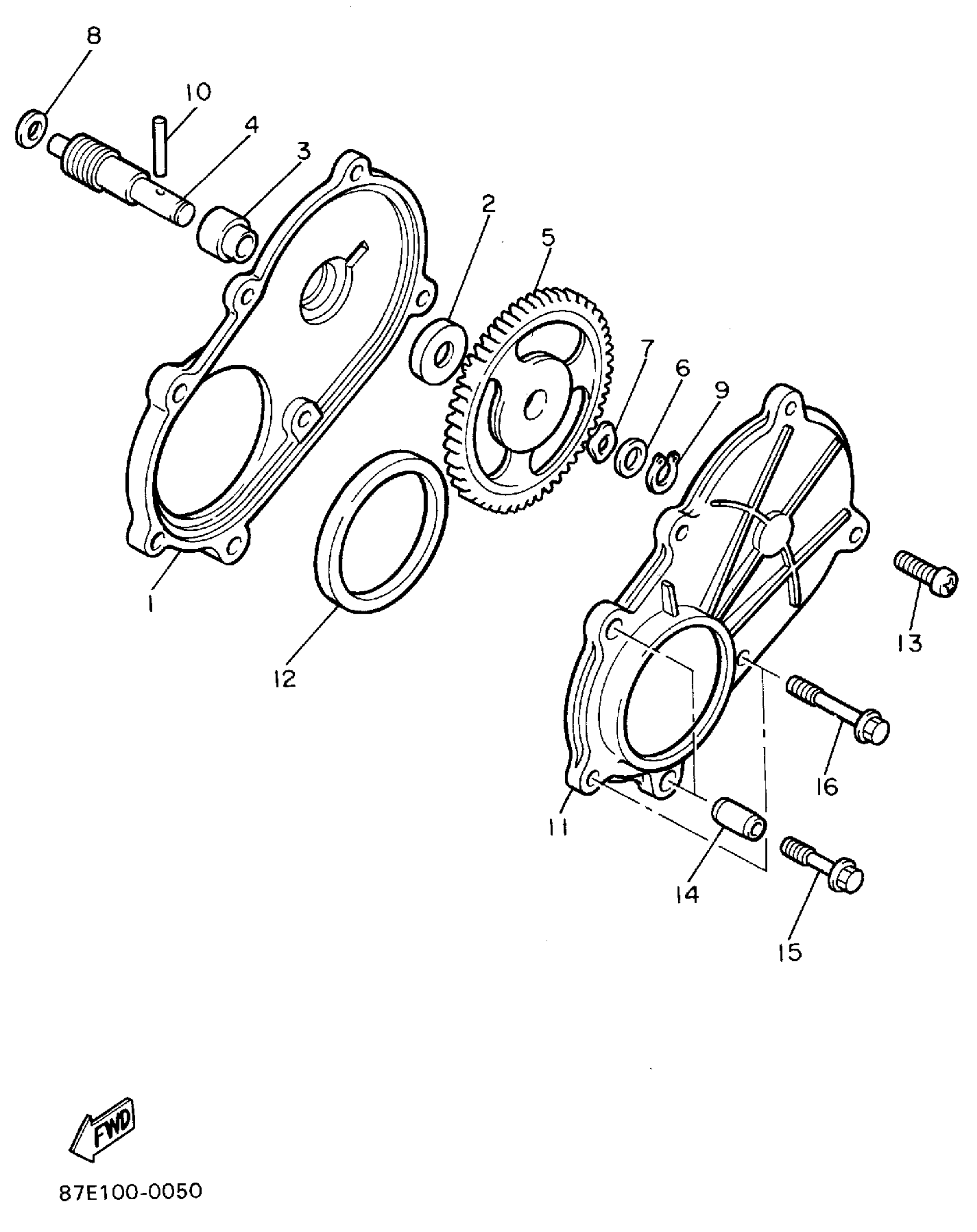

1995 Yamaha Ovation Le (CS340EV) Pump Drive Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, OIL PUMP

85L-15416-00-00

1
Out of stock

2

OIL SEAL (J10)

93101-10090-00

1
Out of stock

3

METAL, WORM SHAFT OUTER

821-13176-00-00

1
Out of stock

4

SHAFT, WORM

85L-13175-00-00

1
Out of stock

5

GEAR, DRIVE (59T)

8R4-13188-00-00

1
Out of stock

6

PLATE, CAM THRUST

137-13148-00-00

—
Out of stock

7

WASHER, WAVE (137)

90206-11016-00

—
Out of stock

8

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

9

CIRCLIP(10W)

99009-10400-00

1
Out of stock

10

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

11

COVER, OIL PUMP 2

85L-15426-02-00

—
Out of stock

12

OIL SEAL (8V0)

93104-52079-00

1
Out of stock

13

SCREW, PAN HEAD

98580-06016-00

1
Out of stock

14

PIN, DOWEL

91810-18022-00

1
Out of stock

15

BOLT, FLANGE

95817-06035-00

1
Out of stock

16

BOLT, FLANGE

95822-06025-00

—
Out of stock
← Primary Sheave Secondary Sheave →
