Description

Price

1

OIL PUMP ASSEMBLY

85L-13101-00-00

Unavailable

2

. PLUG

90338-21100-00

Unavailable

3

BALL

93505-32002-00

$2.92

4

SPRING (278-13169-00)

90501-02018-00

$9.49

5

HOSE

91A30-03052-00

Unavailable

6

NOZZLE

353-13552-01-00

$9.99

7

CLIP (2A6)

90468-02025-00

$9.49

8

GASKET 137131870000

90430-04004-00

$9.49

9

SCREW, BIND

98980-04008-00

Unavailable

10

PLATE, ADJUSTING

137-13138-01-00

Unavailable

11

SHIM,PLUNGER

137-13137-00-03

$5.49

11

SHIM,PLUNGER

137-13137-00-05

$6.99

11

SHIM,PLUNGER

137-13137-00-10

$7.99

12

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

13

NUT, HEXAGON (663)

95380-05600-00

$8.49

14

COVER, ADJUST PULLEY

8A5-13146-01-00

Unavailable

15

SCREW, PAN HEAD

98507-04018-00

Unavailable

16

PUMP CABLE ASSY

85L-26320-00-00

Unavailable

17

GASKET, PUMP CASE

126-13116-01-00

Unavailable

18

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

19

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

20

CLIP (2A6)

90468-02025-00

$9.49

21

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

Unavailable

22

CLIP (8A1)

90467-09026-00

Unavailable

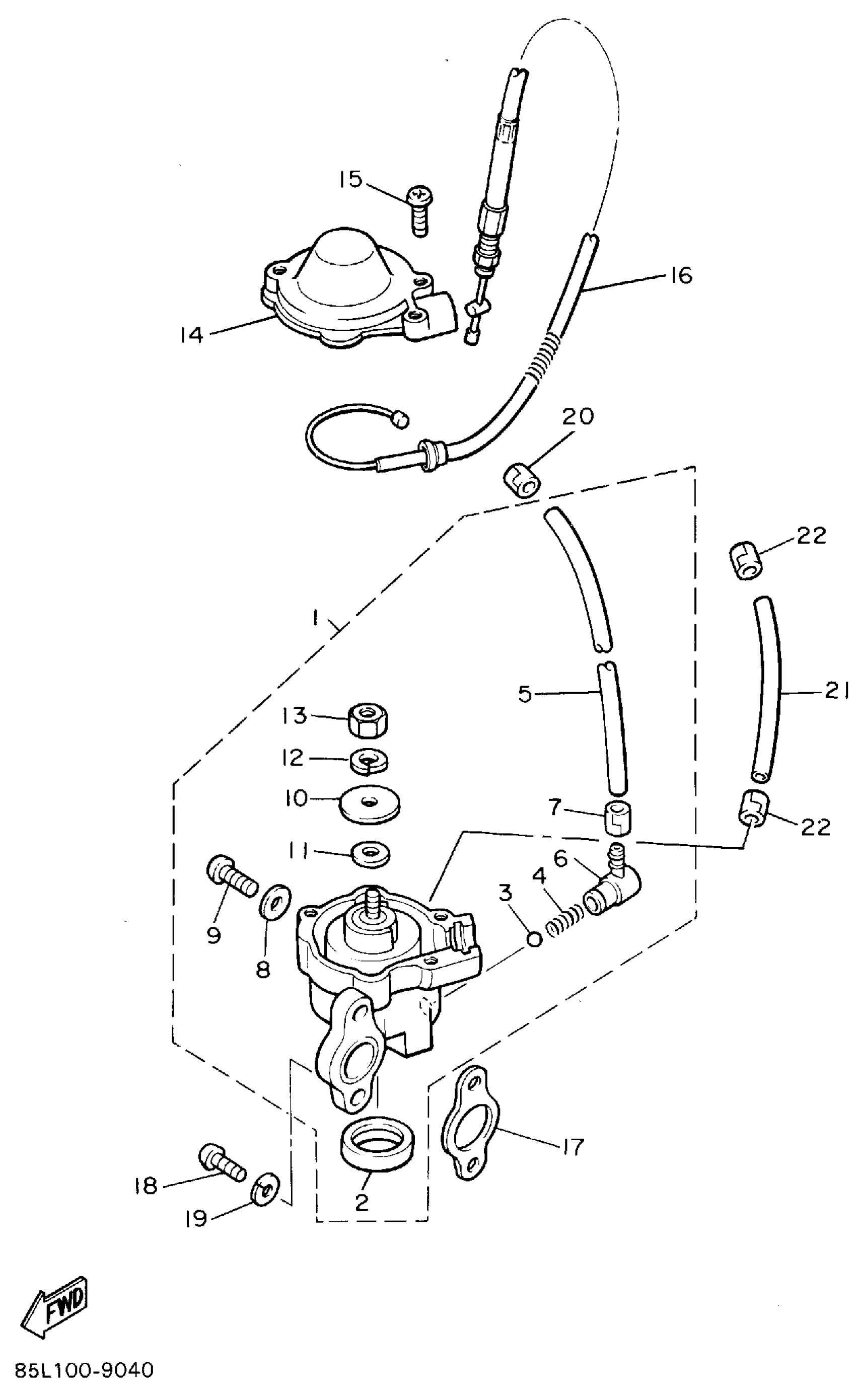

Yamaha CS340EV (OVATION LE) 1995 OIL PUMP Diagram

OIL PUMP ASSEMBLY

. PLUG

BALL

SPRING (278-13169-00)

HOSE

NOZZLE

CLIP (2A6)

GASKET 137131870000

SCREW, BIND

PLATE, ADJUSTING

SHIM,PLUNGER

SHIM,PLUNGER

SHIM,PLUNGER

YBS67-5 WASHER, SPRING

NUT, HEXAGON (663)

COVER, ADJUST PULLEY

SCREW, PAN HEAD

PUMP CABLE ASSY

GASKET, PUMP CASE

SCREW, PAN HEAD(6B0)

YBS67-5 WASHER, SPRING

CLIP (2A6)

TUBE, FLEXIBLE VINYL(8AK)

CLIP (8A1)
