Description

Price

1

SPEEDOMETER ASSEMBLY (MILE/H)

85N-83510-40-00

Unavailable

2

SOCKET CORD ASSY

5E2-83509-20-00

$28.99

3

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

4

SPEEDOMETER CABLE ASSEMBLY

85N-83550-01-00

Unavailable

5

COVER, METER

87D-83559-00-00

Unavailable

6

SCREW, BIND

98903-05016-00

Unavailable

7

SCREW, TAPPING(53L)

90167-05030-00

$8.49

8

SCREW, WITH WASHER

90159-05137-00

Unavailable

9

NUT, SPRING

90183-051A0-00

$3.81

10

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

11

TACHOMETER ASSY

85L-83540-00-00

$335.99

12

SOCKET CORD ASSY

85L-83509-00-00

Unavailable

13

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

14

NUT, HEXAGON (663)

95380-05600-00

$8.49

15

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

16

PANEL, TACHOMETER 2

85N-8354E-00-00

Unavailable

17

SCREW, BINDING

98907-06010-00

Unavailable

18

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

19

BOLT, HEXAGON

97017-08016-00

Unavailable

20

WASHER(JN5)

92907-08100-00

Unavailable

21

METER GEAR HOUSING COMP

8Y1-47700-00-00

Unavailable

22

JOINT

8K4-47715-00-00

Unavailable

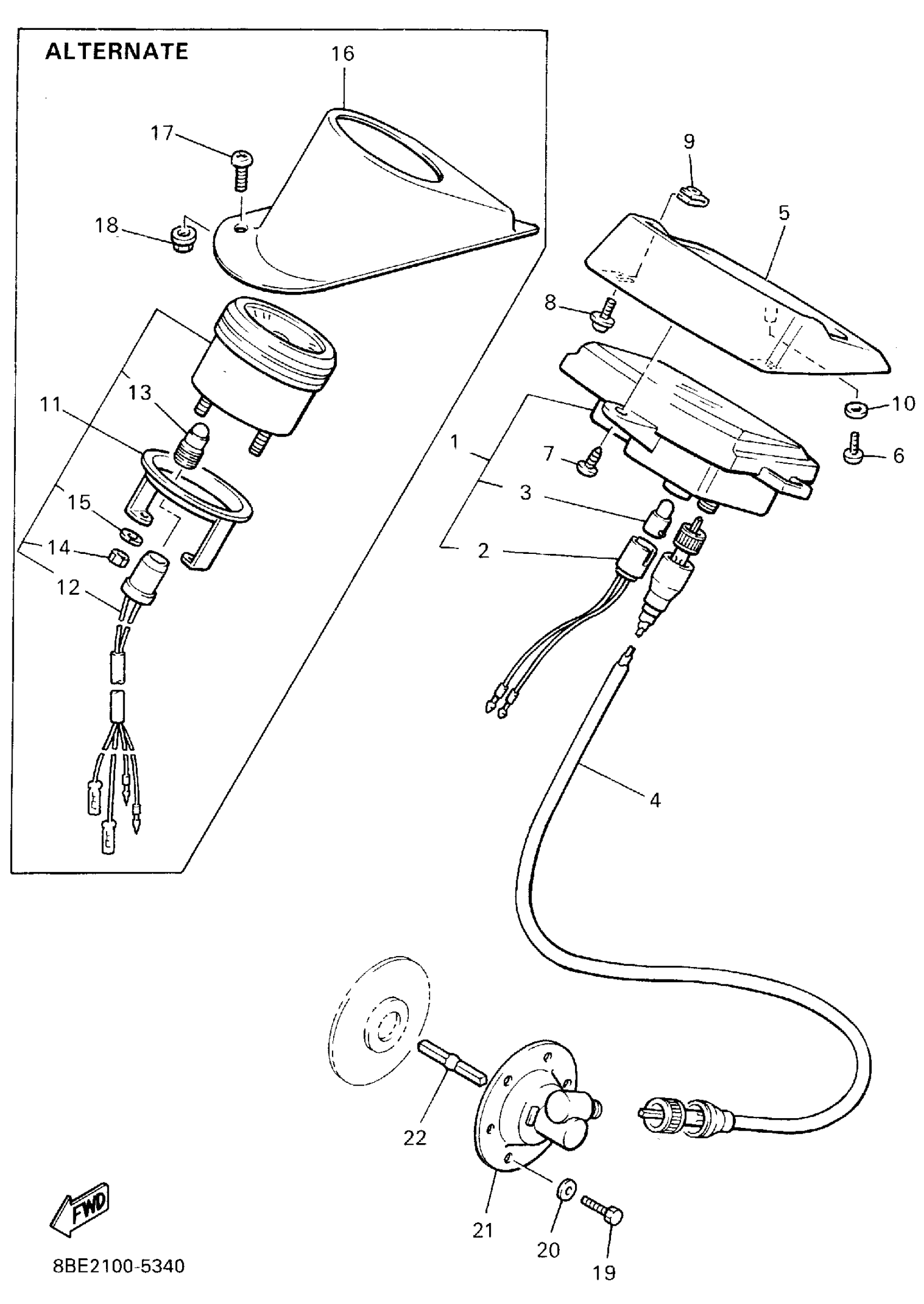

Yamaha CS340EV (OVATION LE) 1995 METER Diagram

SPEEDOMETER ASSEMBLY (MILE/H)

SOCKET CORD ASSY

BULB, MTR.12V3.4W

SPEEDOMETER CABLE ASSEMBLY

COVER, METER

SCREW, BIND

SCREW, TAPPING(53L)

SCREW, WITH WASHER

NUT, SPRING

WASHER, PLATE (8J0)

TACHOMETER ASSY

SOCKET CORD ASSY

BULB, MTR.12V3.4W

NUT, HEXAGON (663)

YBS67-5 WASHER, SPRING

PANEL, TACHOMETER 2

SCREW, BINDING

NUT, FLANGE(4MV)

BOLT, HEXAGON

WASHER(JN5)

METER GEAR HOUSING COMP

JOINT
