Description

Price

1

STARTER ASSY

85L-15710-00-00

Unavailable

2

. CASE, STARTER

8G8-15711-01-00

Unavailable

3

DRUM, SEAVE

8F3-15714-01-00

$48.99

4

PAWL, DRIVE

8F3-15741-01-00

$28.99

5

SPRING, STARTER

8F3-15713-01-00

$48.99

6

SPRING, DRIVE PLATE

8F3-15715-00-00

$9.99

7

WASHER, THRUST

8F3-15739-01-00

$11.99

8

SPRING, RETURN

8F3-15734-00-00

$5.49

9

PLATE, DRIVE

8F3-15716-03-00

$29.99

10

WASHER, SPRING

92995-06100-00

Unavailable

11

NUT(650)

95380-06700-00

$8.49

12

GUIDE, ROPE

8F3-15758-00-00

$20.99

13

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$33.99

14

HANDLE, STARTER

8F3-15755-00-00

$29.99

15

WASHER, THRUST

8G5-15739-00-00

$9.49

16

COLLOR

82M-15779-00-00

Unavailable

17

BOLT, FLANGE

95817-06045-00

Unavailable

18

PULLEY, STARTER

81L-15723-00-00

Unavailable

19

BOLT, HEXAGON

97017-08016-00

Unavailable

20

WASHER(JN5)

92907-08100-00

Unavailable

21

COVER

85L-15779-00-00

Unavailable

22

BOLT, FLANGE

95817-06030-00

Unavailable

23

BOLT, FLANGE

95817-06030-00

Unavailable

24

NUT

90179-06447-00

Unavailable

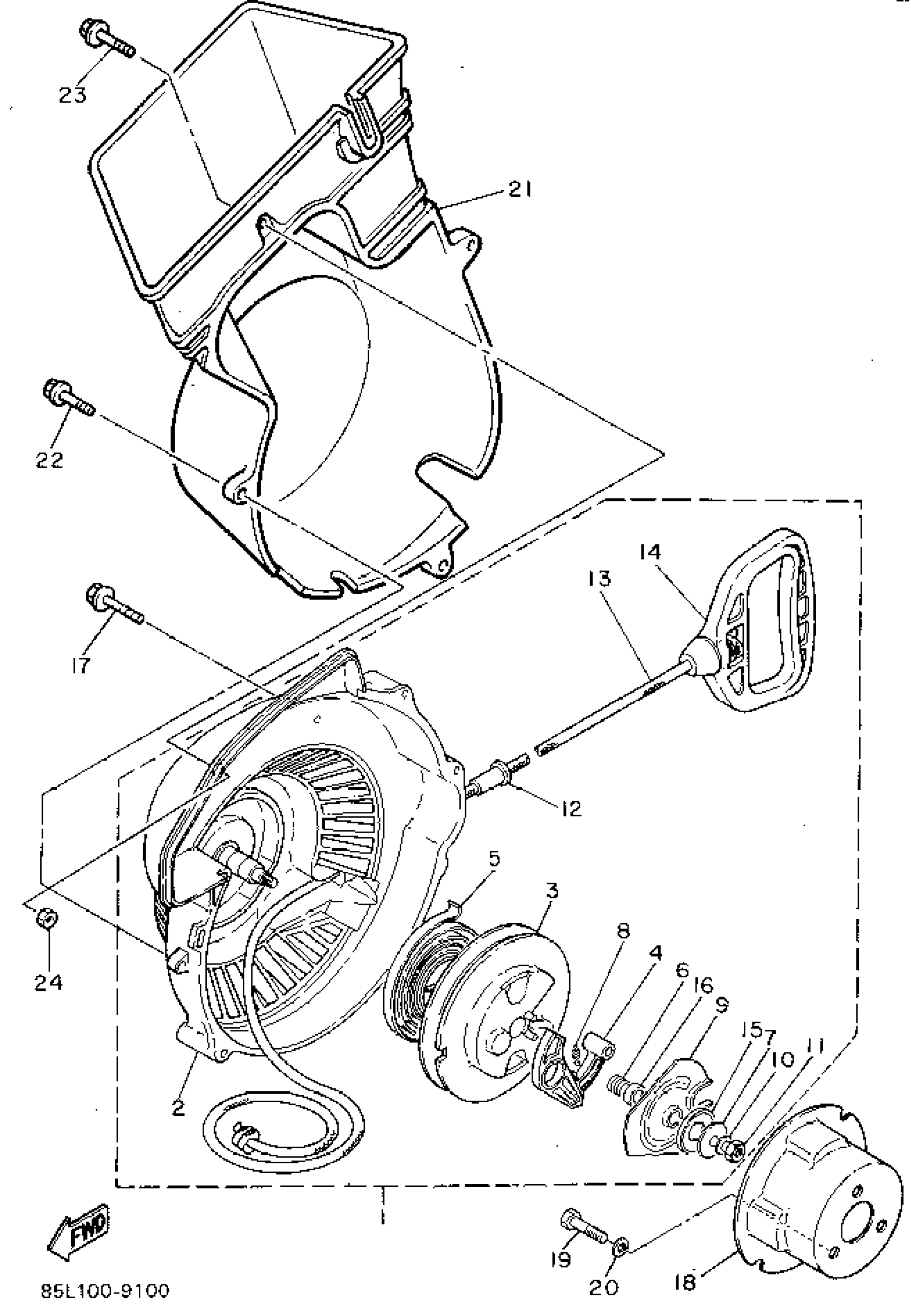

Yamaha CS340EU (OVATION LE) 1994 STARTER Diagram

STARTER ASSY

. CASE, STARTER

DRUM, SEAVE

PAWL, DRIVE

SPRING, STARTER

SPRING, DRIVE PLATE

WASHER, THRUST

SPRING, RETURN

PLATE, DRIVE

WASHER, SPRING

NUT(650)

GUIDE, ROPE

WIRE, STARTER (BRAIDED)

HANDLE, STARTER

WASHER, THRUST

COLLOR

BOLT, FLANGE

PULLEY, STARTER

BOLT, HEXAGON

WASHER(JN5)

COVER

BOLT, FLANGE

BOLT, FLANGE

NUT
