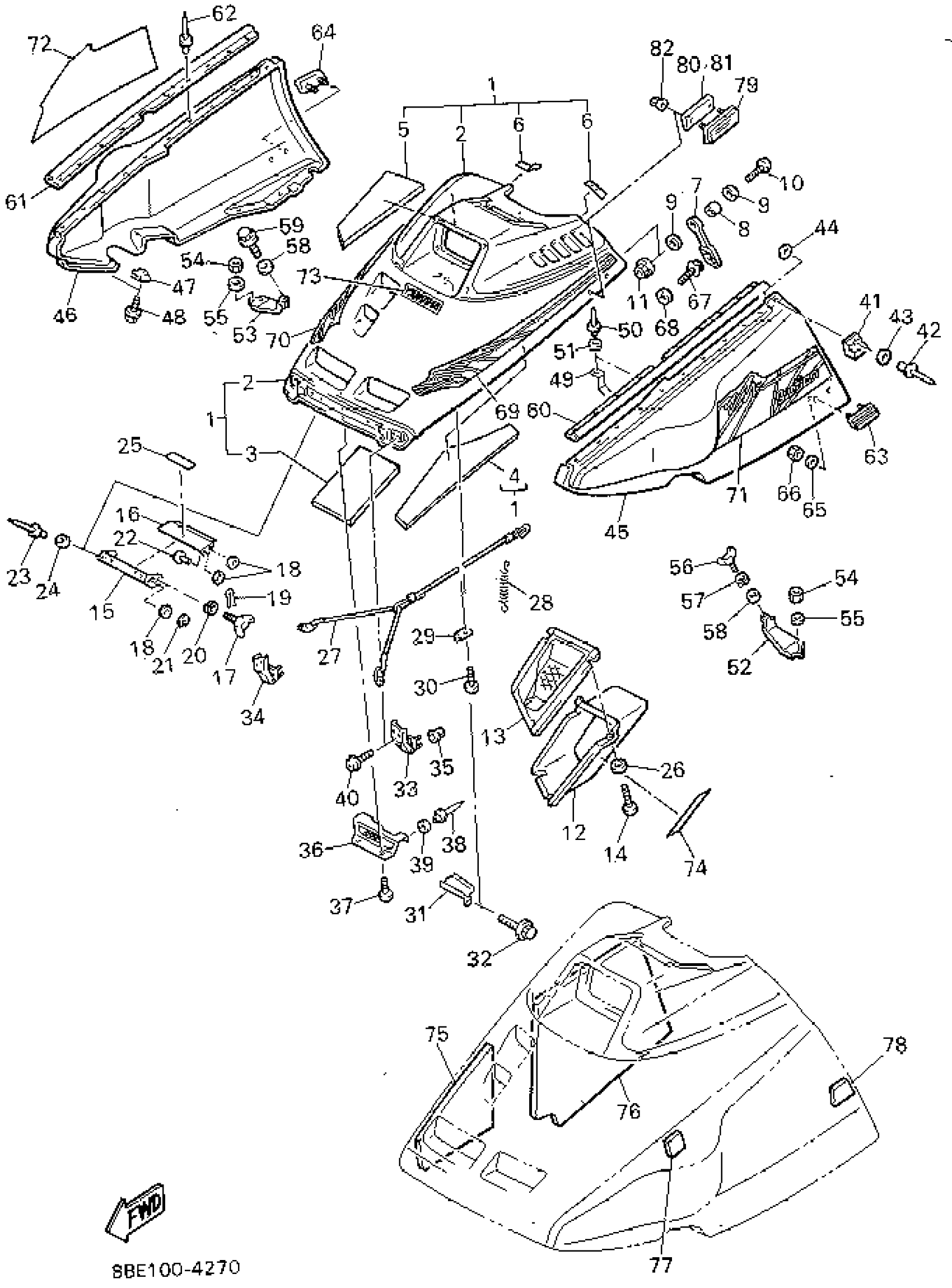

Yamaha CS340EU (OVATION LE) 1994 SHROUD Diagram
#
1
SHROUD ASSEMBLY (88E-W7714-10-00)
88E-Y7714-10-00
Unavailable
2
SHROUD ASSEMBLY
88E-Y7711-10-00
Unavailable
3
LINING, SHROUD 1
85L-77261-00-00
Unavailable
4
LINING, SHROUD 2
85L-77262-00-00
Unavailable
5
LINING, SHROUD 3
85L-77263-00-00
Unavailable
6
DAMPER, SHROUD
85L-77196-00-00
Unavailable
7
BODY, LATCH 1
8V0-77171-00-00
$21.99
8
COLLAR (420)
90387-06241-00
$8.49
9
WASHER, PLATE 8221447500
90201-06057-00
$5.60
10
SCREW, BINDING
98907-06025-00
$8.49
11
NUT, FLANGE(7NB)
95780-06500-00
$2.60
12
DUCT
85L-77194-00-00
Unavailable
13
PROTECTOR 3
85L-77553-00-00
Unavailable
14
SCREW, TAPPING(4MV)
97707-50016-00
$2.19
15
STAY 1
85L-77125-01-00
Unavailable
16
STAY 3
85L-77127-01-00
Unavailable
17
BOLT, WING(8W1)
90122-05022-00
Unavailable
18
. WASHER, PLATE
90202-05088-00
Unavailable
19
PIN, HAIR 6474123500
90468-10003-00
Unavailable
20
WASHER(3SX)
92907-05100-00
Unavailable
21
CIRCLIP (EU0)
99080-04600-00
Unavailable
22
PIN
90249-05136-00
Unavailable
23
RIVET (856)
90267-48014-00
Unavailable
24
. WASHER, PLATE (90201-04325-00 )
90201-044R6-00
Unavailable
25
LABEL,WARNING 2
8BE-77762-00-00
Unavailable
26
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
27
STOPPER,SHROUD
89X-77118-00-00
Unavailable
28
CLAMP, ROD
80L-77159-00-00
Unavailable
29
CLAMP(83R)
90461-08113-00
Unavailable
30
SCREW, TRUSS TAP.
97707-50014-00
Unavailable
31
PLATE 1
85L-77185-00-00
Unavailable
32
BOLT, WITH WASHER (4L0)
90119-05059-00
Unavailable
33
HINGE ASSEMBLY
85L-77140-00-00
Unavailable
34
HINGE ASSEMBLY 2
85L-7714A-00-00
Unavailable
35
NUT, FLANGE(7NB)
95780-06500-00
$2.60
36
PROTECTOR 4
85L-77554-00-00
Unavailable
37
SCREW, TRUSS TAP.
97707-50014-00
Unavailable
38
RIVET (856)
90267-48014-00
Unavailable
39
WASHER, PLATE (34L)
90201-043H7-00
Unavailable
40
SCREW, W/WASHER (4L0)
90159-06060-00
Unavailable
41
STOPPER
85L-77188-00-00
Unavailable
42
RIVET, BLIND (8M6)
90267-48051-00
Unavailable
43
WASHER, SPECIAL
85L-77116-00-00
Unavailable
44
. WASHER, PLATE (90201-04325-00 )
90201-044R6-00
Unavailable
45
HOOD 1
88E-21982-10-00
Unavailable
46
HOOD 2
88E-21983-10-00
Unavailable
47
NUT, SPRING (26H)
90183-06023-00
Unavailable
48
BOLT, WITH WASHER
90119-06226-00
Unavailable
49
STAY, BELT
85L-77338-00-00
Unavailable
50
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
51
WASHER, PLATE (8M6)
90201-047A2-00
Unavailable
52
BRACKET 3
85L-2196F-00-00
Unavailable
53
BRACKET 4
85L-2196G-00-00
Unavailable
54
NUT, NYLON
95707-05300-00
Unavailable
55
. WASHER, PLAIN
92990-05200-00
Unavailable
56
BOLT, WING (36F)
90122-06020-00
Unavailable
57
WASHER, PLATE
90201-06020-00
Unavailable
58
WASHER, PLATE 1412342700
90202-06008-00
Unavailable
59
BOLT, WITH WASHER
90119-06226-00
Unavailable
60
BUSH, RUBBER 1
85L-77515-00-00
Unavailable
61
BUSH, RUBBER 2
85L-77516-00-00
Unavailable
62
RIVET(81E)
90269-05055-00
Unavailable
63
PROTECTOR 1
85L-77551-00-00
Unavailable
64
PROTECTOR 2
85L-77552-00-00
Unavailable
65
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
66
NUT, NYLON
95707-05300-00
Unavailable
67
HOLDER, LATCH
8V0-77175-00-00
Unavailable
68
PLATE
4U5-2176E-00-00
Unavailable
69
ORNAMENT 1
8BE-77163-00-00
Unavailable
70
ORNAMENT 2
8BE-77164-00-00
Unavailable
71
EMBLEM 3
8BE-77353-00-00
Unavailable
72
EMBLEM 4
8BE-77354-00-00
Unavailable
73
EMBLEM, YAMAHA
99246-00120-00
Unavailable
74
LABEL, CAUTION
87D-1417E-00-00
Unavailable
75
DAMPER, NOISE 12
85L-77272-00-00
Unavailable
76
DAMPER, NOISE 13
85L-77273-00-00
Unavailable
77
TAPE 3
85L-7717G-01-00
Unavailable
78
TAPE 4
85L-7717H-01-00
Unavailable
79
REFLECTOR ASSEMBLY
81E-85110-00-00
Unavailable
80
BASE, REFLECTOR 2
85L-8511E-00-00
Unavailable
81
BASE, REFLECTOR 3
85L-8511F-00-00
Unavailable
82
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
