Description

Price

1

COVER, OIL PUMP

85L-15416-00-00

Unavailable

2

OIL SEAL (J10)

93101-10090-00

$8.49

3

METAL, WORM SHAFT OUTER

821-13176-00-00

$17.49

4

SHAFT, WORM

85L-13175-00-00

Unavailable

5

GEAR, DRIVE (59T)

8R4-13188-00-00

Unavailable

6

PLATE, CAM THRUST

137-13148-00-00

Unavailable

7

WASHER, WAVE (137)

90206-11016-00

Unavailable

8

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

9

CIRCLIP(10W)

99009-10400-00

$4.73

10

PIN,DOWEL (137)

93603-22028-00

$3.76

11

COVER, OIL PUMP 2

85L-15426-02-00

Unavailable

12

OIL SEAL (8V0)

93104-52079-00

$14.99

13

SCREW, PAN HEAD

98580-06016-00

Unavailable

14

PIN, DOWEL

91810-18022-00

Unavailable

15

BOLT, FLANGE

95817-06035-00

$7.49

16

BOLT, FLANGE

95822-06025-00

Unavailable

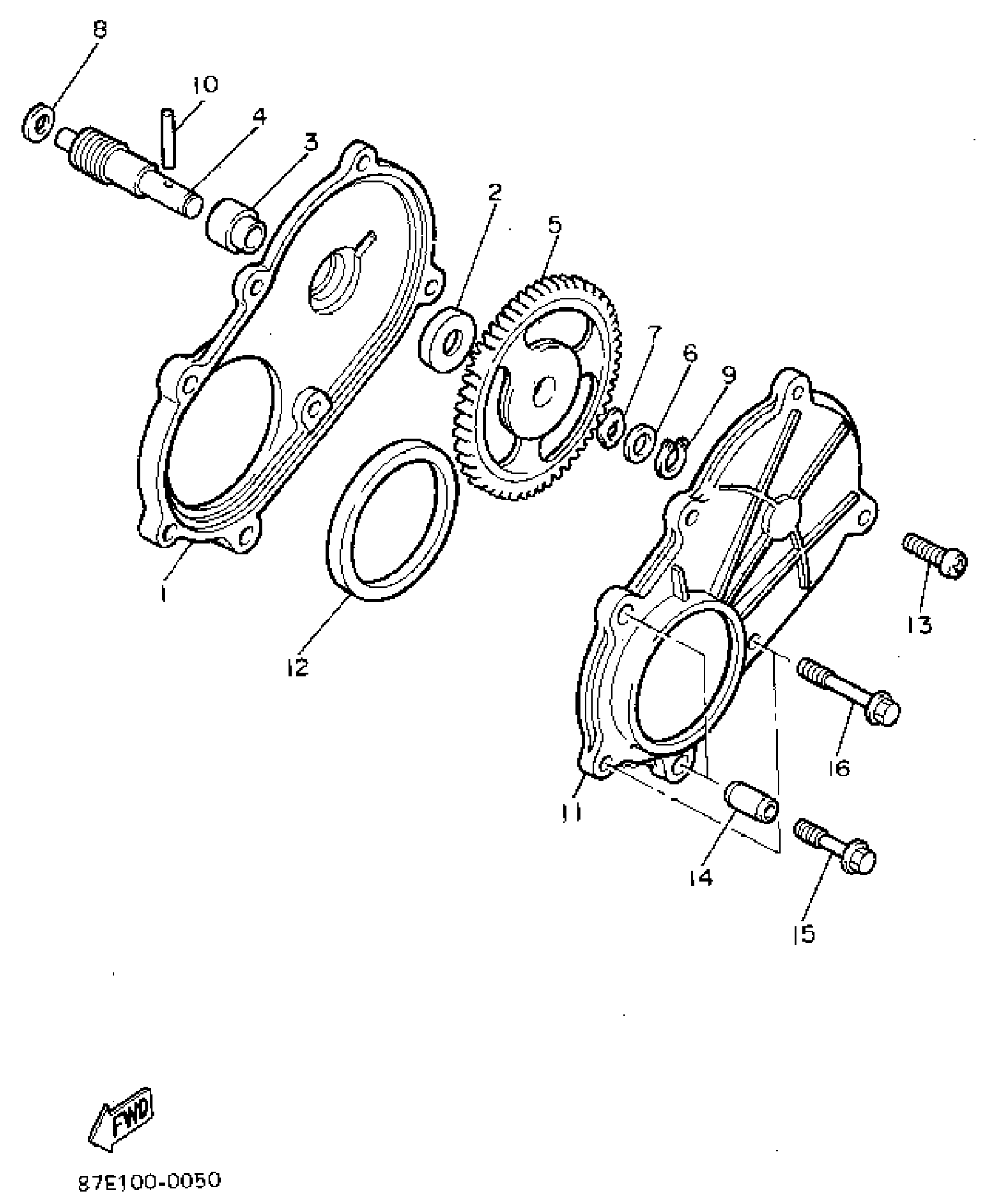

Yamaha CS340EU (OVATION LE) 1994 PUMP DRIVE GEAR Diagram

COVER, OIL PUMP

OIL SEAL (J10)

METAL, WORM SHAFT OUTER

SHAFT, WORM

GEAR, DRIVE (59T)

PLATE, CAM THRUST

WASHER, WAVE (137)

WASHER, PLATE (1E7)

CIRCLIP(10W)

PIN,DOWEL (137)

COVER, OIL PUMP 2

OIL SEAL (8V0)

SCREW, PAN HEAD

PIN, DOWEL

BOLT, FLANGE

BOLT, FLANGE
