Description

Price

1

SPEEDOMETER ASSEMBLY (MILE/H)

85N-83510-40-00

Unavailable

2

SOCKET CORD ASSY

5E2-83509-20-00

$28.99

3

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

4

SPEEDOMETER CABLE ASSEMBLY

85N-83550-01-00

Unavailable

5

COVER, METER

87D-83559-00-00

Unavailable

6

SCREW, BIND

98903-05016-00

Unavailable

7

SCREW, TAPPING(53L)

90167-05030-00

$8.49

8

SCREW, WITH WASHER

90159-05137-00

Unavailable

9

NUT, SPRING

90183-051A0-00

$3.81

10

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

11

TACHOMETER ASSY

85L-83540-00-00

$335.99

12

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

13

NUT, HEXAGON (663)

95380-05600-00

$8.49

14

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

15

PANEL, TACHOMETER 2

85N-8354E-00-00

Unavailable

16

SCREW, BINDING

98907-06010-00

Unavailable

17

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

18

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

19

METER GEAR HOUSING COMP

8Y1-47700-00-00

Unavailable

20

JOINT

8K4-47715-00-00

Unavailable

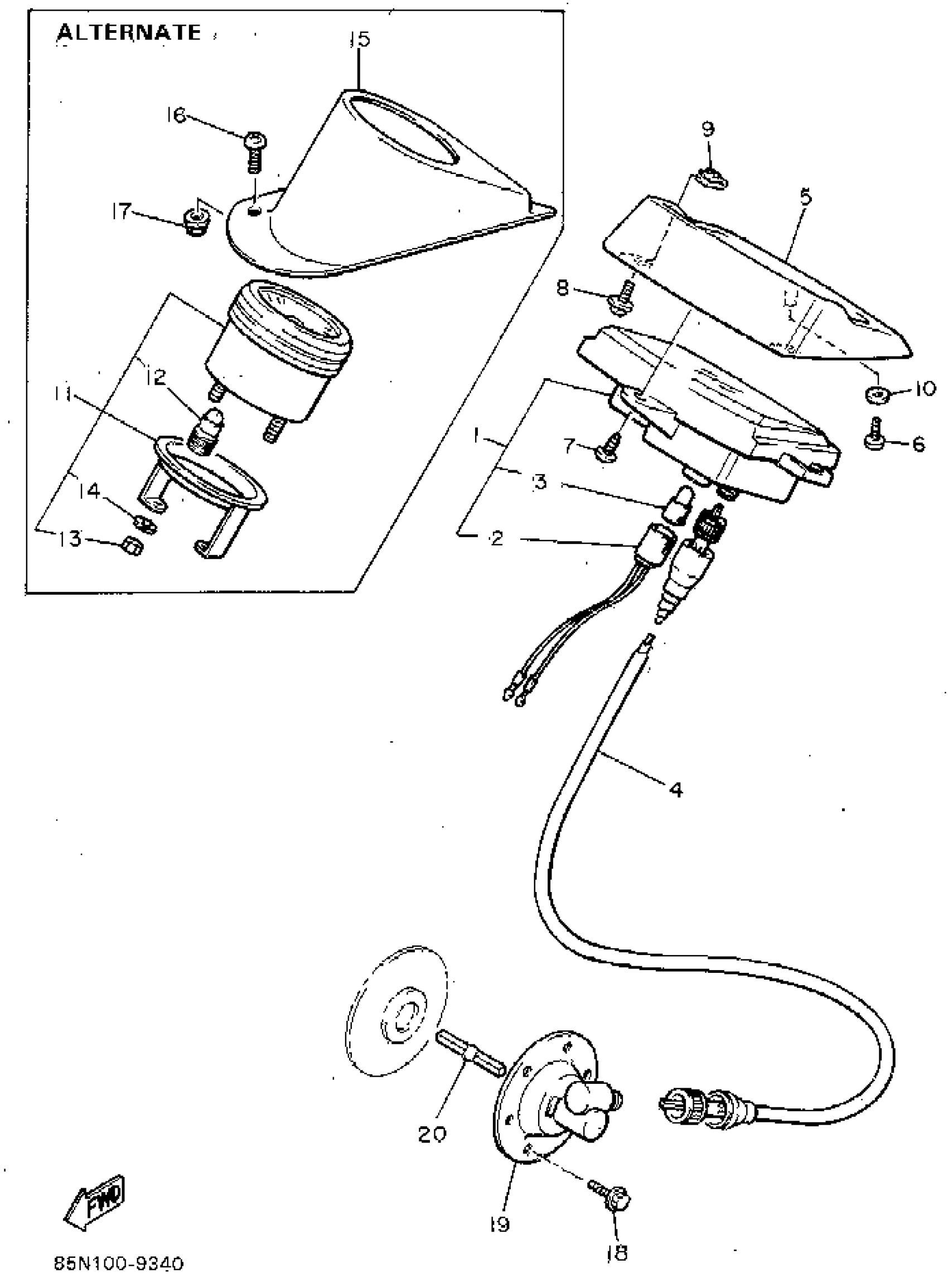

Yamaha CS340EU (OVATION LE) 1994 METER Diagram

SPEEDOMETER ASSEMBLY (MILE/H)

SOCKET CORD ASSY

BULB, MTR.12V3.4W

SPEEDOMETER CABLE ASSEMBLY

COVER, METER

SCREW, BIND

SCREW, TAPPING(53L)

SCREW, WITH WASHER

NUT, SPRING

WASHER, PLATE (8J0)

TACHOMETER ASSY

BULB, MTR.12V3.4W

NUT, HEXAGON (663)

YBS67-5 WASHER, SPRING

PANEL, TACHOMETER 2

SCREW, BINDING

NUT, FLANGE(4MV)

BOLT, FLANGE(JN5)

METER GEAR HOUSING COMP

JOINT
