Yamaha CS340ET (OVATION LE) 1993 SHROUD Diagram
#
1

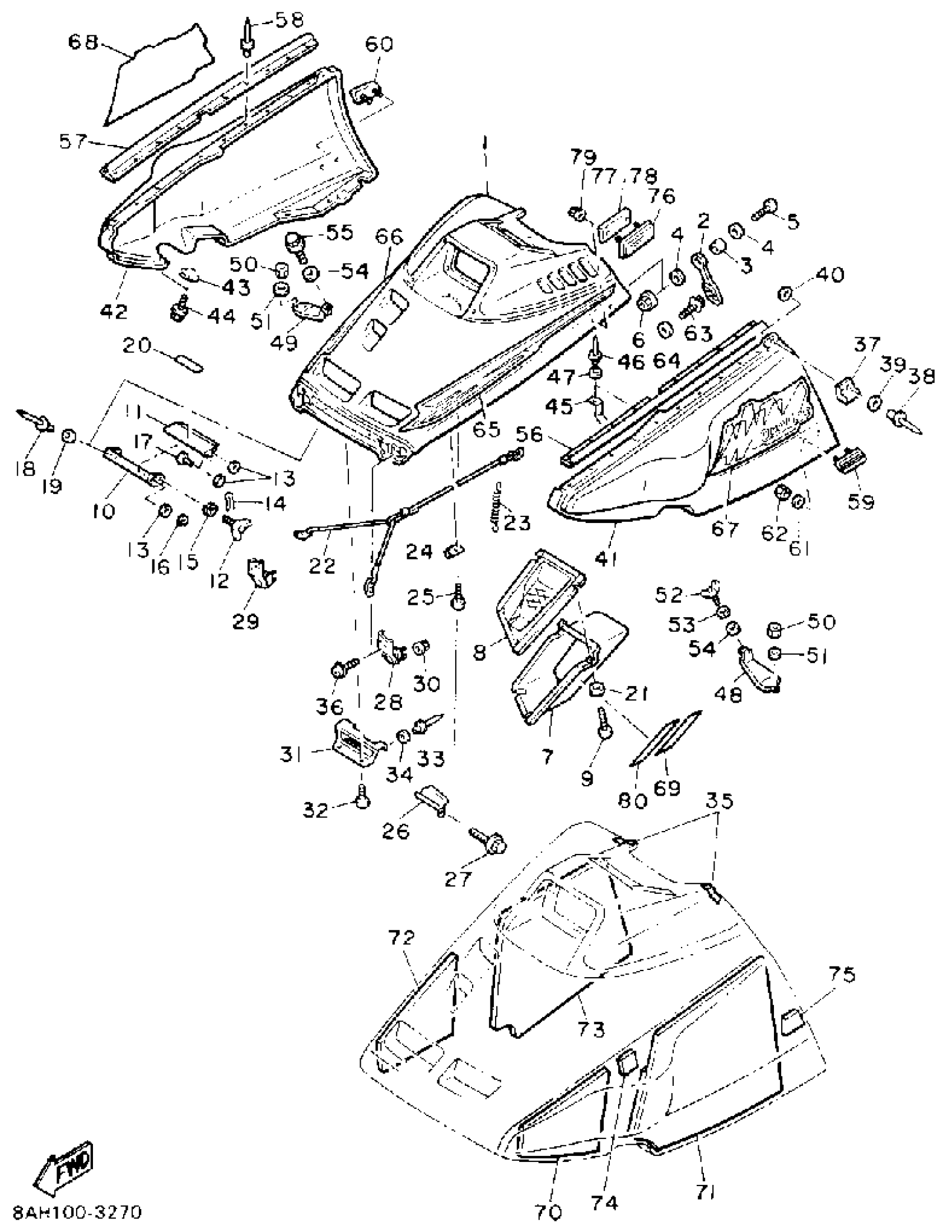

SHROUD ASSEMBLY
88E-Y7711-10-00
Unavailable
2
BODY, LATCH 1
8V0-77171-00-00
$21.99
3
COLLAR (420)
90387-06241-00
$8.49
4
WASHER, PLATE 8221447500
90201-06057-00
$5.60
5
SCREW, BINDING
98907-06025-00
$8.49
6
NUT, FLANGE(7NB)
95780-06500-00
$2.60
7
DUCT
85L-77194-00-00
Unavailable
8
PROTECTOR 3
85L-77553-00-00
Unavailable
9
SCREW, TAPPING(4MV)
97707-50016-00
$2.19
10
STAY 1
85L-77125-01-00
Unavailable
11
STAY 3
85L-77127-01-00
Unavailable
12
BOLT, WING(8W1)
90122-05022-00
$7.49
13
. WASHER, PLATE
90202-05088-00
Unavailable
14
PIN, HAIR 6474123500
90468-10003-00
$1.96
15
WASHER(3SX)
92907-05100-00
$8.49
16
CIRCLIP (EU0)
99080-04600-00
Unavailable
17
PIN
90249-05136-00
Unavailable
18
RIVET (856)
90267-48014-00
Unavailable
19
WASHER, PLATE
90201-04027-00
Unavailable
20
LABEL,WARNING 2
8BE-77762-00-00
Unavailable
21
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
22
STOPPER,SHROUD
89X-77118-00-00
Unavailable
23
CLAMP, ROD
80L-77159-00-00
Unavailable
24
CLAMP(83R)
90461-08113-00
Unavailable
25
SCREW, TRUSS TAP.
97707-50014-00
Unavailable
26
PLATE 1
85L-77185-00-00
Unavailable
27
BOLT, WITH WASHER (4L0)
90119-05059-00
Unavailable
28
HINGE ASSEMBLY
85L-77140-00-00
Unavailable
29
HINGE ASSEMBLY 2
85L-7714A-00-00
Unavailable
30
NUT, FLANGE(7NB)
95780-06500-00
$2.60
31
PROTECTOR 4
85L-77554-00-00
Unavailable
32
SCREW, TRUSS TAP.
97707-50014-00
Unavailable
33
RIVET (856)
90267-48014-00
Unavailable
34
WASHER, PLATE (34L)
90201-043H7-00
Unavailable
35
DAMPER, SHROUD
85L-77196-00-00
Unavailable
36
SCREW, W/WASHER (4L0)
90159-06060-00
Unavailable
37
STOPPER
85L-77188-00-00
Unavailable
38
RIVET, BLIND (8M6)
90267-48051-00
Unavailable
39
WASHER, SPECIAL
85L-77116-00-00
Unavailable
40
WASHER, PLATE
90201-04027-00
Unavailable
41
HOOD 1
88E-21982-10-00
Unavailable
42
HOOD 2
88E-21983-10-00
Unavailable
43
NUT, SPRING (26H)
90183-06023-00
Unavailable
44
BOLT, WITH WASHER
90119-06226-00
Unavailable
45
STAY, BELT
85L-77338-00-00
Unavailable
46
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
47
WASHER, PLATE (8M6)
90201-047A2-00
Unavailable
48
BRACKET 3
85L-2196F-00-00
Unavailable
49
BRACKET 4
85L-2196G-00-00
Unavailable
50
NUT, NYLON
95707-05300-00
Unavailable
51
. WASHER, PLAIN
92990-05200-00
Unavailable
52
BOLT, WING (36F)
90122-06020-00
Unavailable
53
WASHER, PLATE
90201-06020-00
Unavailable
54
WASHER, PLATE 1412342700
90202-06008-00
Unavailable
55
BOLT, WITH WASHER
90119-06226-00
Unavailable
56
BUSH, RUBBER 1
85L-77515-00-00
Unavailable
57
BUSH, RUBBER 2
85L-77516-00-00
Unavailable
58
RIVET(81E)
90269-05055-00
Unavailable
59
PROTECTOR 1
85L-77551-00-00
Unavailable
60
PROTECTOR 2
85L-77552-00-00
Unavailable
61
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
62
NUT, NYLON
95707-05300-00
Unavailable
63
HOLDER, LATCH
8V0-77175-00-00
Unavailable
64
PLATE
4U5-2176E-00-00
Unavailable
65
ORNAMENT 1
8AH-77163-00-00
Unavailable
66
ORNAMENT 2
8AH-77164-00-00
Unavailable
67
EMBLEM 3
8AH-77353-00-00
Unavailable
68
EMBLEM 4
8AH-77354-00-00
Unavailable
69
LABEL, CAUTION
87D-1417E-00-00
Unavailable
70
LINING, SHROUD 4
85L-77264-00-00
Unavailable
71
LINING, SHROUD 5
85L-77265-00-00
Unavailable
72
DAMPER, NOISE 12
85L-77272-00-00
Unavailable
73
DAMPER, NOISE 13
85L-77273-00-00
Unavailable
74
TAPE 3
85L-7717G-01-00
Unavailable
75
TAPE 4
85L-7717H-01-00
Unavailable
76
REFLECTOR ASSEMBLY
81E-85110-00-00
Unavailable
77
BASE, REFLECTOR 2
85L-8511E-00-00
Unavailable
78
BASE, REFLECTOR 3
85L-8511F-00-00
Unavailable
79
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
80
LABEL 1
8Y7-47578-00-00
Unavailable
