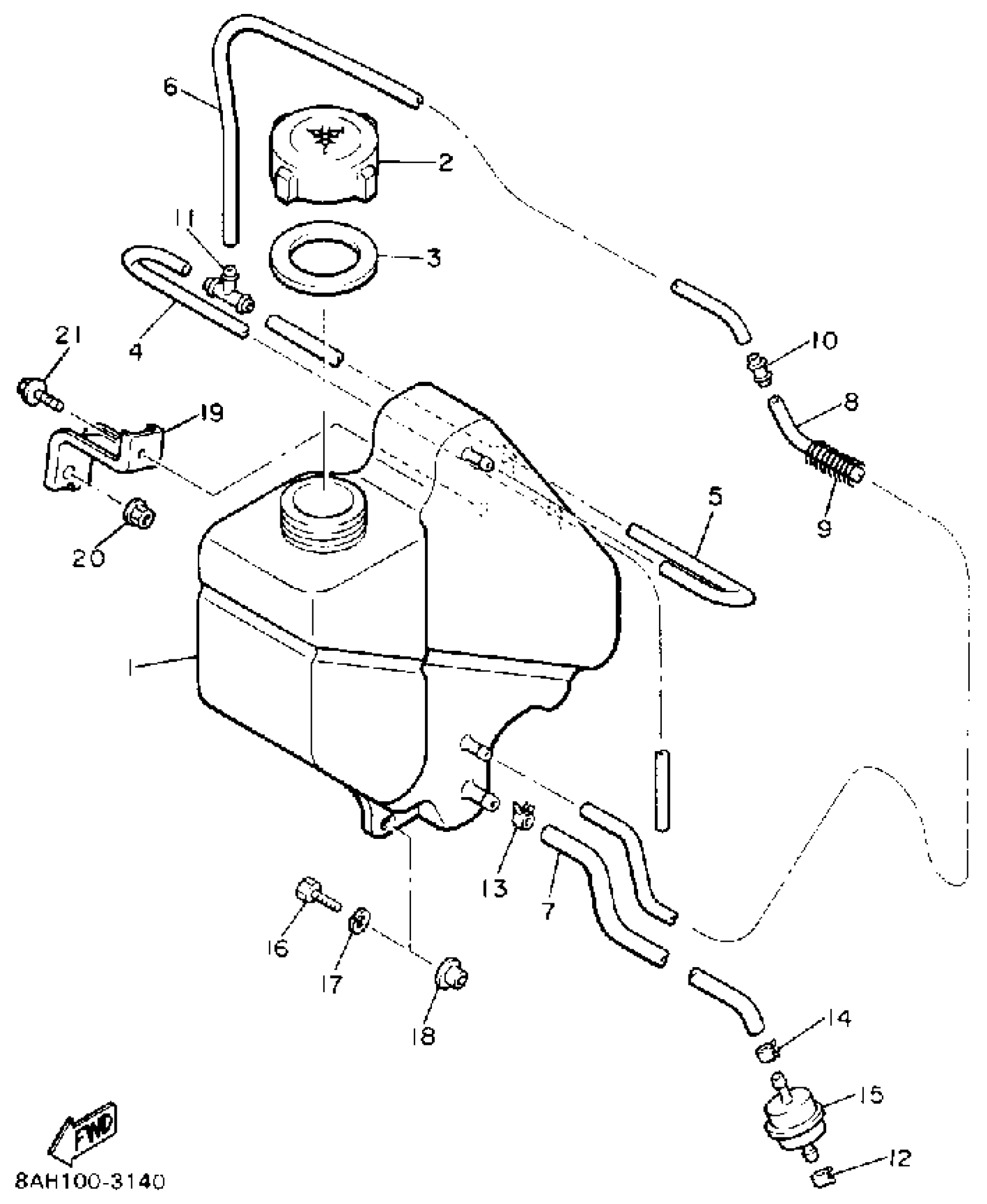

Yamaha CS340ET (OVATION LE) 1993 OIL TANK Diagram
#
Description
Price
1
TANK, OIL
85L-21751-03-00
Unavailable
7
HOSE
91A30-07036-00
Unavailable
8
TUBE, FLEXIBLE VINYL(8AT)
91A30-05125-00
Unavailable
9
SPRG., COMPRESSION (8BY1)
90501-083J9-00
Unavailable
10
PIPE, JOINT
8H8-24376-00-00
Unavailable
11
PIPE, JOINT
801-24376-00-00
Unavailable
13
CLIP
90467-11028-00
Unavailable
16
BOLT, HEXAGON
97017-06020-00
Unavailable
17
WASHER, SPRING
92995-06100-00
Unavailable
18
COLLAR (8G8)
90387-06681-00
Unavailable
19
BRACKET, OIL TANK 2
85L-2193F-00-00
Unavailable
20
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
21
BOLT, FLANGE
95817-06012-00
Unavailable
