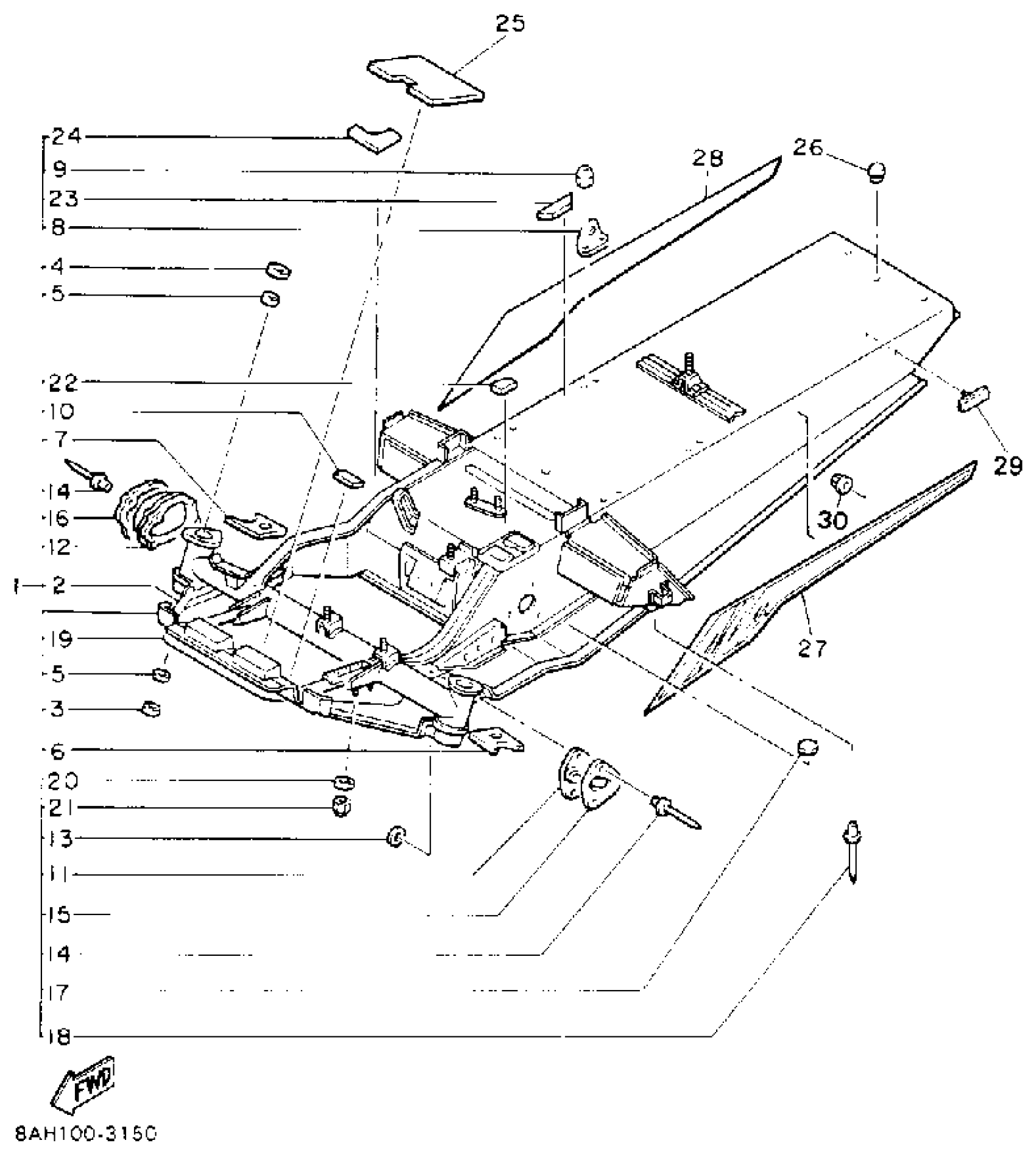

Yamaha CS340ET (OVATION LE) 1993 FRAME Diagram
#
1
FRAME
89S-21910-00-00
Unavailable
2
PANEL,SUB FRAME 1
87E-21912-00-00
Unavailable
3
. OIL SEAL
93103-44134-00
Unavailable
4
. OIL SEAL
93104-44095-00
Unavailable
5
. BUSH, BIMETAL FORMED
90384-44173-00
Unavailable
6
. TAPE 1
85L-7717E-00-00
Unavailable
7
. TAPE 2
85L-7717F-00-00
Unavailable
8
. BRACKET, SEAT FITTING
8V0-21946-00-00
Unavailable
9
NUT, NYLON
95707-06300-00
$3.50
10
TAPE, 5
85L-7717J-00-00
Unavailable
11
. COVER 1
80L-2198F-00-00
Unavailable
12
. COVER 2
80L-2198G-00-00
Unavailable
13
WASHER, PLATE
90201-04027-00
$3.02
14
RIVET, BLIND
90267-40029-00
$8.49
15
. WASHER 1
80L-77525-00-00
Unavailable
16
. WASHER 2
80L-77526-00-00
Unavailable
17
SPACER
80F-21998-00-00
Unavailable
18
RIVET, BLIND
90267-48018-00
Unavailable
19
. BUMPER, FRONT 2
85L-77512-00-00
Unavailable
20
WASHER, PLATE (3Y6)
90201-083A6-00
Unavailable
21
NUT, NYLON
95717-08300-00
Unavailable
22
. DAMPER
85L-14409-00-00
Unavailable
23
. SHIELD, NOISE 2
85L-2199J-00-00
Unavailable
24
DAMPER, SHROUD
85L-77196-00-00
Unavailable
25
SHIELD, HEAT
85L-2199H-00-00
Unavailable
26
ORNAMENT, INSTRUMENT PANEL 2
810-77716-00-00
Unavailable
27
EMBLEM 1
8AH-77351-00-00
Unavailable
28
EMBLEM 2
8AH-77352-00-00
Unavailable
29
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
30
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
