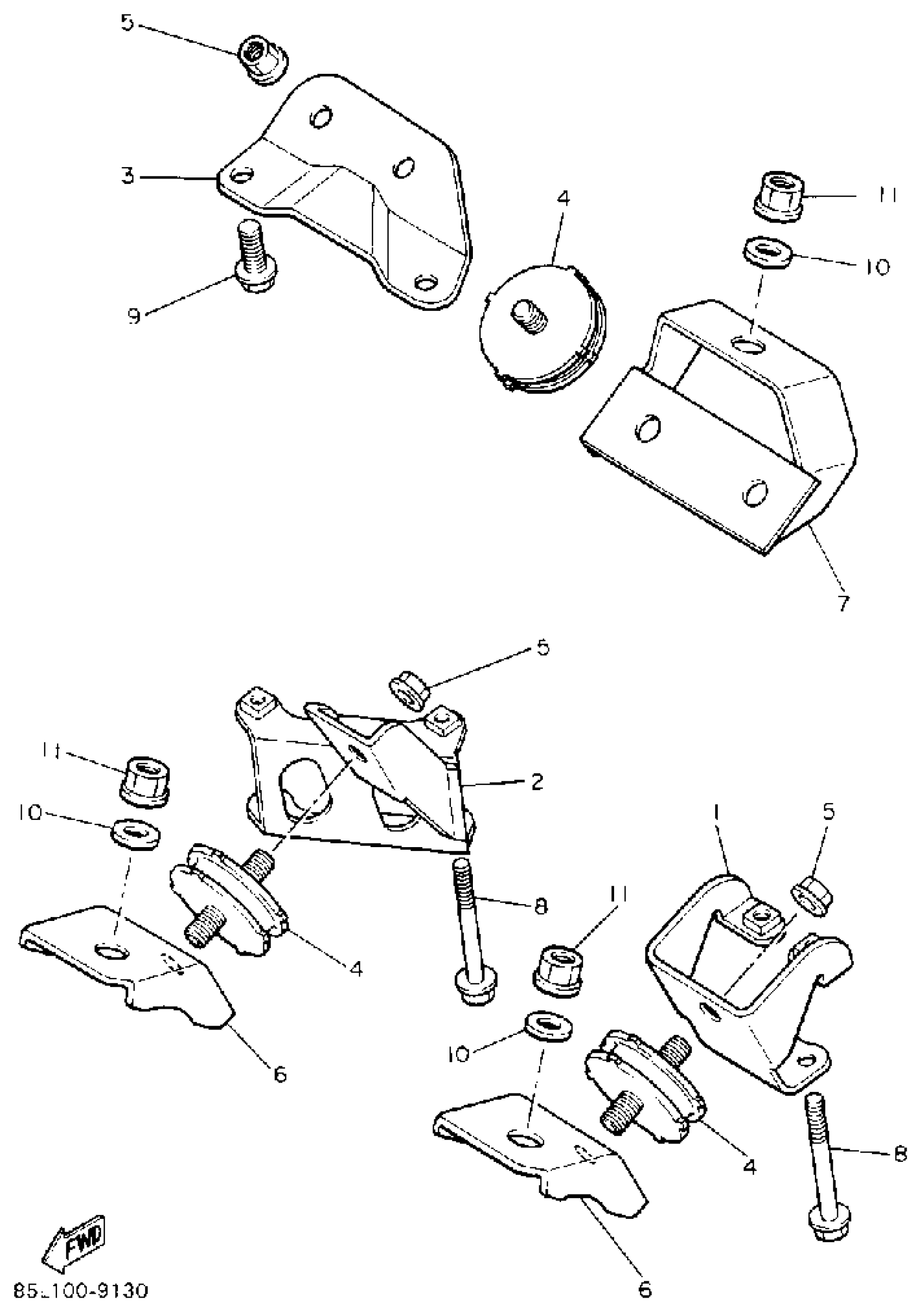

Yamaha CS340ET (OVATION LE) 1993 ENGINE BRACKET Diagram

#

Description
Price

1

BRACKET, ENGINE 1

85L-21411-00-00

Unavailable

2

BRACKET, ENGINE 2

85L-21419-00-00

Unavailable

3

BRACKET, ENGINE 3

85L-21429-00-00

$31.99

4

DAMPER 2

8N8-21486-00-00

Unavailable

5

NUT, FLANGE(3BM)

95704-10500-00

$4.29

6

BRACKET, FRONT LOWER 1

85L-21417-00-00

Unavailable

7

BRACKET, REAR LOWER 1

85L-21427-00-00

Unavailable

8

BOLT, FLANGE(JN5)

95817-08070-00

$3.76

9

BOLT, FLANGE(3GD)

95817-10025-00

$8.49

10

WASHER, PLATE (856)

90201-10321-00

$8.49

11

NUT, FLANGE(3BM)

95704-10500-00

$4.29
