- CS340ET (OVATION LE) 1993
ELECTRICAL 1

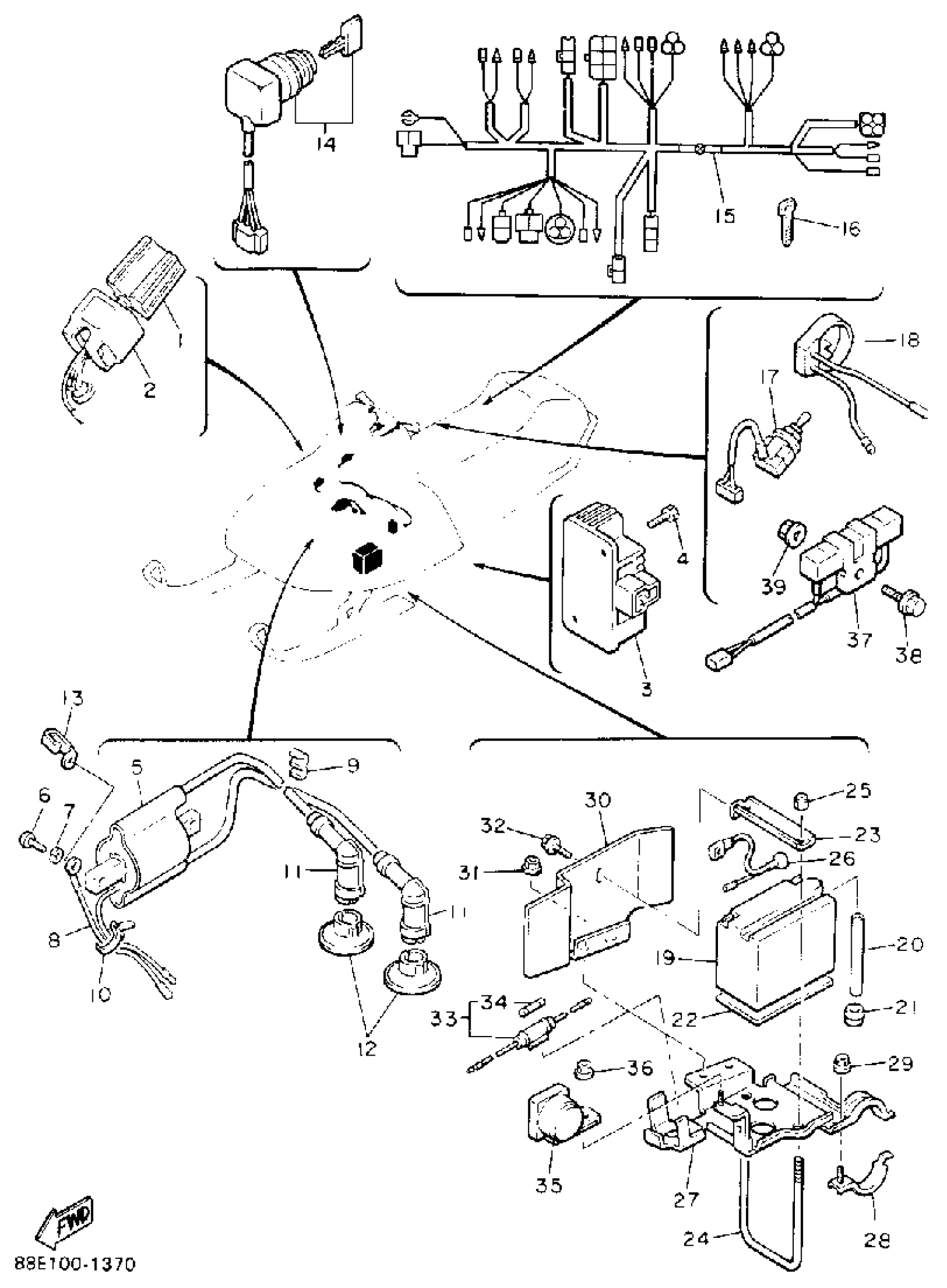

Yamaha CS340ET (OVATION LE) 1993 ELECTRICAL 1 Diagram
#
1
C.D.I. UNIT ASSEMBLY
81E-85540-M0-00
Unavailable
2
BAND
2A7-85546-00-00
Unavailable
3
RECTIFIER & REGULATOR ASSY
22J-81960-92-00
Unavailable
4
BOLT(4GV)
97017-05012-00
$8.49
5
IGNITION COIL ASSY
85T-82310-06-00
$79.99
6
SCREW PAN HEAD
98580-06020-00
$8.49
7
WASHER, SPRING
92995-06100-00
Unavailable
8
WIRE, SUB-LEAD
87D-82318-00-00
Unavailable
9
CLAMP, CORD
861-82361-00-00
Unavailable
10
CLAMP
90465-08028-00
Unavailable
11
PLUG CAP ASSY
85G-82370-20-00
$34.99
12
SEAL
8G5-82372-00-00
$5.60
13
CLAMP(51Y)
90465-08277-00
Unavailable
14
MAIN SWITCH ASSY
8K1-82510-21-00
Unavailable
15
WIRE HARNESS ASSEMBLY
88E-82590-00-00
Unavailable
16
BAND
341-26397-01-00
Unavailable
17
SWITCH
88H-82917-00-00
Unavailable
18
WIRE, SUB-LEAD
80X-82318-00-00
Unavailable
19
YB14LA2 YUASA BATTERY
YB1-4LA20-00-00
Unavailable
20
HOSE (L340)
90445-08684-00
Unavailable
21
GROMMET(3AA)
90480-12497-00
Unavailable
22
. SEAT, BATTERY
82L-82122-00-00
Unavailable
23
PLATE, BATTERY FITTING
85N-82136-00-00
Unavailable
24
. SCREW, FITTING
8J4-82133-00-00
Unavailable
25
NUT, NYLON
95707-06300-00
Unavailable
26
. WIRE, PLUS LEAD
89X-82115-00-00
Unavailable
27
BRACKET,BATTERY
85N-2199G-01-00
Unavailable
28
PLATE, BATTERY FITTING
8V0-82136-00-00
Unavailable
29
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
30
. SHIELD, HEAT
85N-2199H-00-00
Unavailable
31
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
32
BOLT, FLANGE
95812-06010-00
Unavailable
33
FUSE HOLDER ASSY
1E6-82150-00-00
Unavailable
34
FUSE (10A)
1E6-82151-00-00
Unavailable
35
. STARTER RELAY ASSY
8J9-81940-10-00
Unavailable
36
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
37
RESISTOR ASSEMBLY
88T-85370-00-00
Unavailable
38
BOLT, FLANGE
95817-06012-00
Unavailable
39
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
