- CS340ET (OVATION LE) 1993
AIR CLEANER

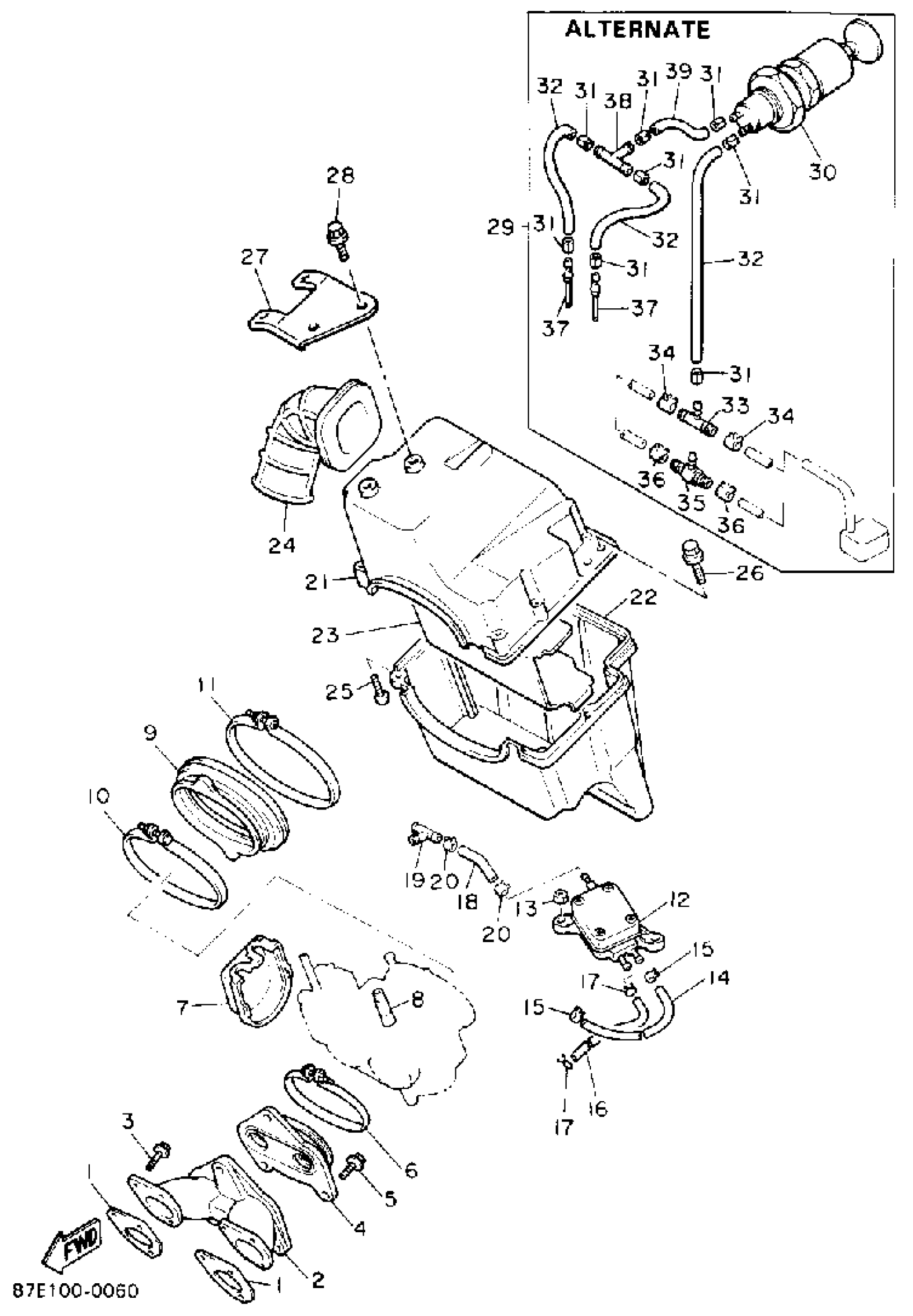

Yamaha CS340ET (OVATION LE) 1993 AIR CLEANER Diagram
#
1
GASKET
8Y2-13563-02-00
$9.49
2
JOINT, CARBURETOR
85L-13565-00-00
Unavailable
3
BOLT, FLANGE
95817-06020-00
$3.81
4
MANIFOLD, INTAKE
89X-13555-00-00
$100.99
5
BOLT, FLANGE(4LN)
95817-08025-00
$8.49
6
HOSE CLAMP ASSY
90450-25026-00
Unavailable
7
CAP, CARBURETOR
85L-14471-00-00
Unavailable
8
BOOT
8J5-26352-00-00
Unavailable
9
JOINT, AIR CLEANER 1
85L-14453-00-00
Unavailable
10
HOSE CLAMP ASSY
90450-25027-00
Unavailable
11
HOSE CLAMP ASSY
90450-25028-00
Unavailable
12
FUEL PUMP ASSY
85L-24410-00-00
Unavailable
13
NUT, NYLON
95707-06300-00
$3.50
14
TUBE, FLEXIBLE VINYL(8AU)
91A20-05039-00
$2.22
15
CLIP (8A1)
90467-09026-00
$3.28
16
HOSE (L450)
90445-10144-00
Unavailable
17
CLIP
90467-090A2-00
Unavailable
18
TUBE, FLEXIBLE VINYL
91A20-07006-00
Unavailable
19
PIPE, JOINT
815-24379-00-00
Unavailable
20
CLIP
90467-11028-00
Unavailable
21
SILENCER, INTAKE 1
87D-14431-00-00
Unavailable
22
SILENCER, INTAKE 2
85L-14441-00-00
Unavailable
23
PLATE
87D-14477-00-00
Unavailable
24
PIPE, SUCTION 1
87D-14423-00-00
Unavailable
25
YBS83-525 SCREW,PANH.TAPPING
97780-50125-00
Unavailable
26
BOLT, WITH WASHER(8V7)
90119-06108-00
Unavailable
27
STAY 1
87D-14493-00-00
Unavailable
28
BOLT, FLANGE
95817-06012-00
Unavailable
29
PRIMER PUMUP KIT
85L-W2431-00-00
Unavailable
30
PRIMER PUMP ASSY
8X8-24360-01-00
Unavailable
31
CLIP(42X)
90467-07093-00
Unavailable
32
TUBE, FLEXIBLE VINYL(8AE)
91A20-03130-00
Unavailable
33
PIPE, JOINT
815-24379-00-00
Unavailable
34
CLIP (8J7)
90467-11009-00
Unavailable
35
WAY 3 (8U0)
90413-05011-00
Unavailable
36
CLIP (8A1)
90467-09026-00
$3.28
37
. NOZZLE
8U0-13552-00-00
Unavailable
38
. JOINT
8H0-24379-00-00
Unavailable
39
. TUBE, FLEXIBLE VINYL
91A20-03033-00
Unavailable
