- CS340ES (OVATION LE) 1992
TRACK SUSPENSION 1

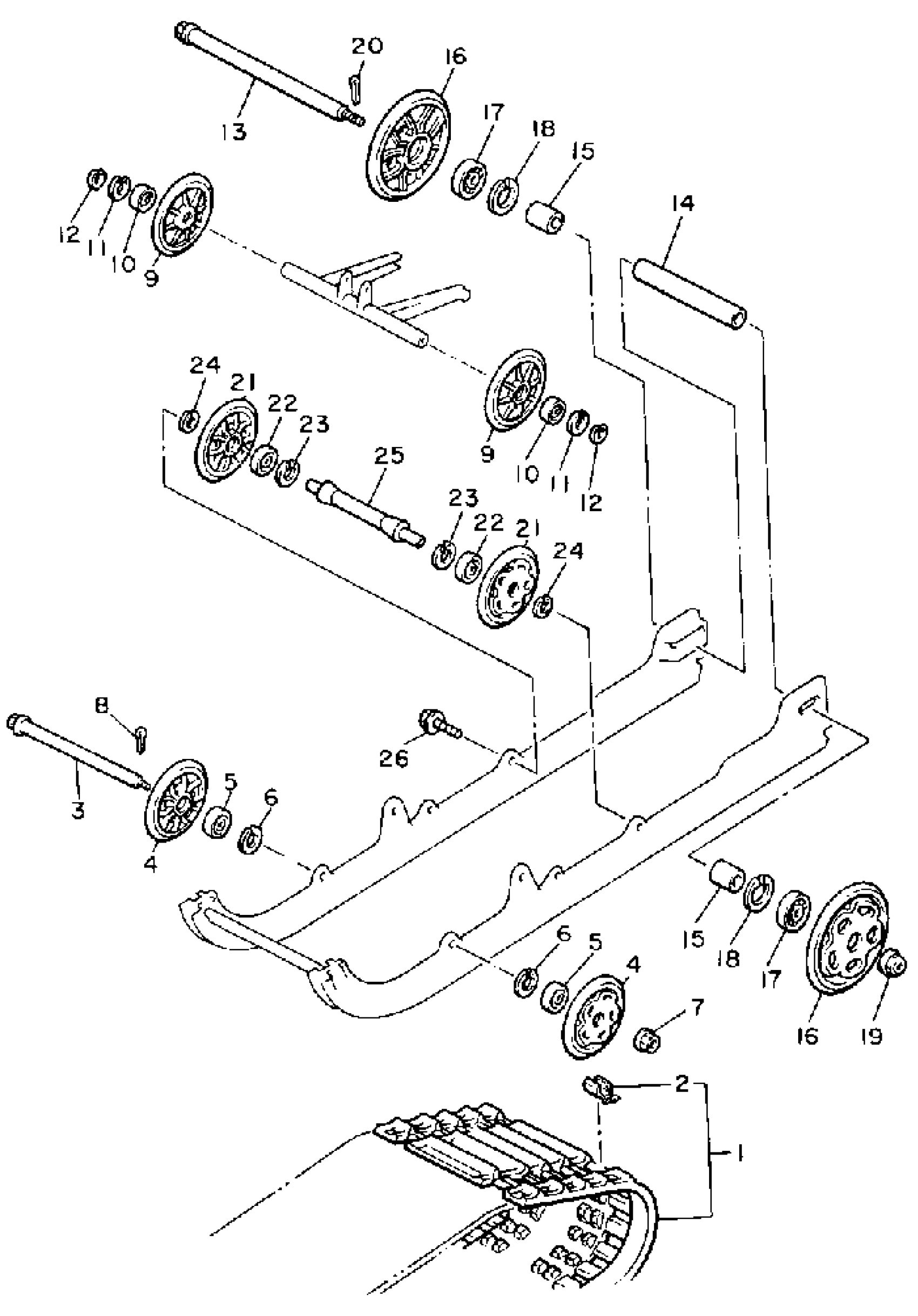

Yamaha CS340ES (OVATION LE) 1992 TRACK SUSPENSION 1 Diagram
#
Description
Price
1
TRACK ASY
8J6-47110-02-00
Unavailable
2
METAL, SLIDE
8A5-47115-00-00
Unavailable
3
SHAFT 5 (80X-47487-00-00)
90891-50061-00
Unavailable
4
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
5
BEARING(8AB)
93306-00444-00
$41.99
6
CIRCLIP(5U8)
99009-42500-00
$8.49
7
NUT, SELF-LOCKING (8BF)
95607-14200-00
$12.49
8
PIN, COTTER
91490-30030-00
$8.49
9
SUSPENSION WHEEL COMP
885-47320-01-00
$72.99
10
BEARING(8AB)
93306-00444-00
$41.99
11
CIRCLIP(5U8)
99009-42500-00
$8.49
12
CIRCLIP(1AR)
99009-20400-00
$8.49
13
REAR AXLE COMP.
8L8-47520-02-00
$89.99
14
COLLAR
90387-200M8-00
Unavailable
15
COLLAR
90387-20022-00
$24.99
16
GUIDE WHEEL COMP.
8K2-47530-00-00
Unavailable
17
BRG,R-B 62042RS 47MM 110G KY
93306-20417-00
Unavailable
18
CIRCLIP(48Y)
99009-47500-00
Unavailable
19
NUT, SELF-LOCKING (8BF)
95607-14200-00
$12.49
20
PIN, COTTER
91490-30030-00
$8.49
21
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
22
BEARING(8AB)
93306-00444-00
$41.99
23
CIRCLIP(5U8)
99009-42500-00
$8.49
24
CIRCLIP(1AR)
99009-20400-00
$8.49
25
SHAFT 6
8V0-47488-00-00
Unavailable
26
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
