Description

Price

1

SECONDARY SLIDING SHEAVE

85L-17670-01-00

$195.99

2

SHOE, RAMP

85L-17688-01-00

Unavailable

3

SHAFT, SECONDARY

85L-17681-00-00

Unavailable

4

SEAT, SECONDARY SPRING

85L-17684-00-00

Unavailable

5

CIRCLIP (8R4)

93440-25100-00

Unavailable

6

SPRING, TORSION

90508-45763-00

Unavailable

7

COLLAR(85L)

90387-260W3-00

$11.49

8

WASHER, PLATE (35T)

90201-122H1-00

$9.49

9

NUT, SELF LOCKING (23X)

90185-12119-00

$11.49

10

KEY, STRAIGHT (8R4)

90282-05047-00

$9.49

11

BEARING(83R)

93306-20582-00

$58.99

12

HOUSING, BEARING

85L-47631-00-00

Unavailable

13

PLATE 3

85L-17691-00-00

Unavailable

14

BOLT, HEXAGON

97017-08025-00

$10.49

15

WASHER, SPRING

92995-06100-00

Unavailable

16

CIRCLIP(26H)

99009-52500-00

Unavailable

17

SECONDARY FIXED SHEAVE COMP.

8R4-17660-00-00

Unavailable

18

COLLAR

90387-250V1-00

Unavailable

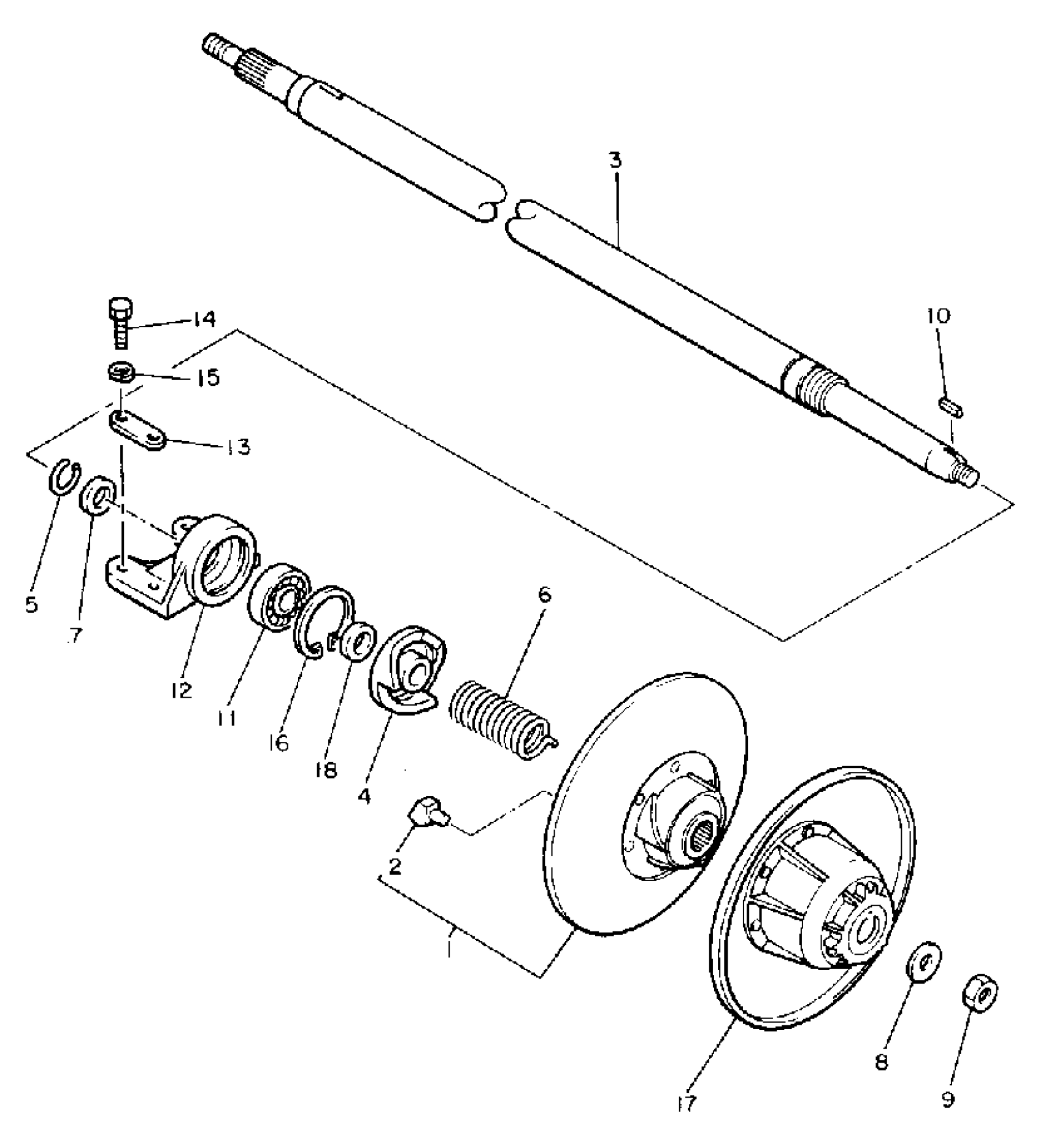

Yamaha CS340ES (OVATION LE) 1992 SECONDARY SHEAVE Diagram

SECONDARY SLIDING SHEAVE

SHOE, RAMP

SHAFT, SECONDARY

SEAT, SECONDARY SPRING

CIRCLIP (8R4)

SPRING, TORSION

COLLAR(85L)

WASHER, PLATE (35T)

NUT, SELF LOCKING (23X)

KEY, STRAIGHT (8R4)

BEARING(83R)

HOUSING, BEARING

PLATE 3

BOLT, HEXAGON

WASHER, SPRING

CIRCLIP(26H)

SECONDARY FIXED SHEAVE COMP.

COLLAR
