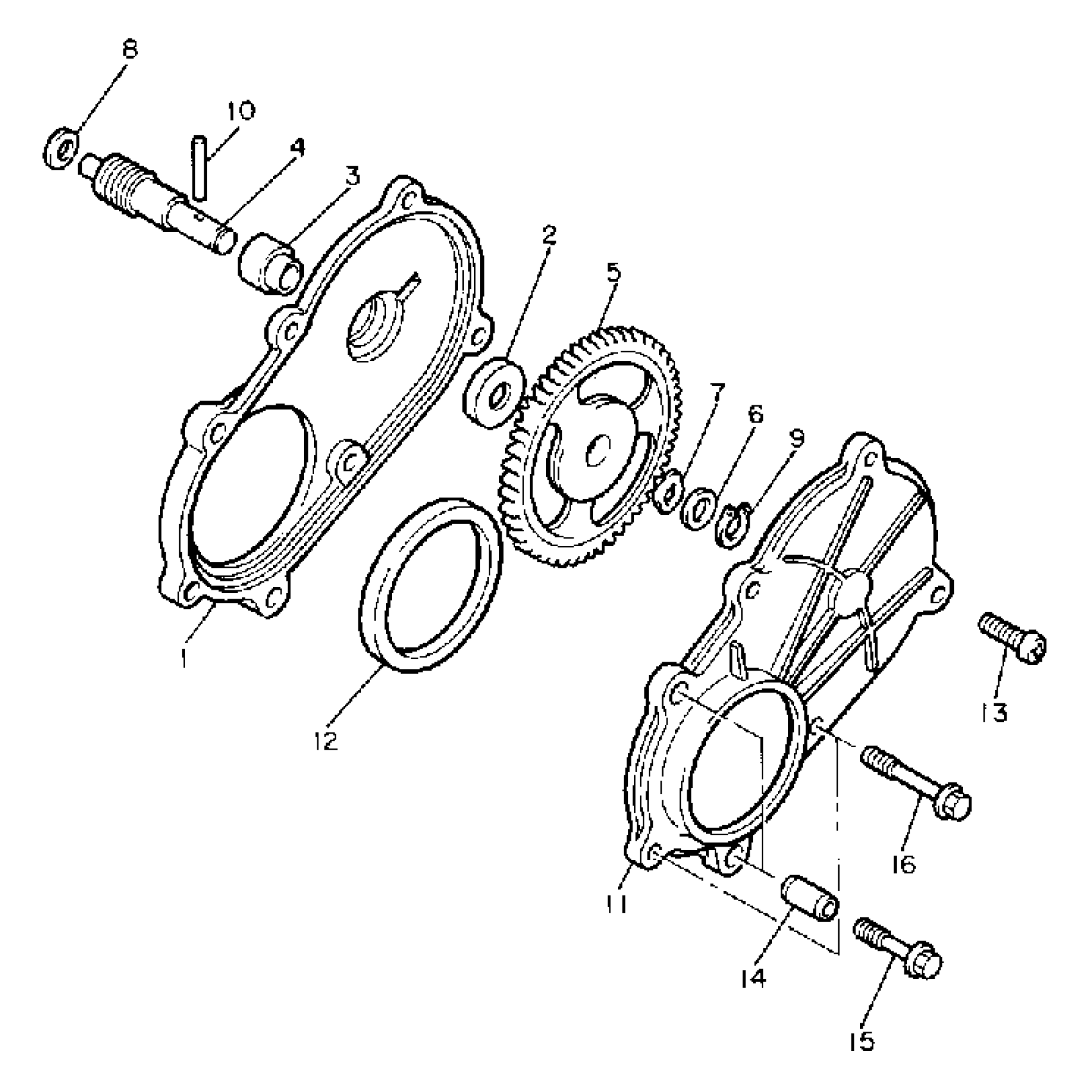

Yamaha CS340ES (OVATION LE) 1992 PUMP DRIVE GEAR Diagram

#

Description
Price

1

COVER, OIL PUMP

85L-15416-00-00

Unavailable

2

OIL SEAL (J10)

93101-10090-00

$5.87

3

METAL, WORM SHAFT OUTER

821-13176-00-00

$6.04

4

SHAFT, WORM

85L-13175-00-00

Unavailable

5

GEAR, DRIVE (59T)

8R4-13188-00-00

Unavailable

6

PLATE, CAM THRUST

137-13148-00-00

Unavailable

7

WASHER, WAVE (137)

90206-11016-00

Unavailable

8

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

9

CIRCLIP(10W)

99009-10400-00

$3.72

10

PIN,DOWEL (137)

93603-22028-00

$2.20

11

COVER, OIL PUMP 2

85L-15426-02-00

Unavailable

12

OIL SEAL (8V0)

93104-52079-00

$11.66

13

SCREW, PAN HEAD

98580-06016-00

$2.76

14

PIN, DOWEL

91810-18022-00

Unavailable

15

BOLT, FLANGE

95817-06035-00

$5.12

16

BOLT, FLANGE

95822-06025-00

Unavailable
