1992 Yamaha Ovation LE (CS340ES) Primary Sheave Diagram

← All diagrams

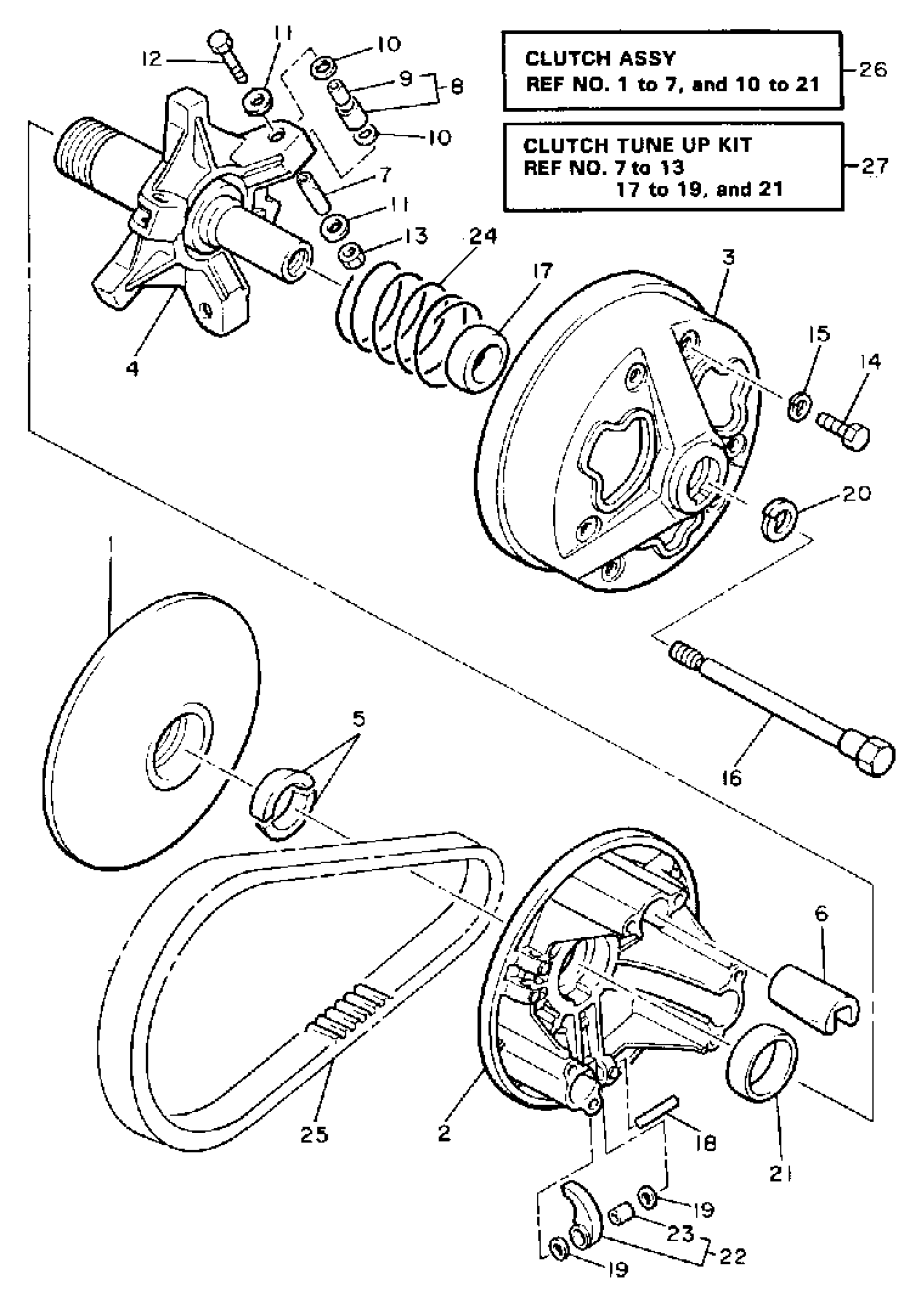

Find the part on the Primary Sheave diagram for your 1992 Yamaha Ovation LE (CS340ES), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha Ovation LE (CS340ES) Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHEAVE, PRIMARY FIXED

84J-17611-00-00

—

$70.98

In stock

2

. SHEAVE, PRIMARY SLIDING

8V0-17621-01-00

1
Out of stock

3

CAP

8V0-17631-00-00

—

$73.48

In stock

4

. SPIDER COMPLETE

8V0-17640-02-00

1
Out of stock

5

STOPPER

8V0-17639-00-00

1

$10.52

In stock

6

SLIDER

(88X-17653-10-00)

1
Out of stock

7

COLLAR(83R)

90387-057W5-00

1

$11.60

In stock

8

ROLLER, WITH BUSH

87M-W176B-10-00

1

$44.06

In stock

9

BUSH(83R)

90386-08166-00

1

$14.72

In stock

10

WASHER, PLATE(87G)

90202-08205-00

1
Out of stock

11

WASHER, PLATE(83R)

90201-050P9-00

1
Out of stock

12

BOLT, HEXAGON

97027-05035-00

—
Out of stock

13

NUT, U

95617-05100-00

1

$6.68

In stock

14

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

BOLT (L=156.5MM)

8V0-17647-10-00

—

$21.45

In stock

17

BUSH(83R)

90389-28032-00

—

$55.86

In stock

18

PIN, DOWEL (8V8)

93607-44190-00

—
Out of stock

19

WASHER, PLATE (8V8)

90201-077F5-00

—
Out of stock

20

WASHER(JN5)

92907-16100-00

—

$12.08

In stock

21

BUSH (81H)

90389-40029-00

—

$63.09

In stock

22

WEIGHT,WITH BUSH

85L-W176A-00-00

1
Out of stock

23

BUSH(83V)

90386-07152-00

—

$31.20

In stock

24

SPRING, COMPRESSION

90501-520A9-00

1
Out of stock

24

SPRING, COMPRESSION

90501-55485-00

1
Out of stock

24

SPRING, COMPRESSION

90501-554F6-00

1
Out of stock

25

V-BELT

820-17641-01-00

1

$33.66

In stock

26

CLUTCH REPAIR KIT

89X-17601-09-00

1
Out of stock

27

CLUTCH TUNE-UP KIT (K)

89X-00000-50-00

—

$251.97

In stock
