Description

Price

1

BUMPER, FRONT 1

88E-77511-00-00

Unavailable

2

SCREW, W/WASHER (4L0)

90159-06060-00

$8.49

3

BUMPER, REAR 1

85L-77541-00-00

Unavailable

4

BUMPER, REAR 2

8W6-77542-00-00

Unavailable

5

BUMPER, REAR 3

8W6-77543-00-00

Unavailable

6

BOLT, FLANGE

95817-08012-00

$5.49

7

SCREW, BIND(J50)

98980-08020-00

$2.65

8

WASHER, PLAIN

92990-08200-00

Unavailable

9

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

10

BOLT

8W6-77519-00-00

Unavailable

11

WASHER, PLAIN LARGE

92907-05200-00

$4.46

12

NUT, CAP

95307-05800-00

$7.49

13

FLAP

8V9-77595-00-00

Unavailable

14

RIVET, BLIND (8R6)

90267-48086-00

$4.14

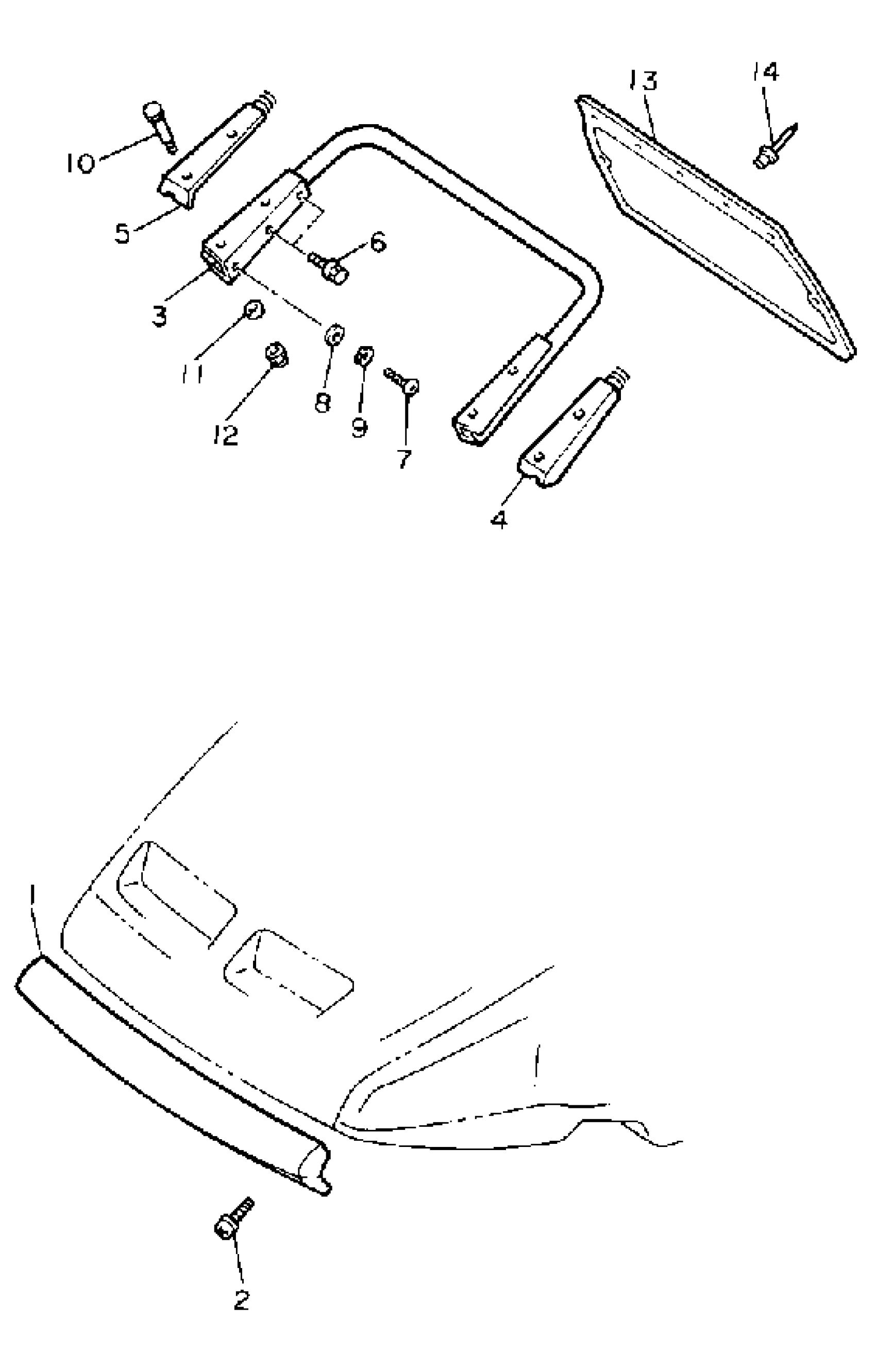

Yamaha CS340ES (OVATION LE) 1992 BUMPER Diagram

BUMPER, FRONT 1

SCREW, W/WASHER (4L0)

BUMPER, REAR 1

BUMPER, REAR 2

BUMPER, REAR 3

BOLT, FLANGE

SCREW, BIND(J50)

WASHER, PLAIN

YBS67-8 WASHER, SPRING

BOLT

WASHER, PLAIN LARGE

NUT, CAP

FLAP

RIVET, BLIND (8R6)
