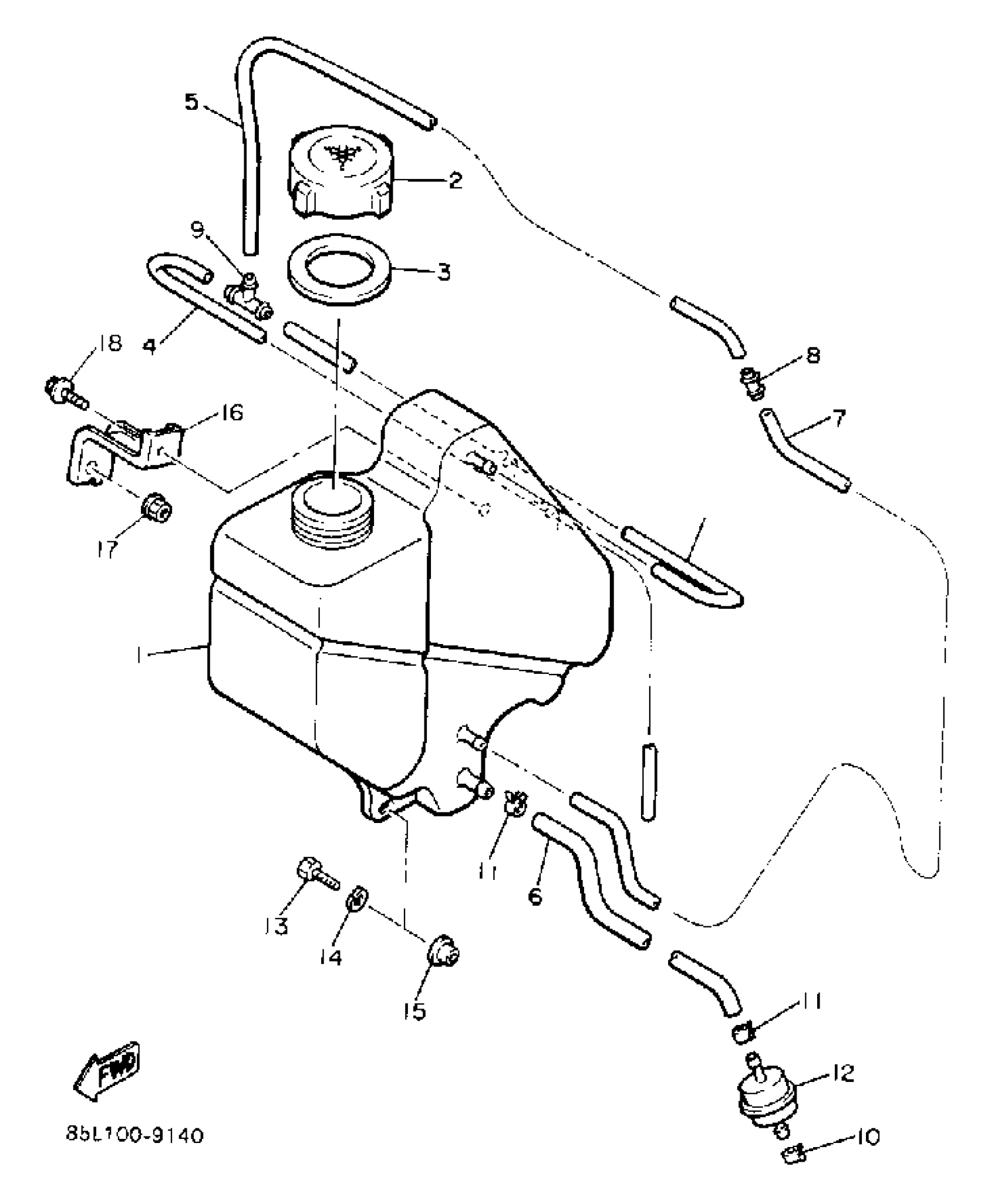

Yamaha CS340EP (OVATION LE (ELEC START)) 1990 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

85L-21751-03-00

Unavailable

2

BODY, CAP

8LU-21771-00-00

$31.99

3

GASKET, TANK (867)

90430-31003-00

$10.49

4

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$18.99

5

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$10.49

6

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$18.99

7

HOSE

90446-11025-00

Unavailable

8

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

9

PIPE, JOINT

8H8-24376-00-00

Unavailable

10

PIPE, JOINT

801-24376-00-00

Unavailable

11

CLIP (8A1)

90467-09026-00

$3.28

12

CLIP

90467-11028-00

Unavailable

13

HOUSING STRAINER ASSY

8G8-13410-00-00

$28.99

14

BOLT, HEXAGON

97017-06020-00

$4.06

15

WASHER, SPRING

92995-06100-00

Unavailable

16

COLLAR (8G8)

90387-06681-00

Unavailable

17

BRACKET, OIL TANK 2

85L-2193F-00-00

Unavailable

18

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

19

BOLT, FLANGE

95817-06012-00

Unavailable
