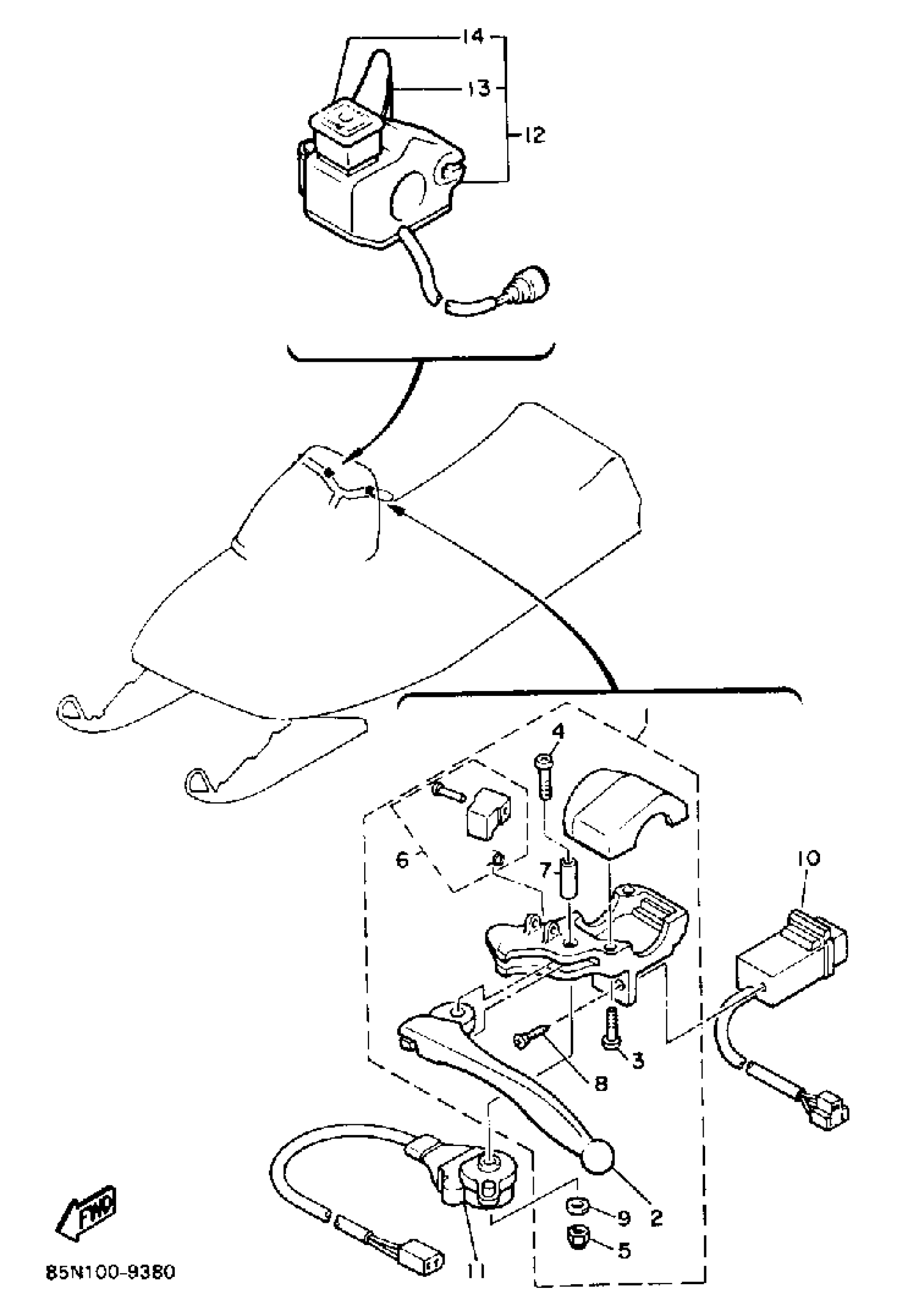

Yamaha CS340EN (OVATION DELUXE (ELEC START)) 1989 ELECTRICAL 2 Diagram

LEVER HOLDER ASSY (LEFT)

88R-W8291-00-00

$117.99

LEVER 1

8H8-83912-00-00

$20.99

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable

SCREW, PAN

98507-05040-00

$8.49

NUT, NYLON

95707-05300-00

$4.24

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

82A-83930-00-00

Unavailable

COLLAR, LEVER

802-83913-00-00

Unavailable

. SCREW, TAPPING

97780-30312-00

Unavailable

. WASHER, PLAIN

92990-05200-00

Unavailable

BEAM SWITCH ASSY

8H8-83950-01-00

$79.99

STOP SWITCH ASSY

88R-82530-00-00

$31.99

LEVER HOLDER ASSEMBLY (RIGHT)

84R-82720-00-00

Unavailable

LEVER, THROTTLE

8V0-42138-00-00

$64.99

. ENGINE STOP SWITCH ASSEMBLY

84R-82575-09-00

Unavailable
