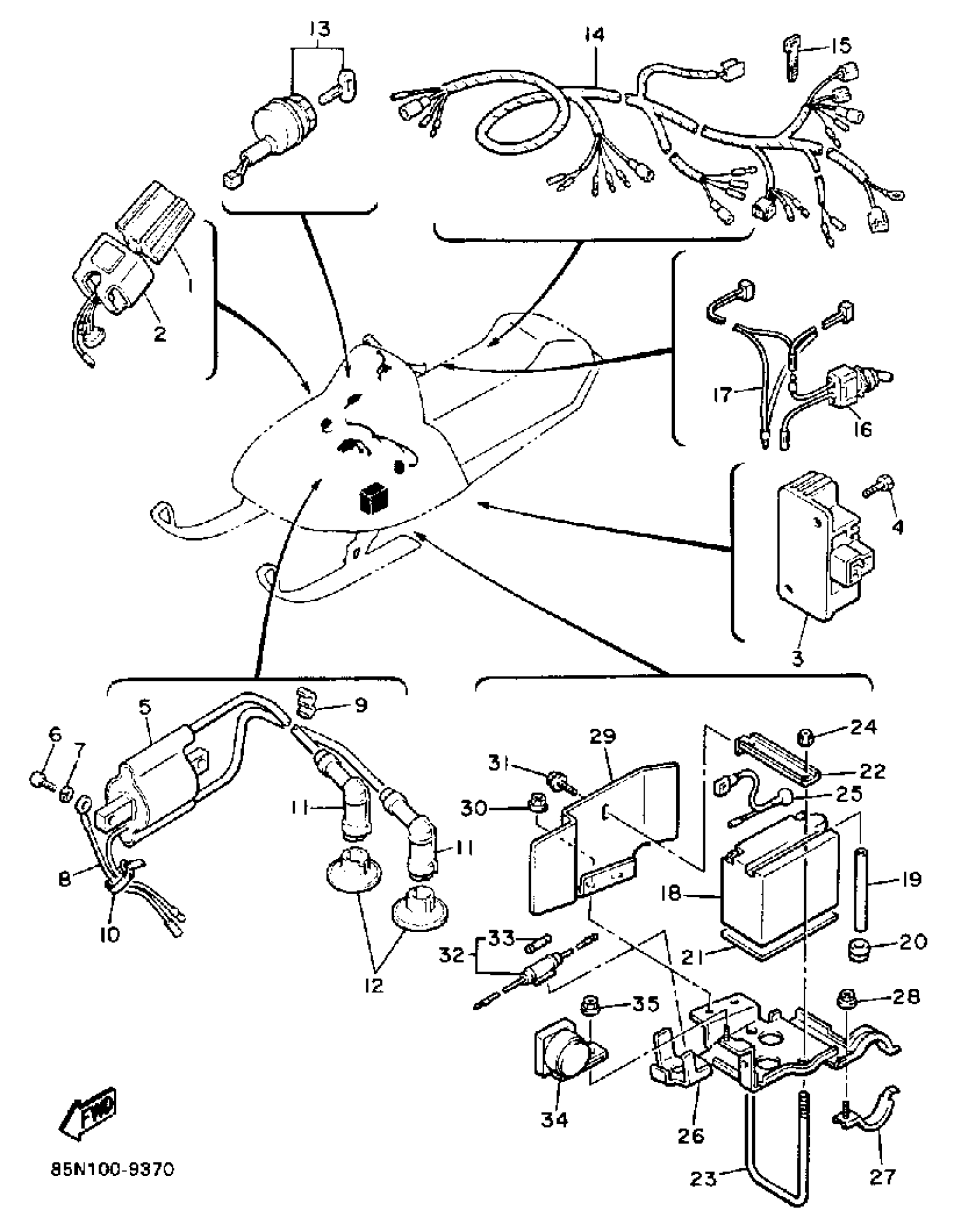

Yamaha CS340EN (OVATION DELUXE (ELEC START)) 1989 ELECTRICAL 1 Diagram
#
1
C.D.I. UNIT ASSEMBLY
81E-85540-M0-00
Unavailable
2
BAND
2A7-85546-00-00
Unavailable
3
RECTIFIER & REGULATOR ASSY
22J-81960-92-00
Unavailable
4
BOLT(4GV)
97017-05012-00
$8.49
5
IGNITION COIL ASSY
85T-82310-06-00
$79.99
6
SCREW PAN HEAD
98580-06020-00
$8.49
7
WASHER, SPRING
92995-06100-00
Unavailable
8
WIRE, SUB LEAD (85L-82318-00)
85L-82318-01-00
Unavailable
9
GROMMET 1
8W6-82355-00-00
Unavailable
10
BAND, SWITCH CORD
437-83936-01-00
$7.99
11
PLUG CAP ASSY
85G-82370-20-00
$34.99
12
SEAL
8G5-82372-00-00
$5.60
13
MAIN SWITCH ASSY
8K1-82510-21-00
Unavailable
14
WIRE HARNESS ASSEMBLY
85N-82590-00-00
Unavailable
15
BAND
341-26397-01-00
Unavailable
16
SWITCH
82J-82917-00-00
Unavailable
17
WIRE, SUB-LEAD
80X-82318-00-00
Unavailable
18
YB14LA2 YUASA BATTERY
YB1-4LA20-00-00
Unavailable
19
HOSE (L340)
90445-08684-00
Unavailable
20
GROMMET(3AA)
90480-12497-00
Unavailable
21
. SEAT, BATTERY
82L-82122-00-00
Unavailable
22
PLATE, BATTERY FITTING
85N-82136-00-00
Unavailable
23
. SCREW, FITTING
8J4-82133-00-00
Unavailable
24
NUT, NYLON
95707-06300-00
Unavailable
25
. WIRE, PLUS LEAD
89X-82115-00-00
Unavailable
26
BRACKET,BATTERY
85N-2199G-01-00
Unavailable
27
PLATE, BATTERY FITTING
8V0-82136-00-00
Unavailable
28
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
29
. SHIELD, HEAT
85N-2199H-00-00
Unavailable
30
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
31
BOLT, FLANGE
95812-06010-00
Unavailable
32
FUSE HOLDER ASSEMBLY
2J2-82150-10-00
Unavailable
33
FUSE
682-82151-02-00
Unavailable
34
. STARTER RELAY ASSY
8J9-81940-10-00
Unavailable
35
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
