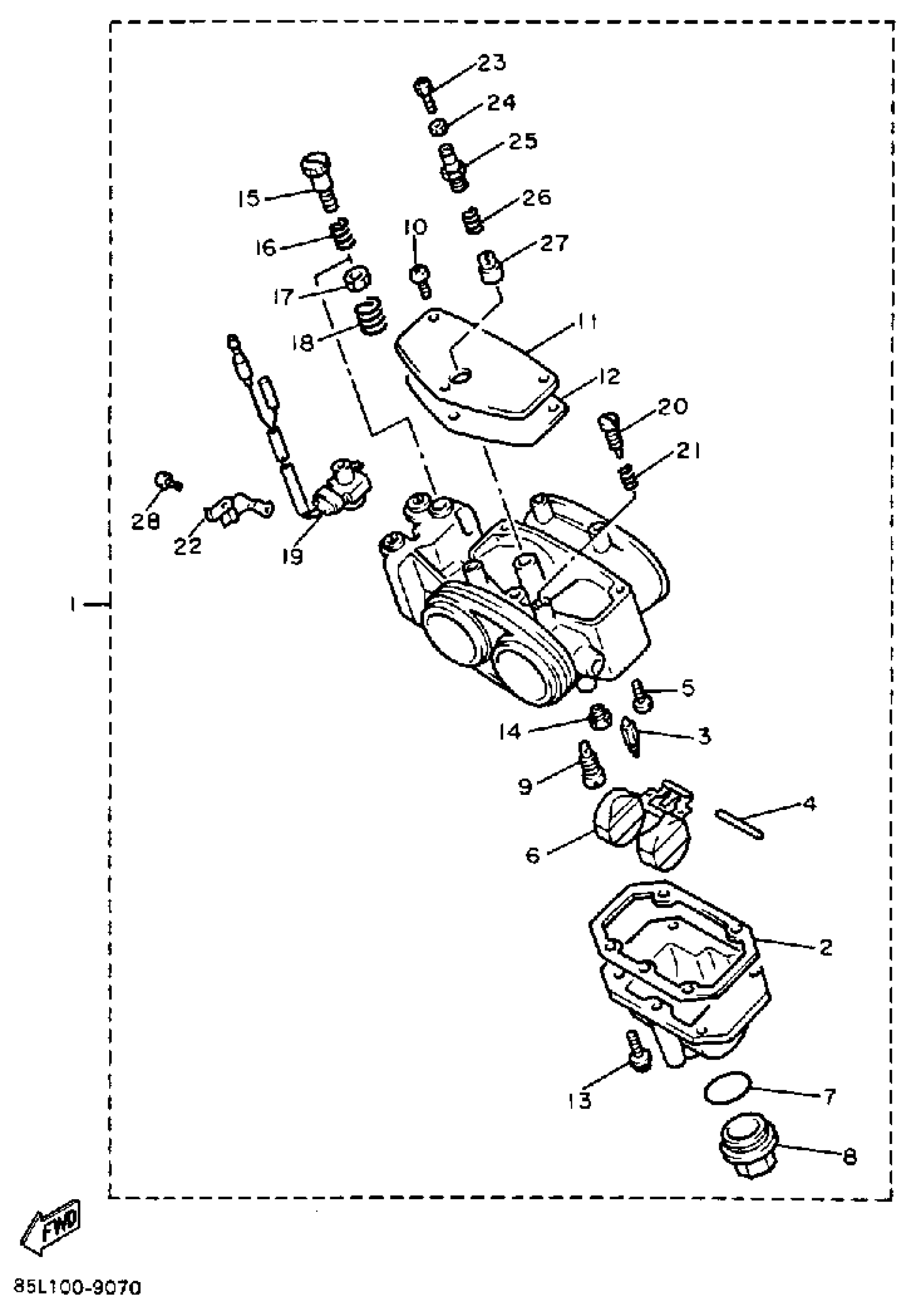

Yamaha CS340EN (OVATION DELUXE (ELEC START)) 1989 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1
85L-14301-02-00
Unavailable
2
GASKET, FLOAT CHBR
85L-14384-01-00
Unavailable
3
VALVE, NEEDLE
85L-14392-00-00
$44.99
4
. PIN, FLOAT
6E5-14386-01-00
Unavailable
5
SCREW, BINDING (M01)
98980-04010-00
$6.99
6
. FLOAT
85L-14385-00-00
Unavailable
7
O-RING
85L-14147-00-00
$14.49
8
. PLUG, DRAIN
85L-14191-00-00
Unavailable
9
. JET, PILOT #66
85L-14342-33-00
Unavailable
9
. JET, PILOT #68
85L-14342-34-00
Unavailable
9
. JET, PILOT #70
85L-14342-35-00
Unavailable
9
. JET, PILOT (# 72)
85L-14342-36-00
Unavailable
10
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
11
. COVER, MIXING
85L-14157-00-00
Unavailable
12
. WASHER
85L-14227-00-00
Unavailable
13
SCREW, PAN HEAD
98517-04012-00
Unavailable
14
. JET, MAIN (114)
288-14343-57-00
Unavailable
14
JET, MAIN (# 116)
288-14343-58-00
Unavailable
14
JET, MAIN (# 118)
288-14343-59-00
Unavailable
14
JET, MAIN (# 120)
288-14343-60-00
Unavailable
14
JET, MAIN (#122) (85L)
288-14355-61-00
Unavailable
14
NOZZLE,MAIN #124
288-14355-62-00
Unavailable
14
JET, MAIN (# 125)
288-14343-63-00
Unavailable
14
JET, MAIN (# 130)
288-14343-65-00
Unavailable
14
JET, MAIN (#132) (85L)
288-14355-66-00
Unavailable
14
JET, MAIN (#128) (85L)
288-14355-64-00
Unavailable
14
. NOZZLE, MAIN #134
288-14355-67-00
Unavailable
15
. SCREW, THROTTLE
85L-14321-00-00
Unavailable
16
. SPRING, THROTTLE STOP
85L-14333-00-00
Unavailable
17
. NUT
85L-14358-00-00
Unavailable
18
. SPRING, THROTTLE STOP
85L-14133-00-00
Unavailable
19
SWITCH, CARBURETOR
87S-8259A-01-00
Unavailable
20
. SCREW, AIR ADJUSTING
85L-14323-00-00
Unavailable
21
. SPRING, AIR ADJUSTING
85L-14334-00-00
Unavailable
22
. PLATE
85L-14146-00-00
Unavailable
23
. SCREW, CABLE ADJUSTING
288-14124-00-00
Unavailable
24
NUT, CABLE ADJUSTING
85L-14161-00-00
Unavailable
25
. CAP, PLUNGER
85L-14374-00-00
Unavailable
26
SPRING, PLUNGER
85L-14335-01-00
Unavailable
27
PLUNGER, STARTER
1YU-14371-00-00
Unavailable
28
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
