- CS340ED (CS340) 8BE7 2000
TRACK SUSPENSION 2

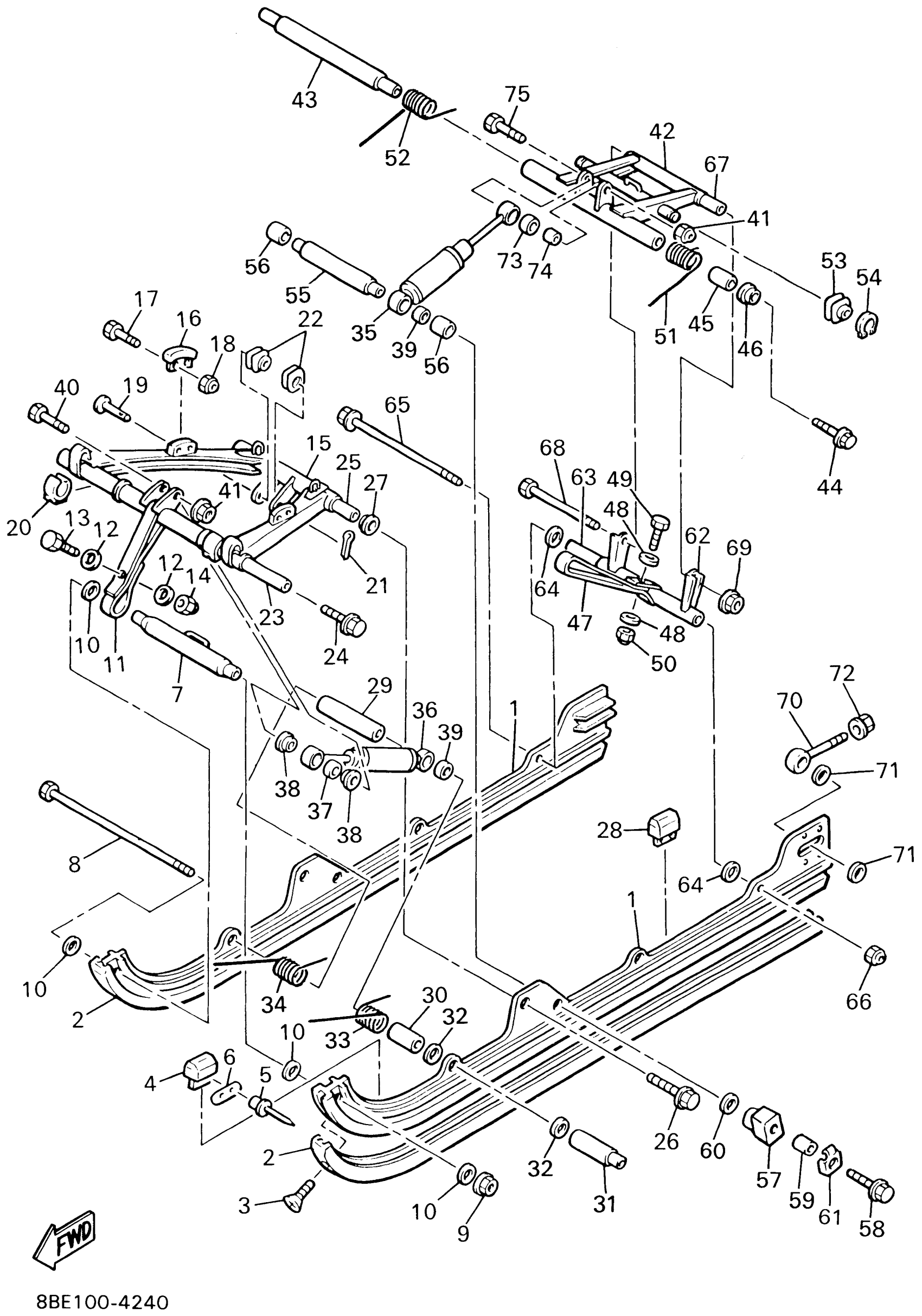

2000 Yamaha CS340 (CS340ED) Track Suspension 2 Diagram
Find the part on the Track Suspension 2 diagram for your 2000 Yamaha CS340 (CS340ED), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRAME,SLIDING
85L-W4741-00-00
2
RUNNER, SLIDING 1 (8Y3-47421-00-00)
8Y3-47421-00-XX
3
SCREW, CROSSRECESS (8G6)
90151-06005-00
4
DAMPER 1
8V0-47456-00-00
7
BRACKET 1
8V0-47415-00-00
8
BOLT,HEXAGON
97027-08255-00
11
STOPPER 1
8Y3-47495-00-00
15
ARM, PIVOT 1
85L-47331-00-00
19
PIN, CLEVIS (90240-12107-00)
90240-12136-00
21
PIN COTTER
91490-30025-00
22
HOOK 2
8R4-47447-00-00
25
SHAFT 3
8K2-47485-00-00
28
DAMPER 1
8V0-47456-00-00
29
COLLAR
90387-160M7-00
30
COLLAR
8V0-47319-00-00
31
COLLAR
90387-166M8-00
32
WASHER, PLATE
90201-161E5-00
33
SPRING, FRONT 1
85L-47471-00-00
35
SHOCK ABSORBER
85L-47480-00-00
36
SHOCK ABSORBER 2
85L-47481-00-00
37
COLLAR
90387-084J8-00
39
BUSH, PIVOT
8V0-47371-00-00
42
ARM, PIVOT 2
85L-47332-00-00
43
SHAFT 2
8K2-47475-00-00
45
COLLAR 1
8V0-47365-00-00
46
WASHER
8V0-47384-00-00
47
STOPPER 2
8Y3-47496-00-00
51
SPRING, REAR 1
85L-47473-00-00
52
SPRING, REAR 2
85L-47474-00-00
53
HOOK 1
86S-47446-01-00
55
SHAFT 4
83T-47486-00-00
56
COLLAR
8Y3-47319-00-00
58
BOLT, FLANGE
95817-10060-00
59
COLLAR
90387-103U7-00
61
PLATE, GUIDE
84J-47467-00-00
62
BRACKET 3
8V0-47417-00-00
63
COLLAR
90387-08632-00
64
WASHER (1T1)
90201-08649-00
65
BOLT, WASHER BASED(51X)
90105-08346-00
67
COLLAR
90387-084J9-00
68
BOLT,HEXAGON
97027-08165-00
73
BUSH, SOLID
90380-12161-00
74
COLLAR(82M)
90387-084R5-00
