2000 Yamaha CS340 (CS340ED) Intake Diagram

← All diagrams

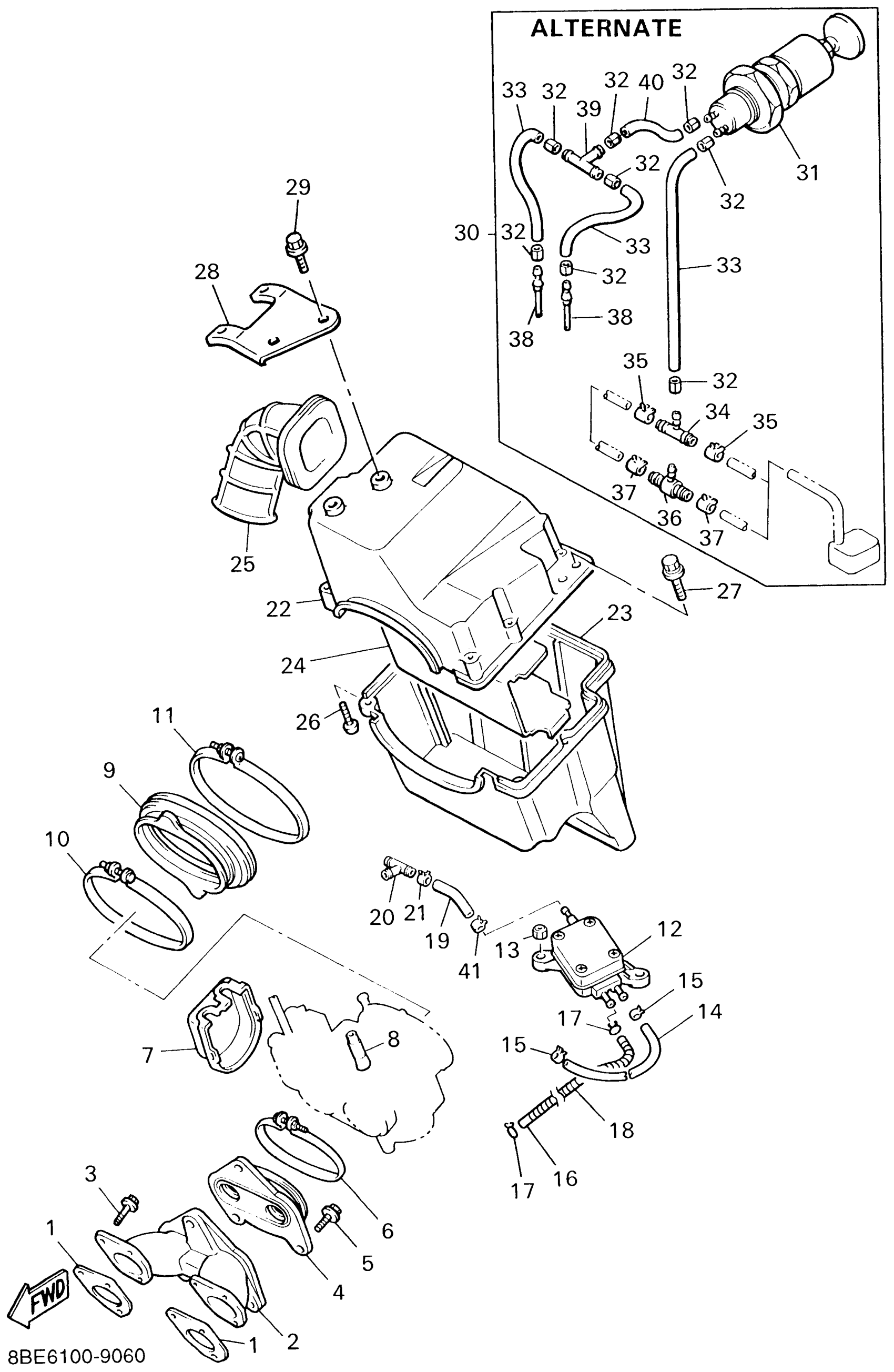

Find the part on the Intake diagram for your 2000 Yamaha CS340 (CS340ED), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha CS340 (CS340ED) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET

8Y2-13563-02-00

1

$7.88

In stock

2

JOINT, CARBURETOR

85L-13565-00-00

1
Out of stock

3

BOLT, FLANGE

95817-06020-00

1

$2.69

In stock

4

MANIFOLD, INTAKE

89X-13555-00-00

1
Out of stock

5

BOLT, FLANGE(4LN)

95817-08025-00

1

$6.17

In stock

6

HOSE CLAMP ASSY

90450-25026-00

1
Out of stock

7

CAP, CARBURETOR

85L-14471-00-00

1
Out of stock

8

BOOT

8J5-26352-00-00

1
Out of stock

9

JOINT, AIR CLEANER 1

85L-14453-00-00

1
Out of stock

10

HOSE CLAMP ASSY

90450-25027-00

1
Out of stock

11

HOSE CLAMP ASSY

90450-25028-00

1
Out of stock

12

FUEL PUMP ASSY

85L-24410-00-00

1
Out of stock

13

NUT, NYLON

95707-06300-00

1

$3.20

In stock

14

HOSE (L420)

90445-092K1-00

1

$10.63

In stock

15

CLIP (8A1)

90467-09026-00

1

$2.72

In stock

16

HOSE (L400)

90445-116K9-00

—
Out of stock

17

CLIP (7K7)

90467-11044-00

—
Out of stock

18

SPRING, COMPRESSION (27Y)

90501-08728-00

—
Out of stock

19

HOSE (L210)

90445-110F5-00

—

$14.08

In stock

20

PIPE, JOINT

815-24379-00-00

—

$19.74

In stock

21

CLIP

90467-11028-00

1

$5.14

In stock

22

SILENCER, INTAKE 1

87D-14431-00-00

—
Out of stock

23

SILENCER, INTAKE 2

85L-14441-00-00

1
Out of stock

24

PLATE

87D-14477-00-00

1
Out of stock

25

PIPE, SUCTION 1

87D-14423-00-00

1
Out of stock

26

SCREW, PAN TAP.2

97707-50525-00

—
Out of stock

27

BOLT, WITH WASHER(8V7)

90119-06108-00

—

$6.68

In stock

28

STAY 1

87D-14493-00-00

1
Out of stock

29

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

30

PRIMER PUMUP KIT

85L-W2431-00-00

1
Out of stock

31

PRIMER PUMP ASSY

8X8-24360-01-00

—

$127.32

In stock

32

CLIP(42X)

90467-07093-00

—

$1.72

In stock

33

. HOSE

90445-084K1-00

1
Out of stock

34

PIPE, JOINT

815-24379-00-00

—

$19.74

In stock

35

CLIP (8J7)

90467-11009-00

—

$7.55

In stock

36

WAY 3 (8U0)

90413-05011-00

—

$2.74

In stock

37

CLIP (8A1)

90467-09026-00

1

$2.72

In stock

38

. NOZZLE

8U0-13552-00-00

1
Out of stock

39

. JOINT

8H0-24379-00-00

1
Out of stock

40

HOSE (L360)

90445-084K0-00

—

$3.80

In stock

41

CLIP (3G0)

90467-10039-00

—
Out of stock
