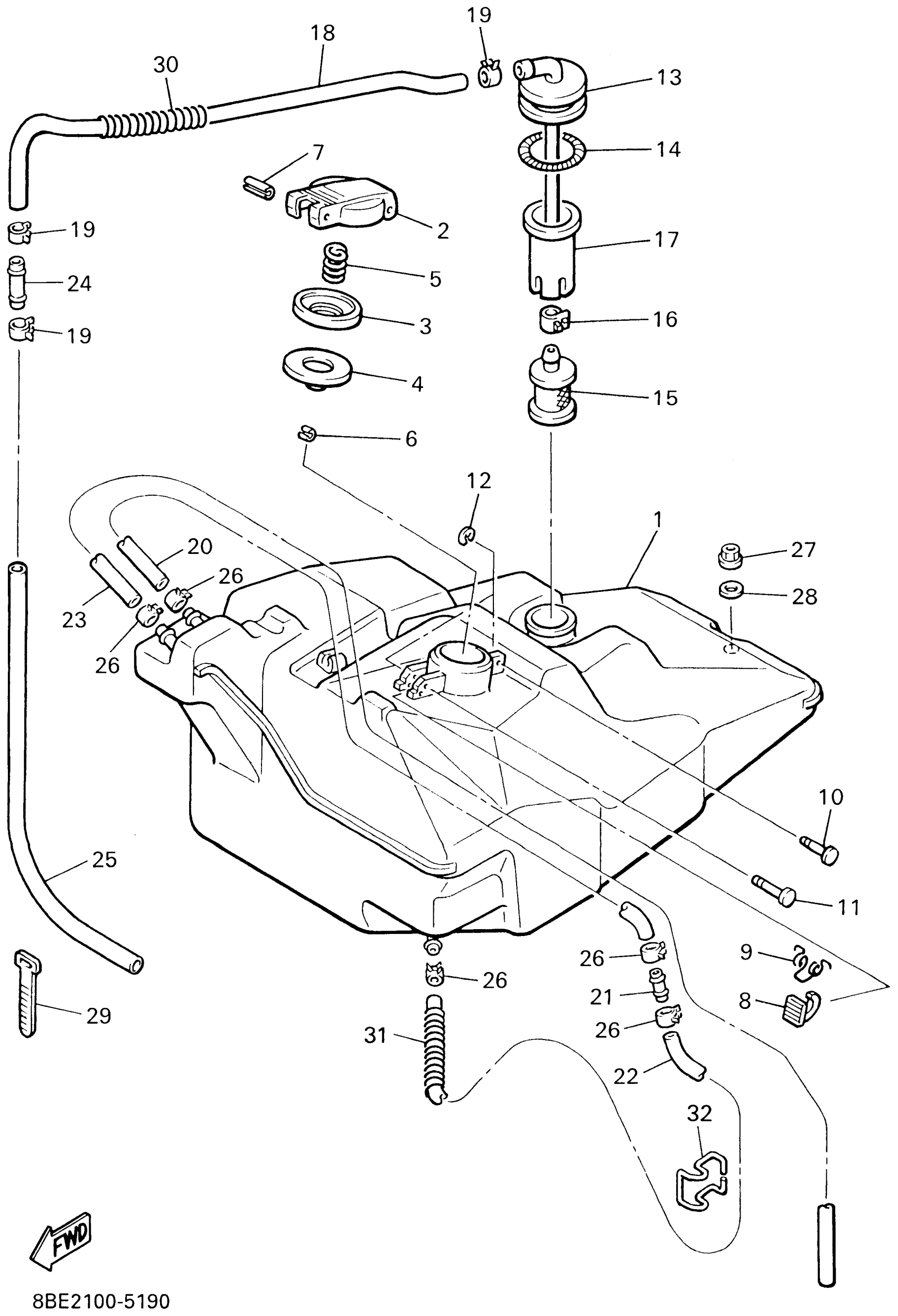

Find the part on the Fuel Tank diagram for your 2000 Yamaha CS340 (CS340ED), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha CS340 (CS340ED) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL

85L-24111-01-00

1
Out of stock

2

BODY, CAP

8W6-24611-00-00

—

$39.46

In stock

3

DISK,CAP

813-24613-01-00

1

$18.71

In stock

4

GASKET, CAP 1

89A-24641-00-00

1

$9.35

In stock

5

SPRING, CAP

90501-20130-00

1

$6.80

In stock

6

PIN, SPRING

91690-30016-00

1

$5.88

In stock

7

PIN, SPRING (8W6)

91609-25050-00

1

$1.20

In stock

8

HOOK

83M-24628-00-00

1

$19.68

In stock

9

SPRING, TORSION(81E)

90508-10715-00

—

$5.48

In stock

10

PIN (8W6)

90249-03175-00

—

$2.57

In stock

11

PIN (813)

90249-03017-00

1

$2.25

In stock

12

CIRCLIP (604)

93430-02001-00

1

$6.69

In stock

13

PIPE, SUCTION 1 (8V0-24335-01)

86M-24335-00-00

1
Out of stock

14

SPRING, TENSION (8R4)

90506-06261-00

1

$6.94

In stock

15

FILTER ASSY

8H5-24560-00-00

1

$11.47

In stock

16

CLIP

90467-11028-00

1

$5.14

In stock

17

PIPE, SUCTION 2

8V0-24336-00-00

1
Out of stock

18

HOSE (L700)

90445-117F2-00

—
Out of stock

19

CLIP

90467-11028-00

1

$5.14

In stock

20

HOSE

90699-50100-00

1

$26.99

In stock

21

PIPE, JOINT

8H8-24376-00-00

—

$4.29

In stock

22

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

—

$12.58

In stock

23

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

—

$23.43

In stock

24

PIPE, JOINT 4

878-24379-00-00

1

$6.46

In stock

25

HOSE (L210)

90445-110F5-00

—

$14.08

In stock

26

CLIP (8A1)

90467-09026-00

—

$2.72

In stock

27

NUT, NYLON

95717-08300-00

—

$2.57

In stock

28

WASHER, PLATE (3L7)

90201-08784-00

—

$2.54

In stock

29

BAND

341-26397-01-00

1
Out of stock

30

SPRING,COMPRESSION

90501-084J1-00

1
Out of stock

31

SPRING, COMPRESSION(8AF)

90501-083J8-00

1
Out of stock

32

CLAMP 1

87D-24135-00-00

1
Out of stock
