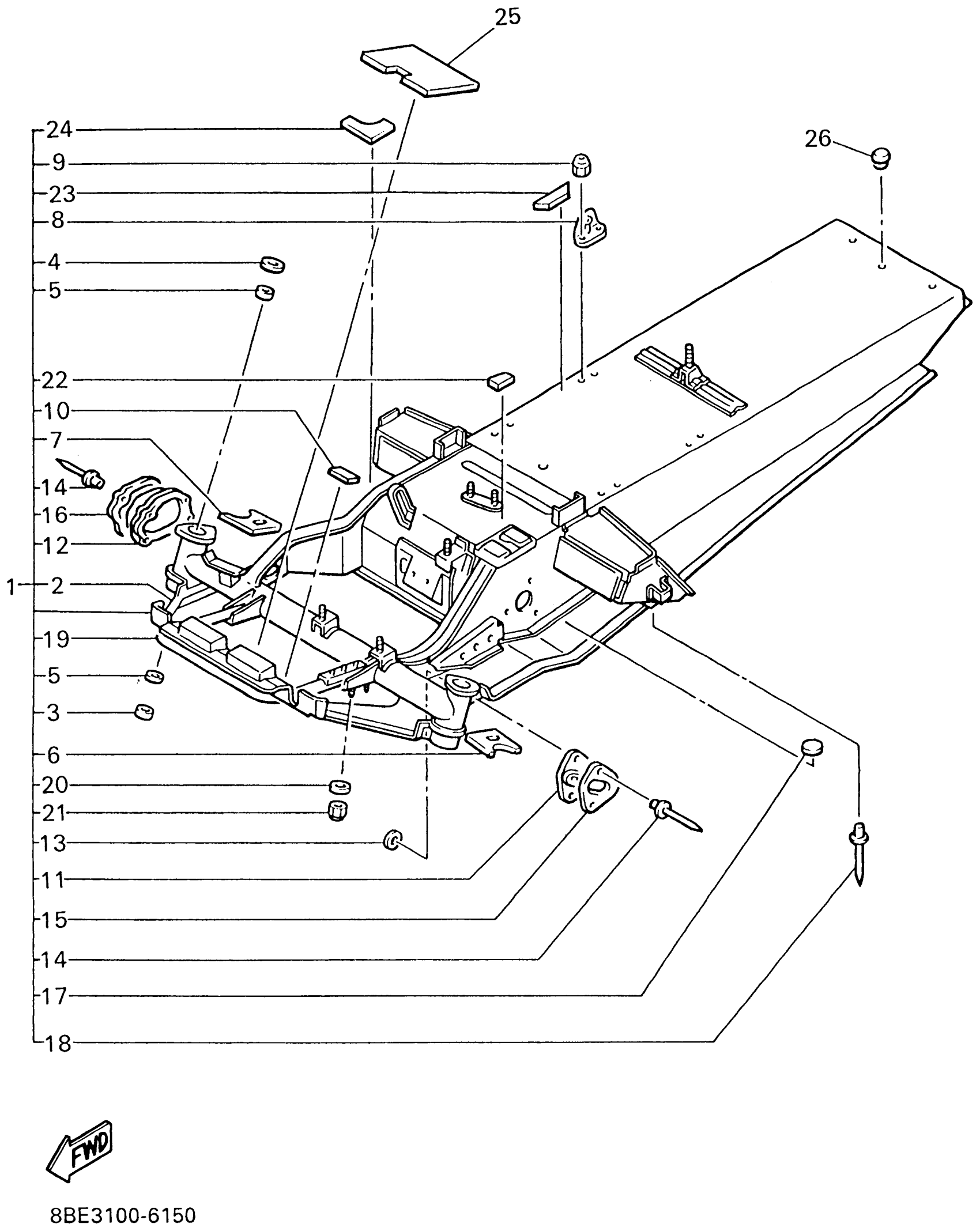

Yamaha CS340ED (CS340) 8BE7 2000 FRAME Diagram

#

Description
Price

1

FRAME

89S-21910-00-00

Unavailable

2

PANEL,SUB FRAME 1

87E-21912-00-00

Unavailable

3

. OIL SEAL

93103-44134-00

Unavailable

4

. OIL SEAL

93104-44095-00

Unavailable

5

. BUSH, BIMETAL FORMED

90384-44173-00

Unavailable

6

. TAPE 1

85L-7717E-00-00

Unavailable

7

. TAPE 2

85L-7717F-00-00

Unavailable

8

. BRACKET, SEAT FITTING

8V0-21946-00-00

Unavailable

9

NUT, NYLON

95707-06300-00

$3.50

10

TAPE, 5

85L-7717J-00-00

Unavailable

11

. COVER 1

80L-2198F-00-00

Unavailable

12

. COVER 2

80L-2198G-00-00

Unavailable

13

WASHER, PLATE

90201-04027-00

$3.02

14

RIVET, BLIND

90267-40029-00

$8.49

15

. WASHER 1

80L-77525-00-00

Unavailable

16

. WASHER 2

80L-77526-00-00

Unavailable

17

SPACER

80F-21998-00-00

Unavailable

18

RIVET, BLIND

90267-48018-00

Unavailable

19

. BUMPER, FRONT 2

85L-77512-00-00

Unavailable

20

WASHER, PLATE (3Y6)

90201-083A6-00

Unavailable

21

NUT, NYLON

95717-08300-00

Unavailable

22

. DAMPER

85L-14409-00-00

Unavailable

23

. SHIELD, NOISE 2

85L-2199J-00-00

Unavailable

24

DAMPER, SHROUD

85L-77196-00-00

Unavailable

25

SHIELD, HEAT

85L-2199H-00-00

Unavailable

26

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

Unavailable
