2000 Yamaha CS340 (CS340ED) Crankshaft Piston Diagram

← All diagrams

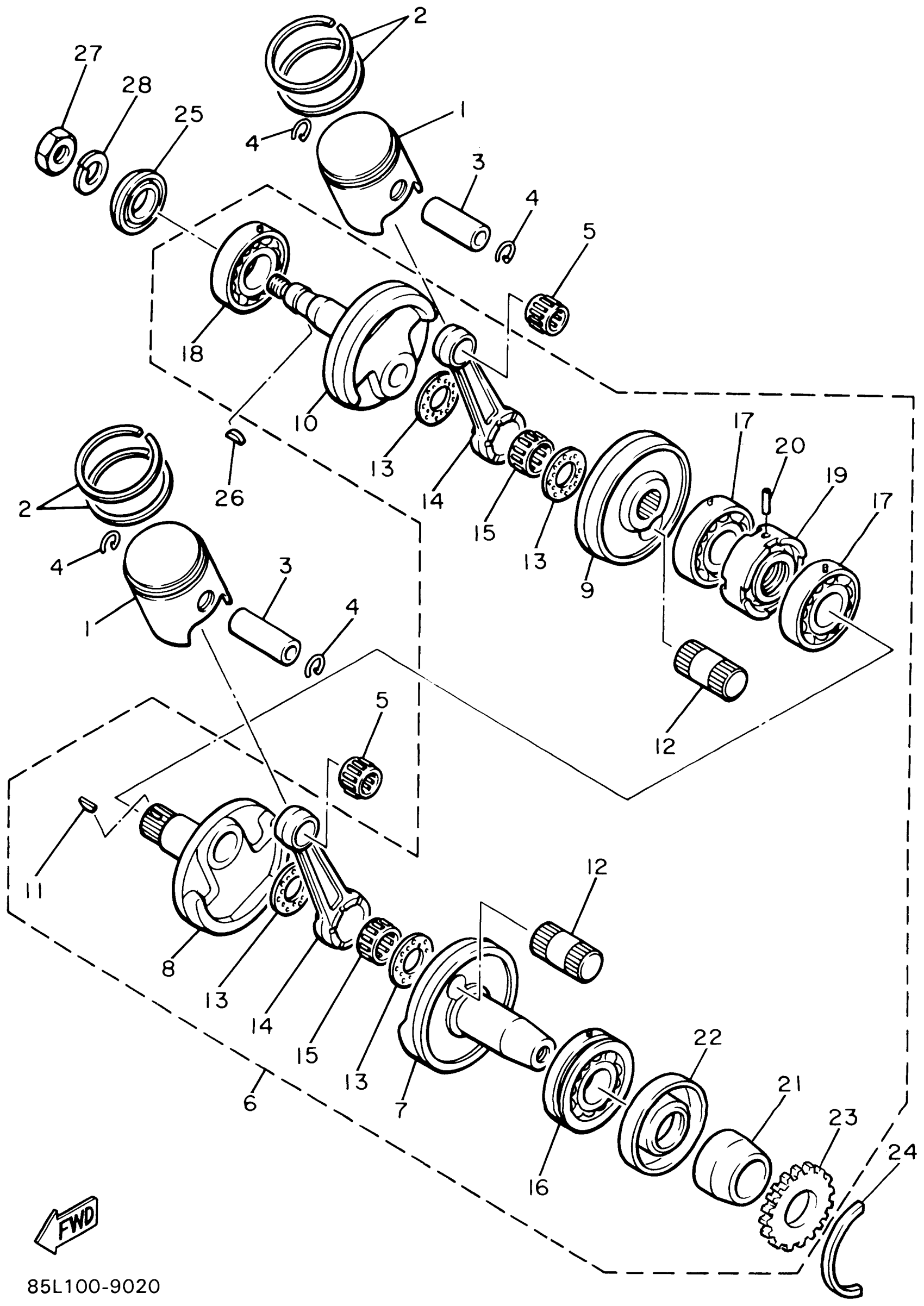

Find the part on the Crankshaft Piston diagram for your 2000 Yamaha CS340 (CS340ED), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha CS340 (CS340ED) Crankshaft Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON (STD)

85L-11631-00-96

1
Out of stock

1

PISTON (0.25MM O/S)

85L-11635-00-00

1
Out of stock

1

PISTON (0.50MM O/S)

85L-11636-00-00

1
Out of stock

2

PISTON RING SET (STD)

8G8-11601-00-00

1
Out of stock

2

PISTON RING SET (0.25MM O/S)

8G8-11601-10-00

1
Out of stock

2

PISTON RING SET (0.50MM O/S)

8G8-11601-20-00

1
Out of stock

3

PIN, PISTON

137-11633-10-00

1

$21.92

In stock

4

CIRCLIP (137-11634-00)

93450-17025-00

1

$6.17

In stock

5

1

$23.03

In stock

6

CRANKSHAFT ASSEMBLY

85L-11400-00-00

1
Out of stock

7

. CRANK 1

8G8-11412-01-00

1
Out of stock

8

. CRANK 2

8L3-11422-01-00

1
Out of stock

9

. CRANK 3

8L3-11432-01-00

1
Out of stock

10

. CRANK 4

8G8-11442-01-00

1
Out of stock

11

KEY, WOOD RUFF (324)

90280-05014-00

1

$7.82

In stock

12

PIN, CRANK

8G8-11681-00-00

—

$24.98

In stock

13

WASHER (164-11685-00)

90209-22071-00

—

$10.95

In stock

14

ROD, CONNECTING

34X-11651-00-00

—

$77.82

In stock

15

—

$48.62

In stock

16

. BEARING (B6306)

93306-30618-00

1
Out of stock

17

BEARING (8G8)

93306-20617-00

—

$69.94

In stock

18

BEARING

93306-30571-00

—
Out of stock

19

. SEAL, LABYRINTH 1

8L3-11515-01-00

1
Out of stock

20

PIN, SPRING (663)

91690-30010-00

1

$5.46

In stock

21

. COLLAR

82Y-11478-00-00

1
Out of stock

22

. OIL SEAL

93102-40373-00

1
Out of stock

23

. GEAR, PUMP DRIVE

85L-13178-00-00

1
Out of stock

24

CIRCLIP (1J7)

93440-72049-00

—
Out of stock

25

OIL SEAL (8G8)

93102-25183-00

—

$11.94

In stock

26

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

27

NUT

90170-16425-00

—
Out of stock

28

WASHER(JN5)

92907-16100-00

—

$12.08

In stock
