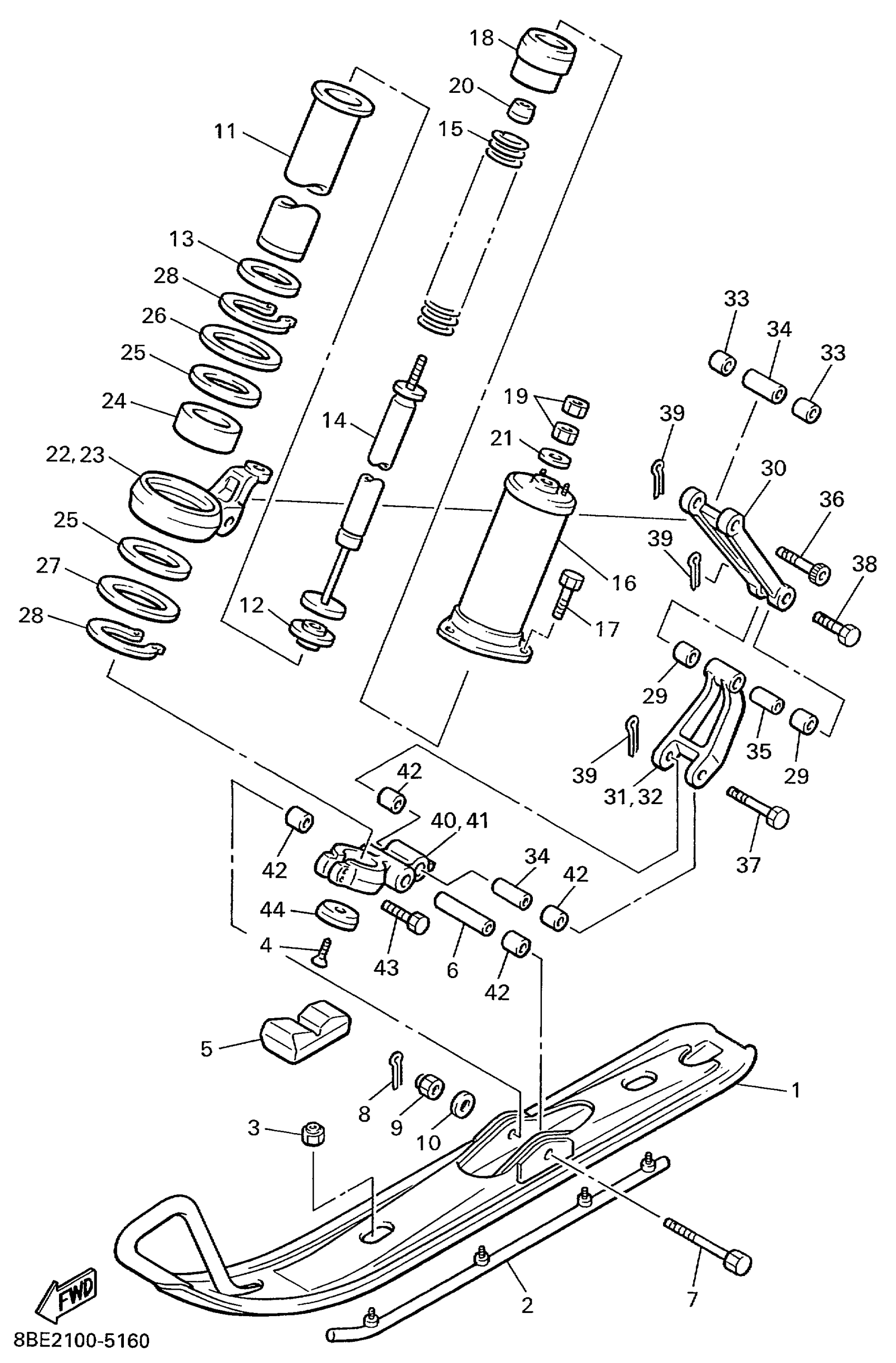

Yamaha CS340EC (OVATION LE) 8BE6 1999 SKI Diagram

#

Description
Price

1

SKI COMP. 1

85L-23710-00-00

Unavailable

2

SKI RUNNER,1

VMX-23731-01-XX

Unavailable

3

NUT, SELF-LOCKING

90185-08169-00

$7.09

4

SCREW, FLAT HEAD(4EM)

98707-06016-00

$6.68

5

STOPPER 1

85L-23743-00-00

Unavailable

6

COLLAR (8V0)

90387-106J3-00

$13.95

7

BOLT, WASHER BASED(83M)

90105-10438-00

$7.57

8

PIN, COTTER

91490-20025-00

$1.31

9

NUT, NYLON

95707-10300-00

$6.68

10

WASHER (7A9)

90201-100F7-00

$6.38

11

CYLINDER, SHOCK ABSORBER

85L-22471-00-00

$134.40

12

WASHER

81E-23779-00-00

Unavailable

13

REBOUND, STOP

85L-22494-00-00

Unavailable

14

ABSORBER ASSEMBLY 1

85L-2376A-00-00

Unavailable

15

SPRING, COMPRESSION

90501-653F9-00

Unavailable

16

HOLDER, ABSORBER

8V0-2376J-00-00

Unavailable

17

BOLT, HEXAGON

97017-06020-00

$2.55

18

BUMP, STOP

85L-22493-00-00

Unavailable

19

NUT, HEXAGON SMALL

95317-08700-00

$7.05

20

CUSHION

8V0-2386J-00-00

Unavailable

21

WASHER(6TC)

92907-08200-00

$6.18

22

ARM, OUTSIDE 1

85L-23851-00-00

Unavailable

23

ARM, OUTSIDE 2

85L-23852-00-00

Unavailable

24

BUSH, BIMETAL FORMED

90384-63188-00

Unavailable

25

OIL SEAL

93109-63044-00

Unavailable

26

WASHER, PLATE

90201-637F3-00

Unavailable

27

WASHER, PLATE

90201-635H7-00

Unavailable

28

CIRCLIP

93410-63066-00

Unavailable

29

BUSH, BIMETAL FORMED (8L0)

90384-14091-00

$9.15

30

ARM, FRONT 1

8V0-2382E-01-00

Unavailable

31

ARM, FRONT 2 (L, H)

8V0-2382F-02-00

Unavailable

32

ARM, FRONT4 (R, H)

8V0-2383F-02-00

Unavailable

33

BUSH, BIMETAL FORMED (8L0)

90384-14096-00

$9.29

34

COLLAR(89A)

90387-101Y9-00

$20.45

35

COLLAR (8L0)

90387-100A4-00

$5.62

36

BOLT, HEXAGON SOCKET HEAD(85L)

90110-10173-00

$31.92

37

BOLT, WITH HOLE

90102-10055-00

Unavailable

38

BOLT, WITH HOLE

90102-10054-00

Unavailable

39

PIN, COTTER

91490-20025-00

$1.31

40

BRACKET 1 (L, H)

81E-2376E-00-00

Unavailable

41

BRACKET 2 (R, H)

81E-2377E-00-00

Unavailable

42

BUSH, BIMETAL FORMED (8L0)

90384-14091-00

$9.15

43

BOLT, HEXAGON

97017-08030-00

$6.85

44

WASHER 1

81E-23737-00-00

$10.09
