Description

Price

1

TANK, OIL

85L-21751-03-00

Unavailable

2

BODY, CAP

8LU-21771-00-00

$31.99

3

GASKET, TANK (867)

90430-31003-00

$10.49

4

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$18.99

5

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$10.49

6

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$18.99

7

HOSE

91A30-07036-00

Unavailable

8

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

9

SPRG., COMPRESSION (8BY1)

90501-083J9-00

Unavailable

10

PIPE, JOINT

8H8-24376-00-00

Unavailable

11

PIPE, JOINT

801-24376-00-00

Unavailable

12

CLIP (8A1)

90467-09026-00

$3.28

13

CLIP

90467-11028-00

Unavailable

14

CLIP (8J7)

90467-11009-00

$10.49

15

HOUSING STRAINER ASSY

8G8-13410-00-00

$28.99

16

BOLT, FLANGE

95817-06020-00

Unavailable

17

COLLAR (8G8)

90387-06681-00

Unavailable

18

BRACKET, OIL TANK 2

85L-2193F-00-00

Unavailable

19

NUT, FLANGE(8AB)

95707-10500-00

Unavailable

20

BOLT, FLANGE

95817-06012-00

Unavailable

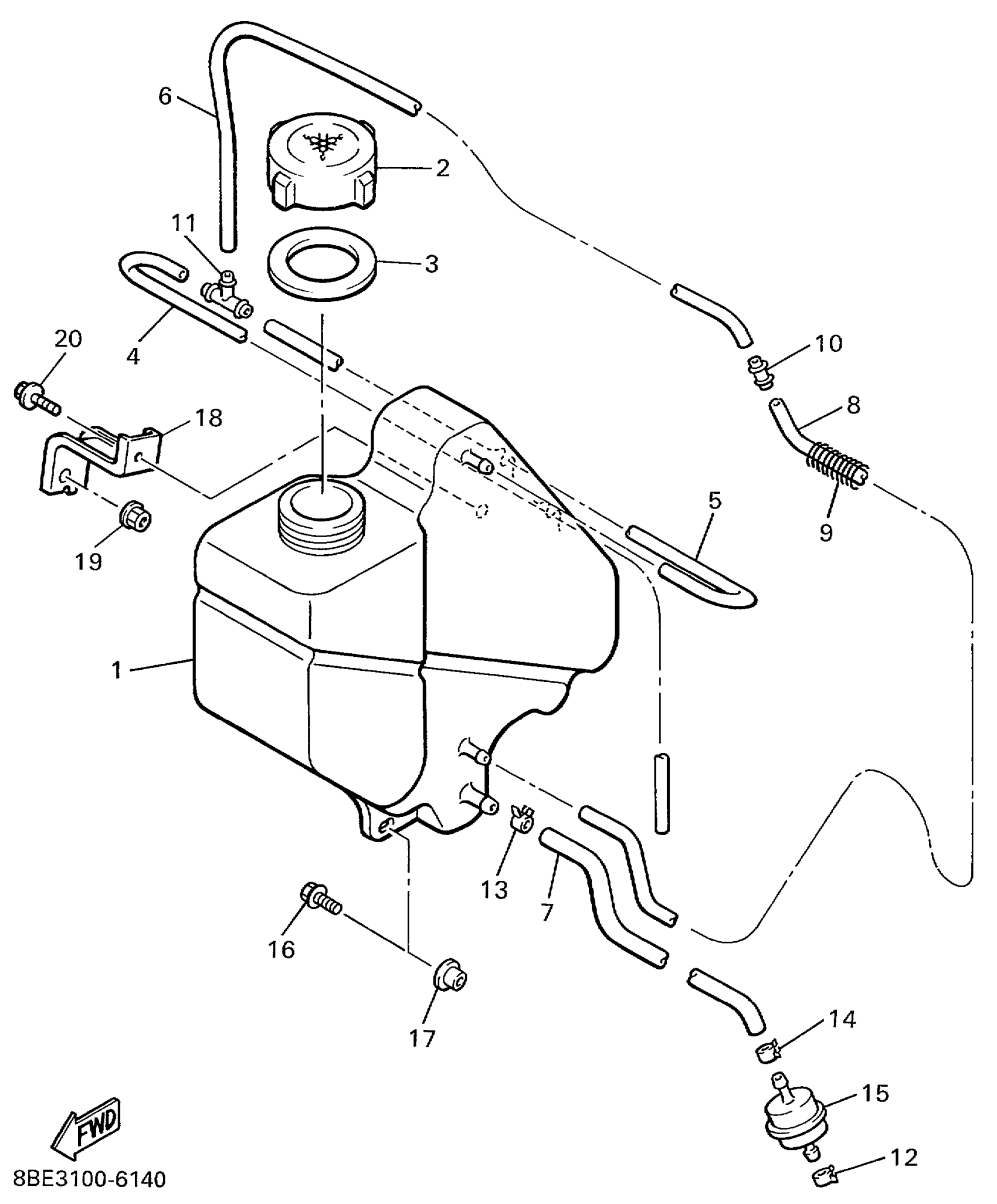

Yamaha CS340EC (OVATION LE) 8BE6 1999 OIL TANK Diagram

TANK, OIL

BODY, CAP

GASKET, TANK (867)

TUBE,FLEXIBLE VINYL(85R)

TUBE, FLEXIBLE VINYL(8AK)

TUBE,FLEXIBLE VINYL(85R)

HOSE

TUBE, FLEXIBLE VINYL(8AT)

SPRG., COMPRESSION (8BY1)

PIPE, JOINT

PIPE, JOINT

CLIP (8A1)

CLIP

CLIP (8J7)

HOUSING STRAINER ASSY

BOLT, FLANGE

COLLAR (8G8)

BRACKET, OIL TANK 2

NUT, FLANGE(8AB)

BOLT, FLANGE
