- CS340EB (OVATION LE) 1998
TRACK SUSPENSION 2

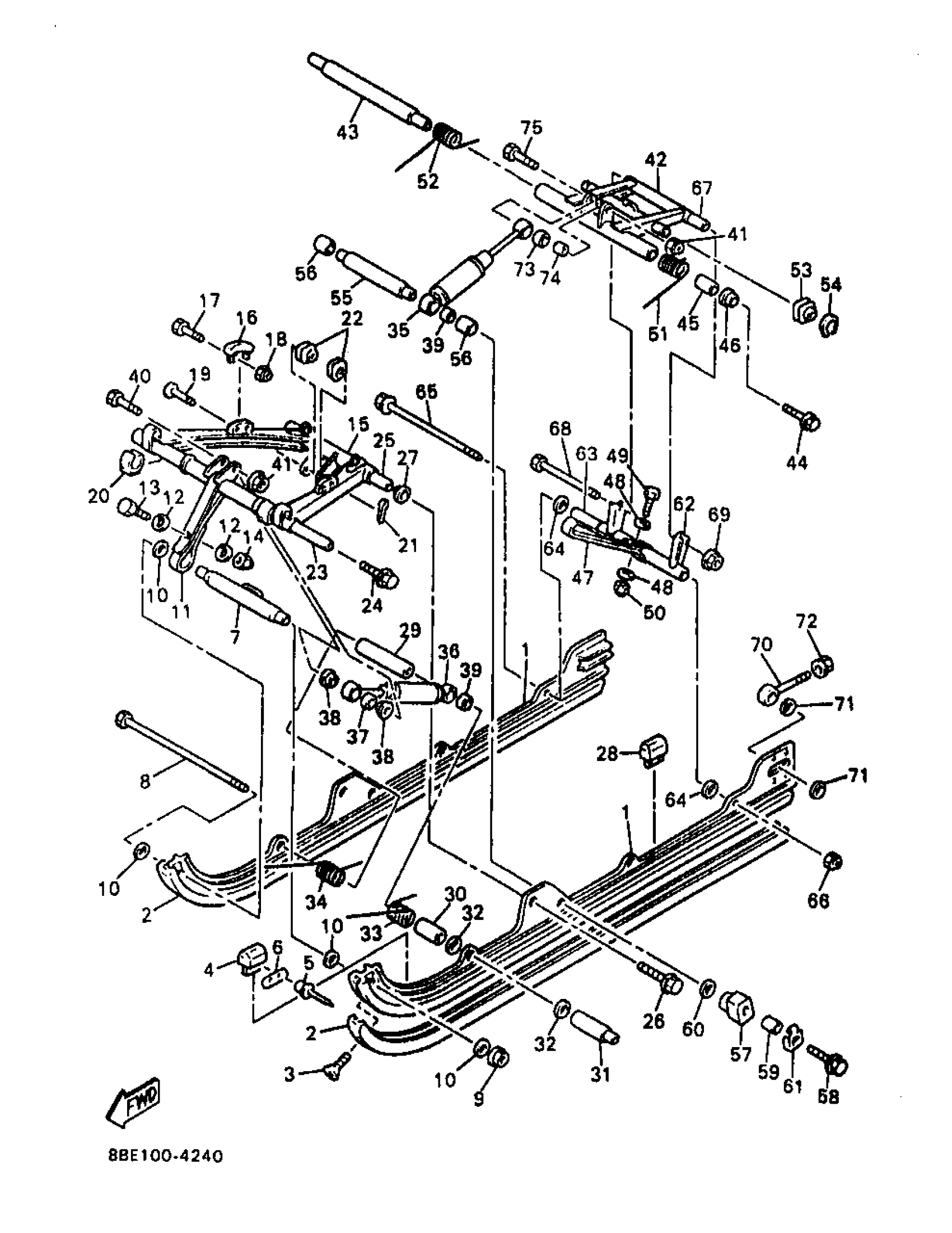

Yamaha CS340EB (OVATION LE) 1998 TRACK SUSPENSION 2 Diagram
#
1
FRAME,SLIDING
85L-W4741-00-00
Unavailable
2
RUNNER, SLIDING 1 (8Y3-47421-00-00)
8Y3-47421-00-XX
Unavailable
3
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
4
DAMPER 1
8V0-47456-00-00
Unavailable
5
RIVET, BLIND (8K4)
90267-48062-00
$3.66
6
PLATE, DAMPER
8K2-47458-01-00
$4.77
7
BRACKET 1
8V0-47415-00-00
Unavailable
8
BOLT,HEXAGON
97027-08255-00
Unavailable
9
NUT, NYLON
95717-08300-00
$2.70
10
WASHER(6TA)
92907-08600-00
$3.03
11
STOPPER 1
8Y3-47495-00-00
Unavailable
12
WASHER, PLATE
90201-06747-00
$8.49
13
BOLT, HEXAGON
97017-06025-00
$4.24
14
NUT, NYLON
95707-06300-00
$3.50
15
ARM, PIVOT 1
85L-47331-00-00
Unavailable
16
RUNNER, SLIDING 2
8F3-47422-01-00
Unavailable
17
BOLT, HEXAGON
97017-06025-00
$4.24
18
NUT, NYLON
95707-06300-00
$3.50
19
PIN, CLEVIS (90240-12107-00)
90240-12136-00
Unavailable
20
HOOK 2
8V0-47447-01-00
Unavailable
21
PIN COTTER
91490-30025-00
Unavailable
22
HOOK 2
8R4-47447-00-00
Unavailable
23
SHAFT 1
8A5-47465-02-00
Unavailable
24
BOLT (8V0)
90109-10771-00
Unavailable
25
SHAFT 3
8K2-47485-00-00
Unavailable
26
BOLT, FLANGE
95817-10030-00
Unavailable
27
COLLAR (8U7)
90387-105G6-00
Unavailable
28
DAMPER 1
8V0-47456-00-00
Unavailable
29
COLLAR
90387-160M7-00
Unavailable
30
COLLAR
8V0-47319-00-00
Unavailable
31
COLLAR
90387-166M8-00
Unavailable
32
WASHER, PLATE
90201-161E5-00
Unavailable
33
SPRING, FRONT 1
85L-47471-00-00
Unavailable
34
SPRING,FRONT.2
85L-47472-00-00
Unavailable
35
SHOCK ABSORBER
85L-47480-00-00
Unavailable
36
SHOCK ABSORBER 2
85L-47481-00-00
Unavailable
37
COLLAR
90387-084J8-00
Unavailable
38
COLLAR (8U7)
90387-123G4-00
Unavailable
39
BUSH, PIVOT
8V0-47371-00-00
Unavailable
40
BOLT(3HN)
97017-08045-00
Unavailable
41
NUT, NYLON
95717-08300-00
$2.70
42
ARM, PIVOT 2
85L-47332-00-00
Unavailable
43
SHAFT 2
8K2-47475-00-00
Unavailable
44
BOLT (8V0)
90109-10771-00
Unavailable
45
COLLAR 1
8V0-47365-00-00
Unavailable
46
WASHER
8V0-47384-00-00
Unavailable
47
STOPPER 2
8Y3-47496-00-00
Unavailable
48
WASHER, PLATE
90201-06747-00
$8.49
49
BOLT, HEXAGON
97017-06025-00
$4.24
50
NUT, NYLON
95707-06300-00
$3.50
51
SPRING, REAR 1
85L-47473-00-00
Unavailable
52
SPRING, REAR 2
85L-47474-00-00
Unavailable
53
HOOK 1
86S-47446-01-00
Unavailable
54
CIRCLIP(13H)
99009-14400-00
Unavailable
55
SHAFT 4
83T-47486-00-00
Unavailable
56
COLLAR
8Y3-47319-00-00
Unavailable
57
HOOK 2
85K-47447-01-00
Unavailable
58
BOLT, FLANGE
95817-10060-00
Unavailable
59
COLLAR
90387-103U7-00
Unavailable
60
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
61
PLATE, GUIDE
84J-47467-00-00
Unavailable
62
BRACKET 3
8V0-47417-00-00
Unavailable
63
COLLAR
90387-08632-00
Unavailable
64
WASHER (1T1)
90201-08649-00
Unavailable
65
BOLT, WASHER BASED(51X)
90105-08346-00
Unavailable
66
NUT, SELF-LOCKING
90185-08169-00
Unavailable
67
COLLAR
90387-084J9-00
Unavailable
68
BOLT,HEXAGON
97027-08165-00
Unavailable
69
NUT, NYLON
95717-08300-00
$2.70
70
COLLAR 3
8K2-47479-01-00
Unavailable
71
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
72
NUT, NYLON
95707-10300-00
Unavailable
73
BUSH, SOLID
90380-12161-00
Unavailable
74
COLLAR(82M)
90387-084R5-00
Unavailable
75
BOLT (8K4)
90101-08499-00
Unavailable
