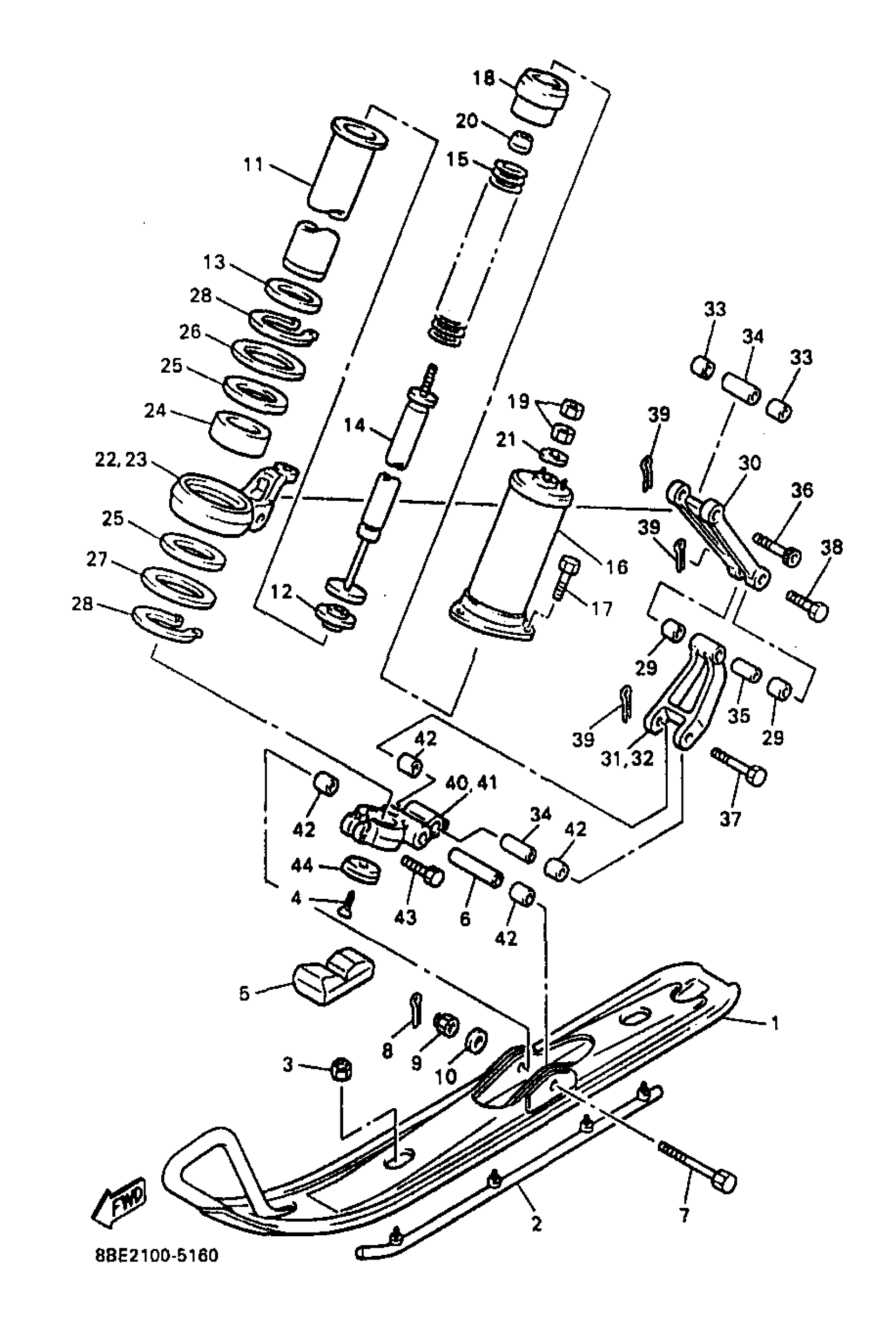

Yamaha CS340EB (OVATION LE) 1998 SKI Diagram
#
1
SKI COMP. 1
85L-23710-00-00
Unavailable
2
SKI RUNNER,1
VMX-23731-01-XX
Unavailable
3
NUT, SELF-LOCKING
90185-08169-00
$8.49
4
SCREW, FLAT HEAD(4EM)
98707-06016-00
$8.49
5
STOPPER 1
85L-23743-00-00
Unavailable
6
COLLAR (8V0)
90387-106J3-00
$17.99
7
BOLT, WASHER BASED(83M)
90105-10438-00
Unavailable
8
PIN, COTTER
91490-20025-00
$1.99
9
NUT, NYLON
95707-10300-00
$8.49
10
WASHER (7A9)
90201-100F7-00
$9.49
11
CYLINDER, SHOCK ABSORBER
85L-22471-00-00
Unavailable
12
WASHER
81E-23779-00-00
Unavailable
13
REBOUND, STOP
85L-22494-00-00
Unavailable
14
ABSORBER ASSEMBLY 1
85L-2376A-00-00
Unavailable
15
SPRING, COMPRESSION
90501-653F9-00
Unavailable
16
HOLDER, ABSORBER
8V0-2376J-00-00
Unavailable
17
BOLT, HEXAGON
97017-06020-00
Unavailable
18
BUMP, STOP
85L-22493-00-00
Unavailable
19
NUT, HEXAGON SMALL
95317-08700-00
Unavailable
20
CUSHION
8V0-2386J-00-00
Unavailable
21
WASHER(6TC)
92907-08200-00
Unavailable
22
ARM, OUTSIDE 1
85L-23851-00-00
Unavailable
23
ARM, OUTSIDE 2
85L-23852-00-00
Unavailable
24
BUSH, BIMETAL FORMED
90384-63188-00
Unavailable
25
OIL SEAL
93109-63044-00
Unavailable
26
WASHER, PLATE
90201-637F3-00
Unavailable
27
WASHER, PLATE
90201-635H7-00
Unavailable
28
CIRCLIP
93410-63066-00
Unavailable
29
BUSH, BIMETAL FORMED (8L0)
90384-14091-00
Unavailable
30
ARM, FRONT 1
8V0-2382E-01-00
Unavailable
31
ARM, FRONT 2 (L, H)
8V0-2382F-02-00
Unavailable
32
ARM, FRONT4 (R, H)
8V0-2383F-02-00
Unavailable
33
BUSH, BIMETAL FORMED (8L0)
90384-14096-00
Unavailable
34
COLLAR(89A)
90387-101Y9-00
Unavailable
35
COLLAR (8L0)
90387-100A4-00
Unavailable
36
BOLT, HEXAGON SOCKET HEAD(85L)
90110-10173-00
Unavailable
37
BOLT, WITH HOLE
90102-10055-00
Unavailable
38
BOLT, WITH HOLE
90102-10054-00
Unavailable
39
PIN, COTTER
91490-20025-00
$1.99
40
BRACKET 1 (L, H)
81E-2376E-00-00
Unavailable
41
BRACKET 2 (R, H)
81E-2377E-00-00
Unavailable
42
BUSH, BIMETAL FORMED (8L0)
90384-14091-00
Unavailable
43
BOLT, HEXAGON
97017-08030-00
Unavailable
44
WASHER 1
81E-23737-00-00
Unavailable
