Description

Price

1

COVER, OIL PUMP

85L-15416-00-00

Unavailable

2

OIL SEAL (J10)

93101-10090-00

$8.49

3

METAL, WORM SHAFT OUTER

821-13176-00-00

$17.49

4

SHAFT, WORM

85L-13175-00-00

Unavailable

5

GEAR, DRIVE (59T)

8R4-13188-00-00

Unavailable

6

PLATE, CAM THRUST

137-13148-00-00

Unavailable

7

WASHER, WAVE (137)

90206-11016-00

Unavailable

8

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

9

CIRCLIP(10W)

99009-10400-00

$4.73

10

PIN,DOWEL (137)

93603-22028-00

$3.76

11

COVER, OIL PUMP 2

85L-15426-02-00

Unavailable

12

OIL SEAL (8V0)

93104-52079-00

$14.99

13

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

14

PIN, DOWEL(8AH)

91808-22019-00

$9.49

15

BOLT, FLANGE

95817-06035-00

$7.49

16

BOLT, FLANGE

95817-06025-00

Unavailable

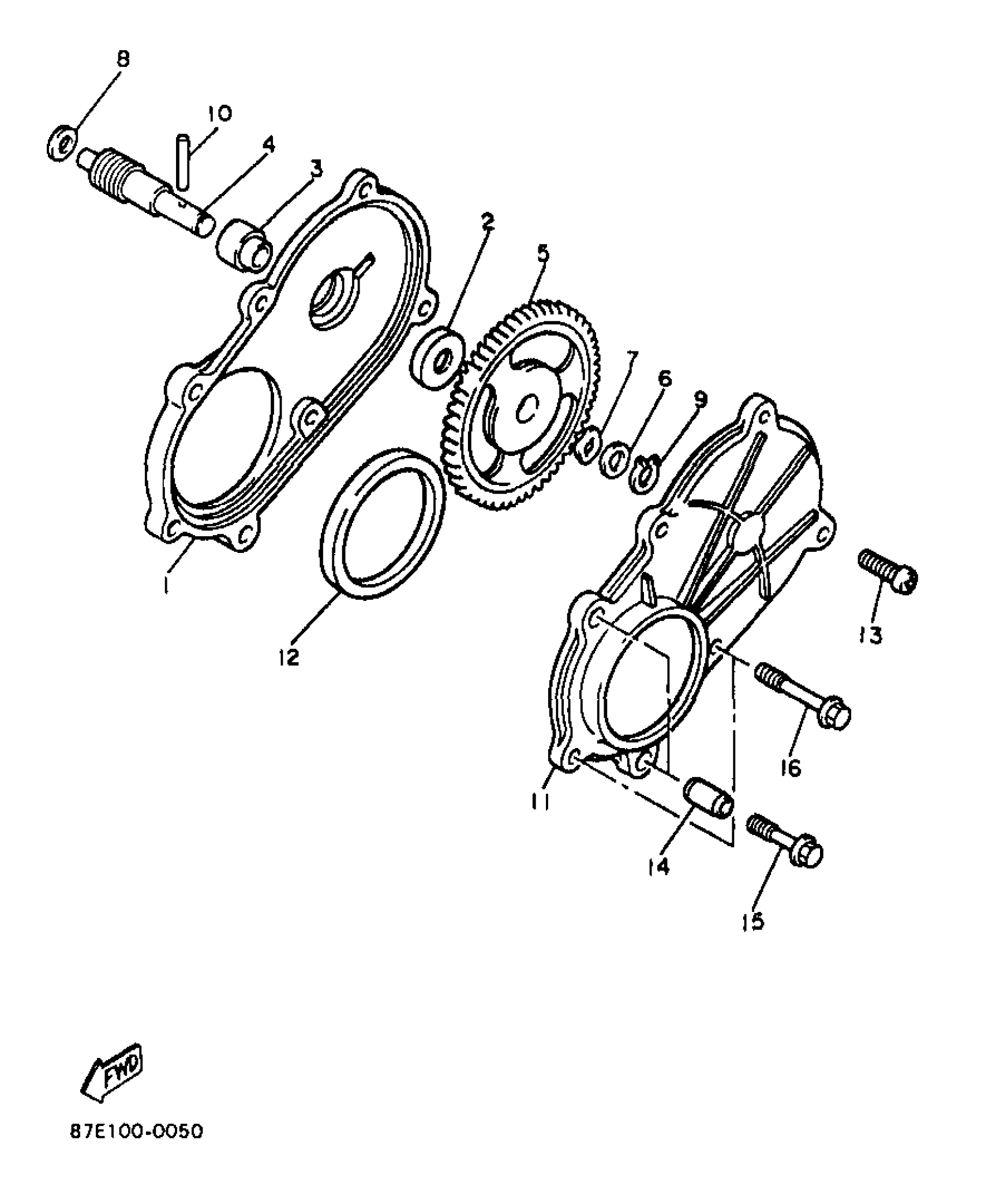

Yamaha CS340EB (OVATION LE) 1998 PUMP DRIVE GEAR Diagram

COVER, OIL PUMP

OIL SEAL (J10)

METAL, WORM SHAFT OUTER

SHAFT, WORM

GEAR, DRIVE (59T)

PLATE, CAM THRUST

WASHER, WAVE (137)

WASHER, PLATE (1E7)

CIRCLIP(10W)

PIN,DOWEL (137)

COVER, OIL PUMP 2

OIL SEAL (8V0)

SCREW, PAN HEAD(3TJ)

PIN, DOWEL(8AH)

BOLT, FLANGE

BOLT, FLANGE
