1998 Yamaha Ovation LE (CS340EB) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1998 Yamaha Ovation LE (CS340EB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

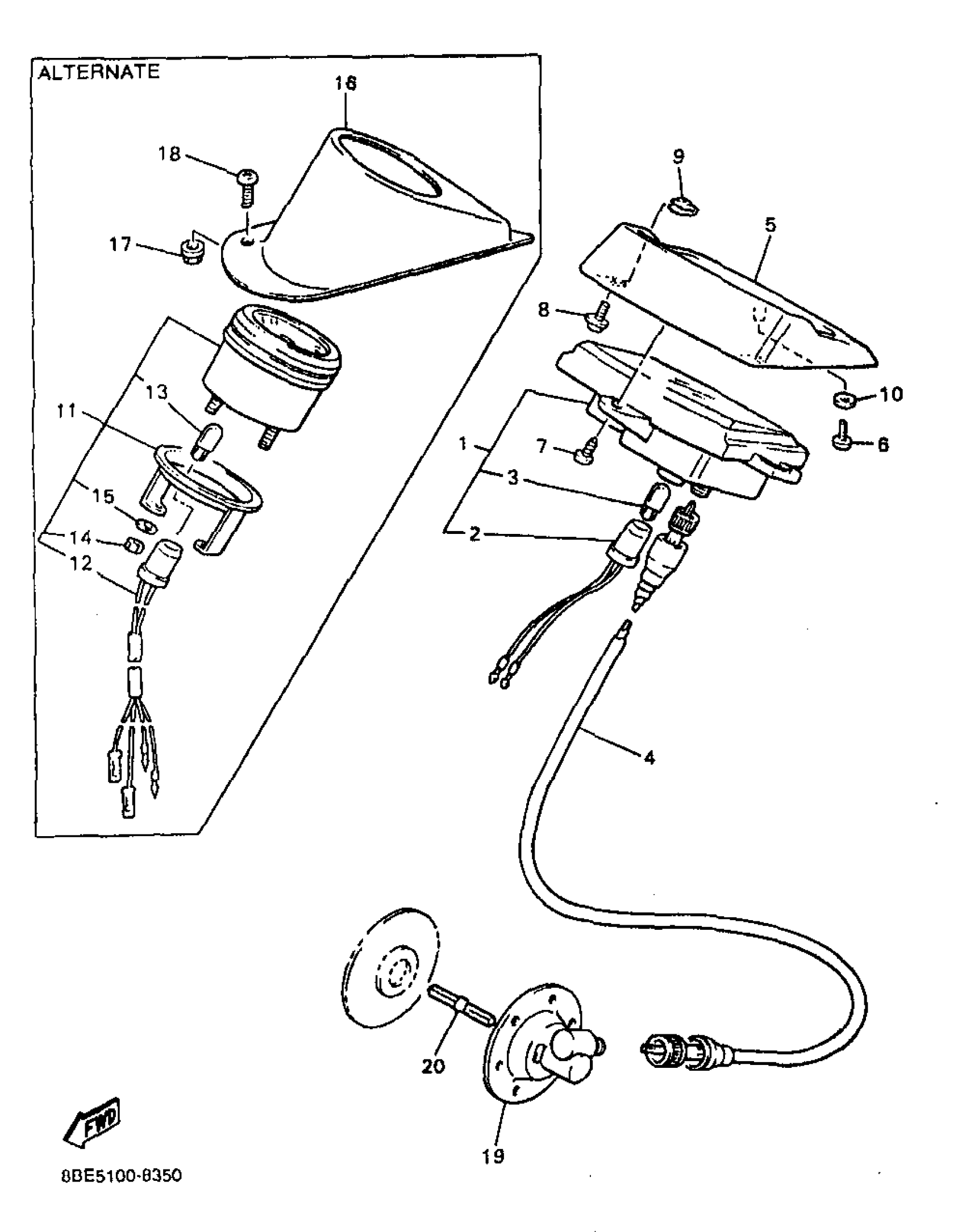

1998 Yamaha Ovation LE (CS340EB) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY (MILE/H)

85N-83510-40-00

1
Out of stock

2

SOCKET CORD ASSY

5E2-83509-20-00

1

$24.89

In stock

3

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

4

SPEEDOMETER CABLE ASSEMBLY

85N-83550-01-00

1
Out of stock

5

COVER, METER

87D-83559-00-00

1
Out of stock

6

SCREW, BINDING

98907-05016-00

1

$6.18

In stock

7

SCREW, TAPPING(53L)

90167-05030-00

1

$6.69

In stock

8

SCREW, WITH WASHER

90159-05137-00

1
Out of stock

9

NUT, SPRING

90183-051A0-00

1

$2.66

In stock

10

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

11

TACHOMETER ASSY

85L-83540-00-00

1
Out of stock

12

SOCKET CORD ASSY

85L-83509-00-00

—

$22.09

In stock

13

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

14

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

15

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

16

PANEL, TACHOMETER 2

85N-8354E-00-00

1
Out of stock

17

NUT, FLANGE(4MV)

95707-06500-00

—

$0.78

In stock

18

SCREW, BINDING

98907-06010-00

—

$1.49

In stock

19

METER GEAR HOUSING COMP

8Y1-47700-00-00

—

$64.45

In stock

20

JOINT

8K4-47715-00-00

—

$4.60

In stock
