1998 Yamaha Ovation LE (CS340EB) Handle Switch Lever Diagram

← All diagrams

Find the part on the Handle Switch Lever diagram for your 1998 Yamaha Ovation LE (CS340EB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

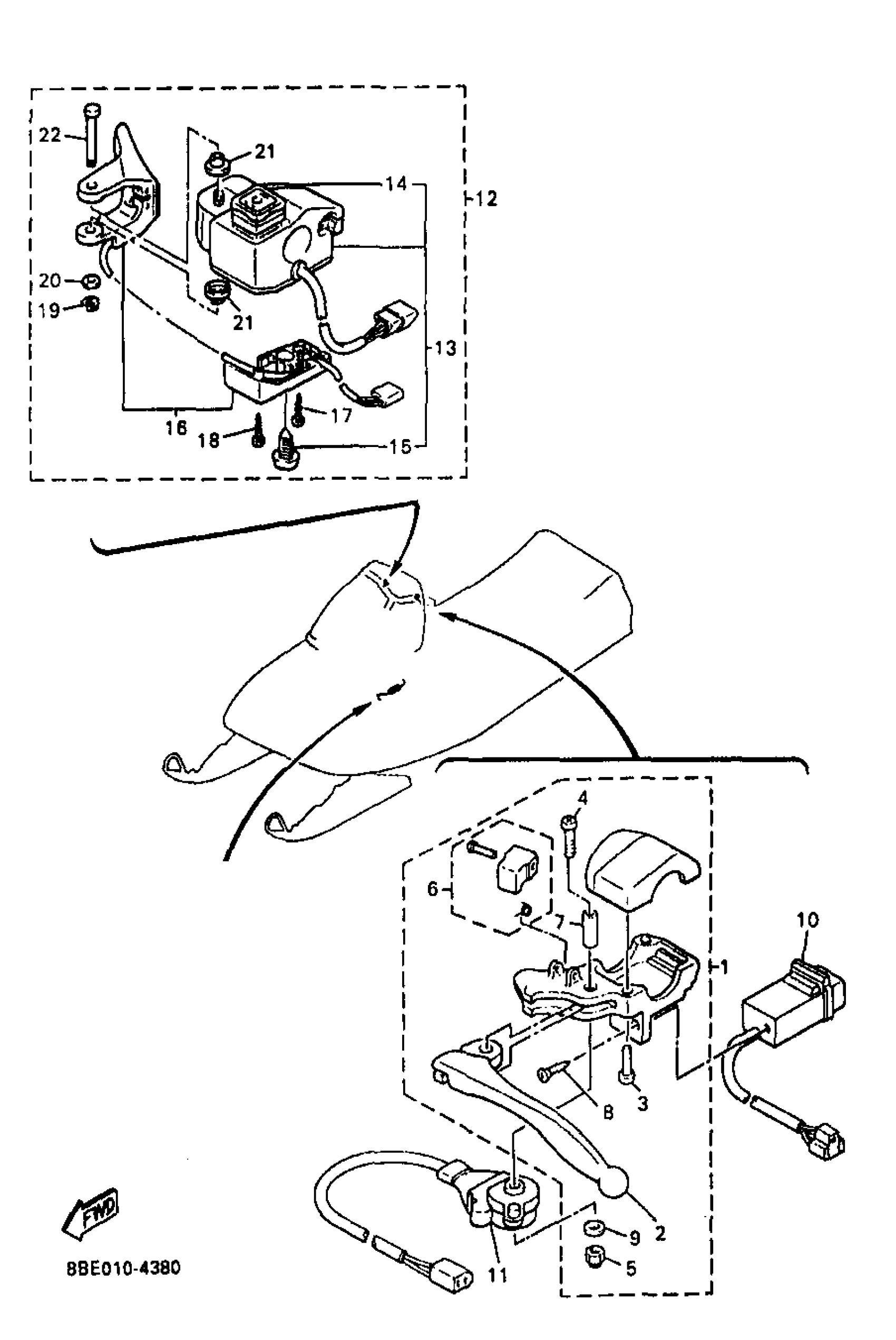

1998 Yamaha Ovation LE (CS340EB) Handle Switch Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER HOLDER ASSY (LEFT)

88R-W8291-00-00

1

$110.75

In stock

2

LEVER 1

8H8-83912-00-00

1

$18.40

In stock

3

SCREW, PAN HEAD(41N)

90157-05057-00

—

$2.23

In stock

4

SCREW

8R4-82113-00-00

—

$0.95

In stock

5

NUT, NYLON

95707-05300-00

1

$2.74

In stock

6

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

82A-83930-00-00

1
Out of stock

7

COLLAR, LEVER

802-83913-00-00

—

$6.35

In stock

8

. SCREW, TAPPING

97707-30712-00

1
Out of stock

9

WASHER, PLAIN LARGE

92907-05200-00

1
Out of stock

10

BEAM SWITCH ASSY

8K4-83950-01-00

—

$60.08

In stock

11

STOP SWITCH ASSY

88R-82530-00-00

1

$25.06

In stock

12

LEVER HOLDER ASSY (RIGHT)

8AU-82720-03-00

1
Out of stock

13

SWITCH, HANDLE 3 (RIGHT)

8AU-83963-00-00

1
Out of stock

14

ENGINE STOP SWITCH ASSY

8AU-82575-09-00

1

$106.94

In stock

15

SCREW, ADJUSTING

8R6-83928-00-00

1

$2.83

In stock

16

THUMB WARMER ASSY

8AU-82970-03-00

—
Out of stock

17

SCREW, TAPPING(88J)

97706-30620-00

—

$1.37

In stock

18

SCREW, PAN TAP.2 SLIT

97707-30630-00

—

$1.37

In stock

19

CIRCLIP (EU0)

99080-04600-00

1

$1.67

In stock

20

WASHER, SPECIAL

85G-83663-00-00

—

$7.22

In stock

21

CAP 1

85G-83956-00-00

—

$6.66

In stock

22

SHAFT

88T-8399F-00-00

—

$4.03

In stock
