Description

Price

1

STARTER ASSY

85L-15710-00-00

Unavailable

2

. CASE, STARTER

8G8-15711-01-00

Unavailable

3

DRUM, SEAVE

8F3-15714-01-00

$48.99

4

PAWL, DRIVE

8F3-15741-01-00

$28.99

5

SPRING, STARTER

8F3-15713-01-00

$48.99

6

SPRING, DRIVE PLATE

8F3-15715-00-00

$9.99

7

WASHER, THRUST

8F3-15739-01-00

$11.99

8

SPRING, RETURN

8F3-15734-00-00

$5.49

9

PLATE, DRIVE

8F3-15716-03-00

$29.99

10

WASHER, SPRING

92907-06100-00

$4.25

11

NUT(JN5)

95317-06700-00

$8.49

12

GUIDE, ROPE

8F3-15758-00-00

$20.99

13

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$33.99

14

HANDLE, STARTER

8F3-15755-00-00

$29.99

15

WASHER, THRUST

8G5-15739-00-00

$9.49

16

COLLOR

82M-15779-00-00

Unavailable

17

BOLT, FLANGE

95817-06045-00

Unavailable

18

PULLEY, STARTER

81L-15723-00-00

Unavailable

19

BOLT, FLANGE

95817-08012-00

Unavailable

20

COVER

85L-15779-00-00

Unavailable

21

BOLT, FLANGE

95817-06030-00

Unavailable

22

BOLT, FLANGE

95817-06030-00

Unavailable

23

NUT

90179-06447-00

Unavailable

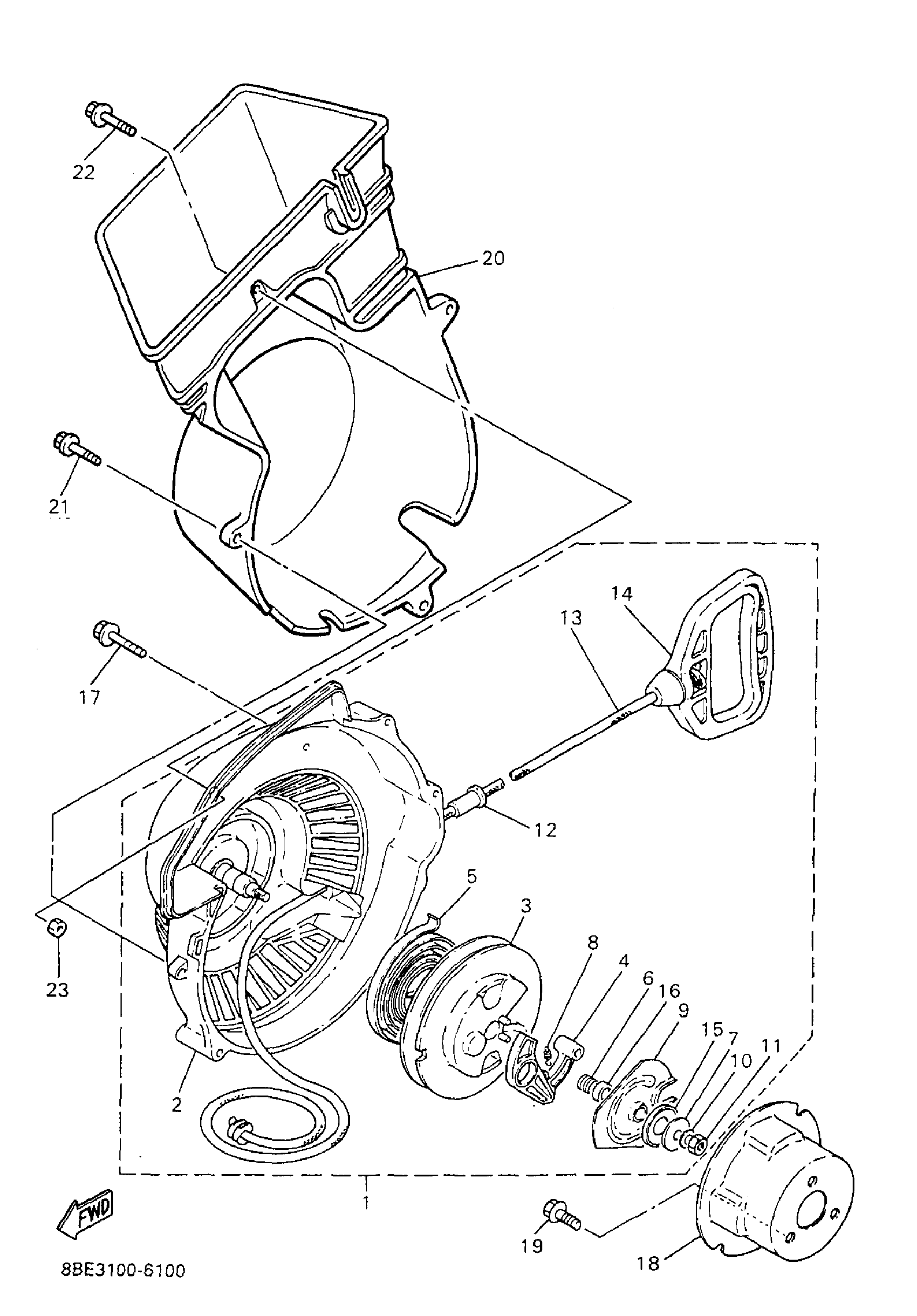

Yamaha CS340EA (OVATION LE) 1997 STARTER Diagram

STARTER ASSY

. CASE, STARTER

DRUM, SEAVE

PAWL, DRIVE

SPRING, STARTER

SPRING, DRIVE PLATE

WASHER, THRUST

SPRING, RETURN

PLATE, DRIVE

WASHER, SPRING

NUT(JN5)

GUIDE, ROPE

WIRE, STARTER (BRAIDED)

HANDLE, STARTER

WASHER, THRUST

COLLOR

BOLT, FLANGE

PULLEY, STARTER

BOLT, FLANGE

COVER

BOLT, FLANGE

BOLT, FLANGE

NUT
