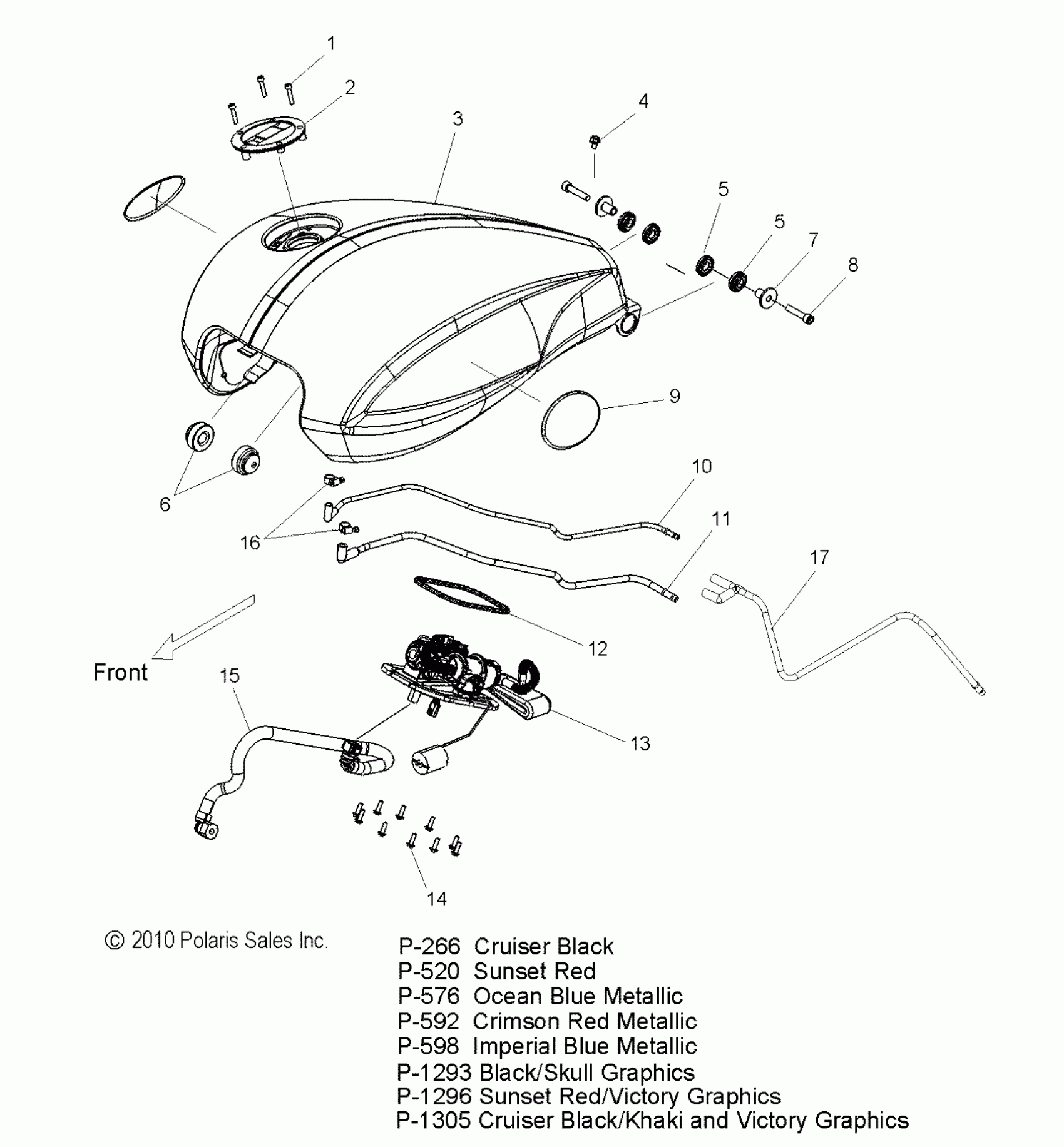

Polaris CROSS ROADS CUSTOM/CROSS COUNTRY ALL OPTIONS - V11BB36/DB36/DC36/EB36 FUEL SYSTEM, FUEL TANK - V11BB36/DB36/DC36/EB36 ALL OPTIONS (49VICFUEL11CC) Diagram

SCREW

7518086

$5.59

Asm., Ingition, Fuel Cap, Trunk, Fork, SBLKS, Black [Int'l]

4012944-266

Unavailable

Asm., Ignition, Fuel Cap, Trunk, SB Locks, Black

4012943-266

Unavailable

TANK, FUEL

1016149-520

Unavailable

Asm., Ignition/Fuel Cap/Fork Lock, Black [Int'l][Cross Roads Custom]

4013053-266

Unavailable

Tank, Fuel

1016149-598

$2,074.99

Tank, Fuel

1016149-1296

$2,444.99

TANK, FUEL

1016149-266

Unavailable

Tank, Fuel

1016149-1299

$2,289.99

TANK, FUEL

1016149-520

Unavailable

Tank, Fuel

1016149-592

$1,899.99

SCREW

7518393

Unavailable

ISOLATOR, TANK, REAR

5413491

Unavailable

ISOLATOR, TANK, REAR

5413491

Unavailable

ISOLATOR, TANK, FRONT

5413479

Unavailable

BUSHING, FLANGE

5136409

Unavailable

SCREW

7518178

Unavailable

Badge, Tank, LH

7175257

Unavailable

Badge, Tank, RH

7175258

Unavailable

LINE, FUEL VENT

5437603

Unavailable

LINE, WATER DRAIN

5437602

Unavailable

SEAL, FUEL

5413346

Unavailable

ASM., FUEL PUMP, SENDER [SERVICE][INCL. PUMP, FILTER, SENDER] [ALSO ORDER FUEL LINE 5414151, IF REPLACING FUEL PUMP 2521020]

2521171

Unavailable

ASM., SENDER, FUEL LEVEL

2521022

Unavailable

ASM., FILTER, FUEL

2521021

Unavailable

Asm., Fuel Pump, Sender [Incl. Pump, Filter, Sender]

2521020

Unavailable

SCREW

7518923

Unavailable

LINE, FUEL [FOR FUEL PUMP 2521171]

5414151

Unavailable

Line, Fuel [For Fuel Pump 2521020]

5413482

$119.99

CLAMP, HOSE

7081151

Unavailable

LINE, WTR/VENT TO GND

5437604

Unavailable
