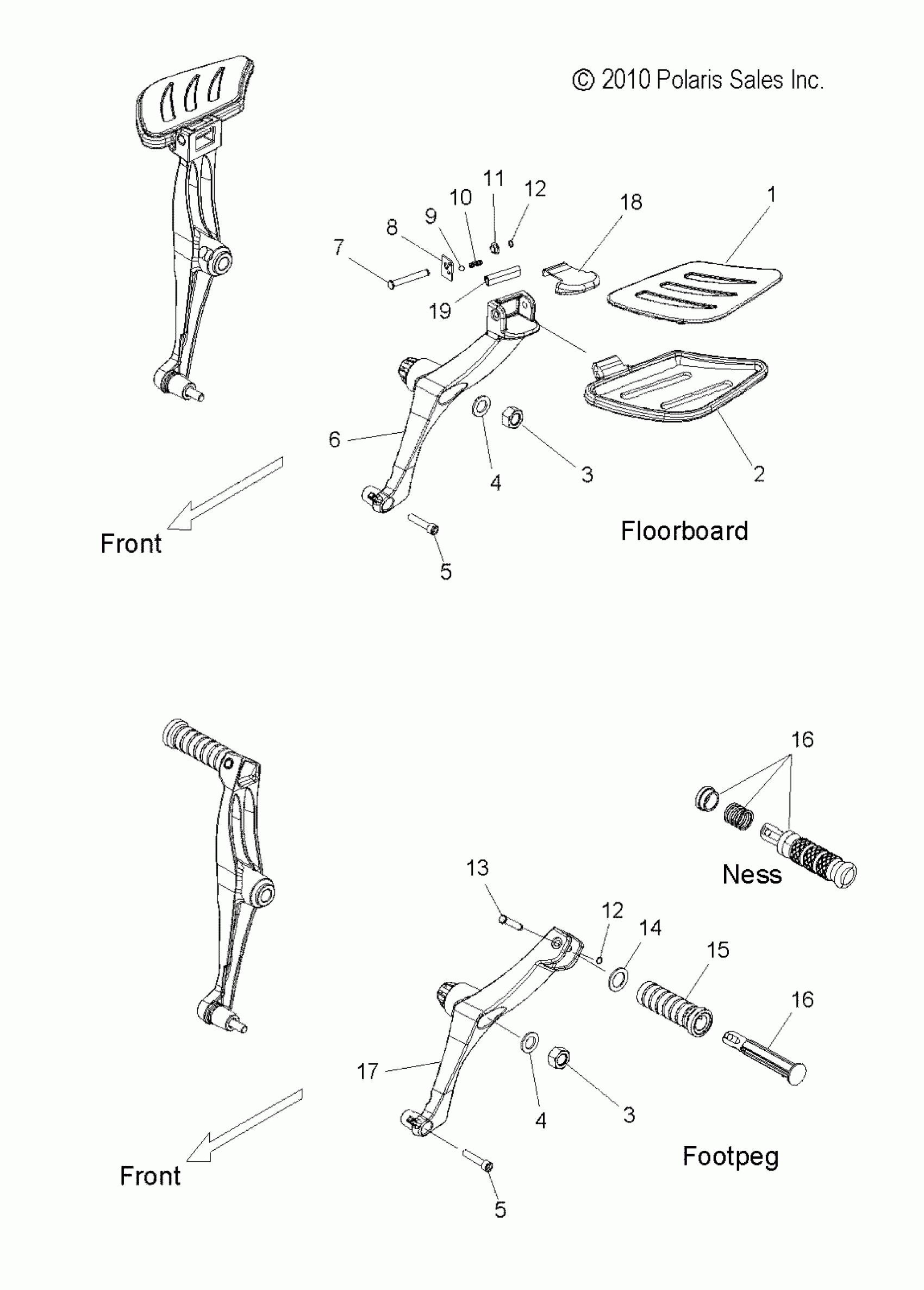

Polaris CROSS ROADS CUSTOM/CROSS COUNTRY ALL OPTIONS - V11BB36/DB36/DC36/EB36 CHASSIS, FLOORBOARD/FOOTPEG, PASSENGER - V11BB36/DB36/DC36/EB36 ALL OPTIONS (49VICFLOORBOARDPASS11CC) Diagram

PAD, PASSENGER, FLOORBOARD, LH

5413024

$36.41

PAD, PASSENGER, FLOORBOARD, RH

5413025

$36.41

Floorboard, Passenger, RH, Flat Black

5136538-463

$154.99

Floorboard, Passenger, LH, Flat Black

5136537-463

Unavailable

NUT

7540001

$4.76

NUT

7540001

$4.76

WASHER, FLAT

7556236

$7.14

WASHER, FLAT

7556236

$7.14

SCREW [RH SIDE]

7518146

$10.32

SCREW [LH SIDE]

7518178

$7.14

SCREW [RH SIDE]

7518146

$10.32

SCREW [LH SIDE]

7518178

$7.14

Mount, Floorboard, Passenger, LH

5136383-463

Unavailable

Mount, Floorboard, Passenger, LH

5136382-463

Unavailable

PIN, PIVOT

7661979

$10.32

Plate, Detent

5252311

$34.99

BALL, DETENT

5133944

$3.22

SPRING, COMPRESSION

7042255

$7.27

Bushing

5437832

Unavailable

RING-RTNG,SPIRAL,EXT,SS

7710644

$1.98

RING-RTNG,SPIRAL,EXT,SS

7710644

$1.98

PIN-PIVOT,FOOTPEG

7661980

$11.32

WASHER-FOOTPEG,PIVOT

7556274

$3.17

PAD, FOOTPEG, REAR

5412261

$20.22

FOOTPEG, LH, BRU

5136035-411

Unavailable

FOOTPEG, RH, BRU

5136036-411

Unavailable

BUSHING, FOOTPEG, BILLET, NESS

5436815

$26.98

SPRING, FOOTPEG, BILLET, NESS

7043249

$7.38

Asm., Footpeg, Billet, Ness, Knurl

1017164

$154.99

FOOTPEG, LH, BRU

5136035-411

Unavailable

FOOTPEG, RH, BRU

5136036-411

Unavailable

BUSHING, FOOTPEG, BILLET, NESS

5436815

$26.98

SPRING, FOOTPEG, BILLET, NESS

7043249

$7.38

Asm., Footpeg, Billet, Ness, Knurl

1017164

$154.99

MOUNT, FOOTPEG, PASSENGER, LH, FLAT BLACK

5136384-463

$129.99

MOUNT, FOOTPEG, PASSENGER, RH, FLAT BLACK

5136385-463

$129.99

Mount, Footpeg, Passenger, LH, Mini-Tex Black [Ness]

5136384-595

$82.99

Mount, Footpeg, Passenger, RH, Mini-Tex Black [Ness]

5136385-595

Unavailable

Bumper, Floorboard, Passenger, LH

5414107

$1.27

Bumper, Floorboard, Passenger, LH

5414101

$1.27

Trim, Edge, Floorboard

8360085

Unavailable
