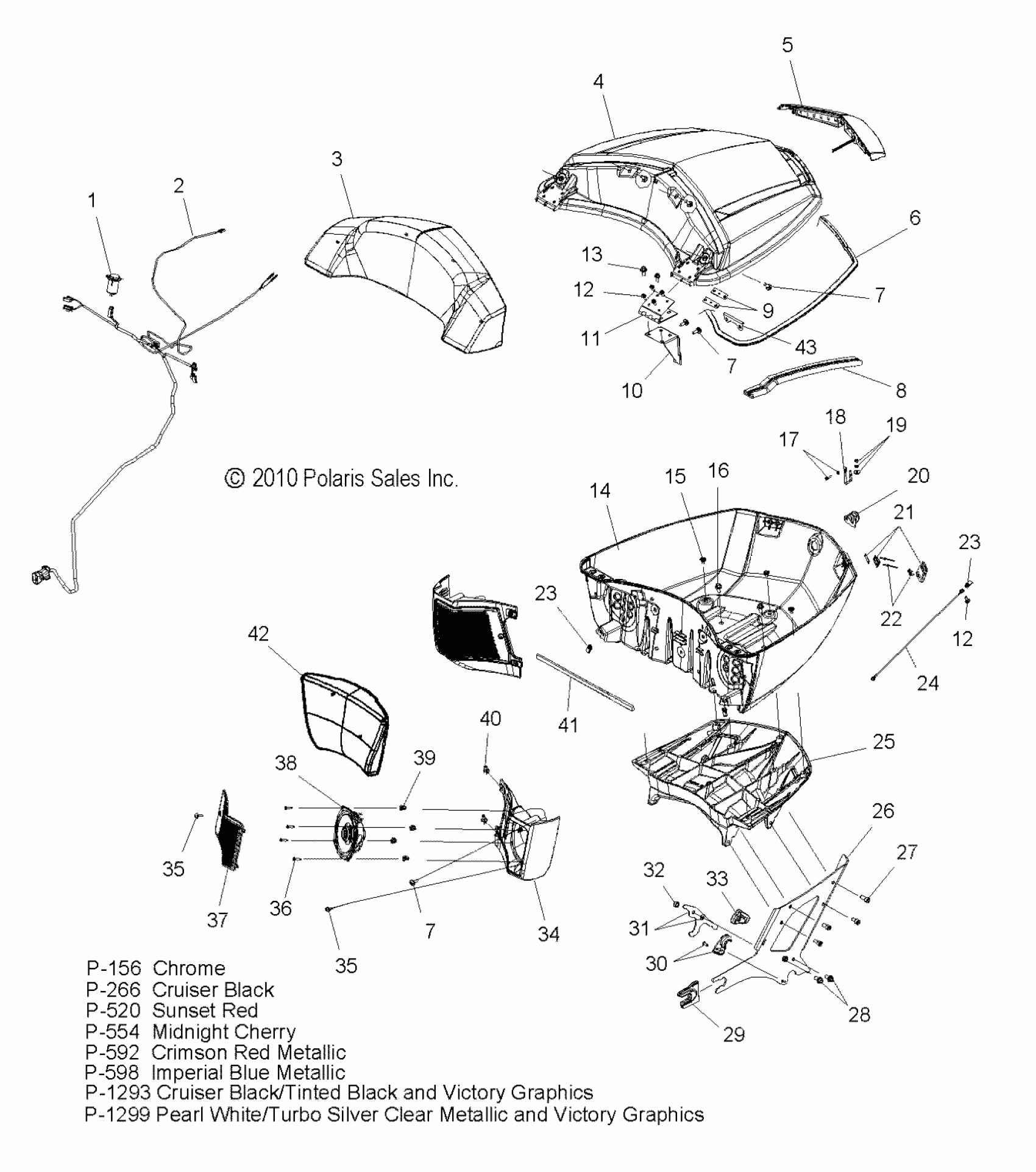

Polaris CROSS ROADS CUSTOM/CROSS COUNTRY ALL OPTIONS - V11BB36/DB36/DC36/EB36 BODY, TRUNK ASM. (ACCESSORY) - V11BB36/DB36/DC36/EB36 ALL OPTIONS (49VICTRUNK11CC) Diagram

#

Description
Price

1

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

2

HARNESS, TRUNK

2411348

$99.99

3

ASM., TOP PAD

2684423

$244.99

4

Panel, Lid

5438159-592

$494.99

4

Panel, Lid

5438159-598

$569.99

4

Panel, Lid

5438159-1299

$1,064.99

4

Panel, Lid

5438159-554

$529.99

5

ASM., LAMP, RUNNING

2411347

$153.79

6

SEAL

5521798

$31.75

7

SCREW

7518484

$4.76

7

SCREW

7518484

$4.76

7

SCREW

7518484

$4.76

8

COVER, WIRE, TRUNK LID

5521819

$89.03

9

ASM., PLATE, HINGE MOUNT, LID

2634025

$28.32

10

ASM., BRACKET, HINGE SUPPORT, LH

2634024

$44.99

10

ASM., BRACKET, HINGE SUPPORT, RH

2634023

$49.99

11

ASM., HINGE

2633934

$72.84

12

SCREW

7518875

$4.84

12

SCREW

7518875

$4.84

13

Screw

7517770

$2.38

14

Panel, Trunk Bin

5438158-592

$599.99

14

Panel, Trunk Bin

5438158-598

$639.99

14

Panel, Trunk Bin

5438158-520

$619.99

14

Panel, Trunk Bin

5438158-554

$675.99

15

BOLT, SHOULDER

7518788

$7.14

16

SCR-HXFL-M8X1.25X16 8.8 ZPB D5

7517956

$7.94

17

WASHER

7555727

$0.40

17

SCREW

7518900

$3.17

18

HOOP, WIREFORM, LOCK

5336385

$43.65

19

NUT-M5X.8,HX NYL-Y

7546601

$1.19

19

WASHER

7556034

$2.38

19

WASHER

7556071

$4.76

20

ASM., LOCK

2633936

Unavailable

21

ASM., LATCH

2633935

$31.75

22

WASHER

7555727

$0.40

22

SCREW

7519233

$10.32

23

NUT, CLIP, U-SPEED

7547386

$2.38

23

NUT, CLIP, U-SPEED

7547386

$2.38

24

CABLE

7081653

$36.41

25

SUPPORT, TRUNK, CENTER

5137308-521

Unavailable

26

Support, Trunk, Side, LH

1017622-463

Unavailable

26

Support, Trunk, Side, LH

1017623-463

$159.99

26

Support, Trunk, Side, RH

1017622-156

Unavailable

26

Support, Trunk, Side, RH

1017623-156

Unavailable

27

Screw [Black]

7517410

$10.99

27

Screw [Chrome]

7517523

$5.22

28

SCR-HXFL-M8X1.25X16 8.8 ZPB D5

7517956

$7.94

29

MOUNT, SPOOL, FRONT

5413968

Unavailable

30

Rivet

7621462

$1.19

30

BUSHING, TRUNK MOUNT, LH

5438535

$27.78

30

BUSHING, TRUNK MOUNT, RH

5438474

$27.78

31

BUSHING

5438633

$7.14

31

LATCH, SUPPORT

5254096

$32.37

32

NUT-NYLOCK M8X1.25-Y

7547144

$3.17

33

HANDLE, LATCH

5413864

$10.32

34

PANEL, SPEAKER HOUSING, LH

5438425

$67.46

34

PANEL, SPEAKER HOUSING, RH

5438426

$67.46

35

BOLT

7518515

Unavailable

35

BOLT

7518515

Unavailable

36

Screw

7518590

$3.17

37

PANEL, SPEAKER GRILL, LH

5438423

$44.51

37

PANEL, SPEAKER GRILL, RH

5438424

$44.51

38

SPEAKER

4012273

$254.98

39

NUT, PAL

7547324

$3.97

40

CLIP-U SPEED NUT

7081305

$1.98

41

GASKET, STRIP, FOAM

5813595

$3.97

42

ASM., BACKREST

2684424

Unavailable

43

ASM., BRACKET, LANYARD

2634044

$28.32
