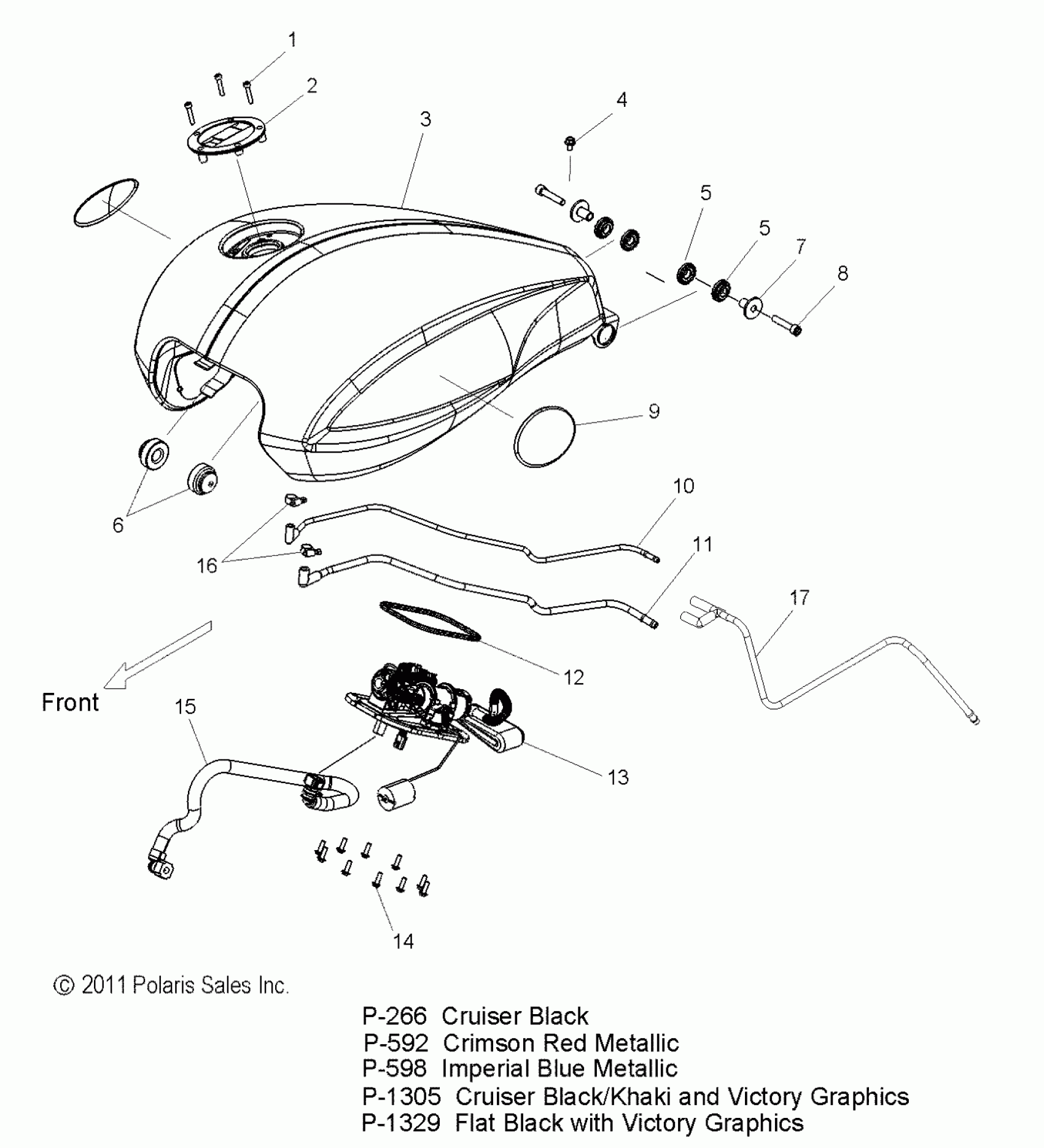

Polaris CROSS ROADS ALL OPTIONS - V12BW36/EW36 FUEL SYSTEM, FUEL TANK - V12BW36/EW36 ALL OPTIONS (49VICFUEL12CR) Diagram

SCREW

7518086

$5.56

Asm., Ingition, Fuel Cap, Trunk, Fork, SBLKS, Black [Int'l]

4012944-266

Unavailable

Asm., Ignition, Fuel Cap, Trunk, SB Locks, Black

4012943-266

$580.94

ASM., IGNITION/FUEL CAP/FORK LOCK, BLACK [INT'L]

4013053-266

$339.99

Tank, Fuel

1016149-598

$2,074.99

TANK, FUEL

1016149-266

Unavailable

TANK, FUEL

1016149-1329

Unavailable

Tank, Fuel

1016149-1305

$2,074.99

Tank, Fuel

1016149-592

$1,899.99

SCREW

7518393

$7.84

ISOLATOR, TANK, REAR

5413491

Unavailable

ISOLATOR, TANK, REAR

5413491

Unavailable

ISOLATOR, TANK, FRONT

5413479

$5.65

BUSHING, FLANGE

5136409

$29.99

SCREW

7518178

$7.14

Badge, Tank, LH

7175257

$86.51

Badge, Tank, RH

7175258

$86.51

LINE, FUEL VENT

5437603

$87.13

LINE, WATER DRAIN

5437602

$48.40

SEAL, FUEL

5413346

$23.81

ASM., FUEL PUMP, SENDER [SERVICE][INCL. PUMP, FILTER, SENDER] [ALSO ORDER FUEL LINE 5414151, IF REPLACING FUEL PUMP 2521020]

2521171

$409.99

ASM., SENDER, FUEL LEVEL

2521022

$194.99

ASM., FILTER, FUEL

2521021

$119.99

Asm., Fuel Pump, Sender [Incl. Pump, Filter, Sender]

2521020

$409.99

SCREW

7518923

$0.79

LINE, FUEL [FOR FUEL PUMP 2521171]

5414151

$119.99

Line, Fuel [For Fuel Pump 2521020]

5413482

$124.99

CLAMP, HOSE

7081151

$7.14

LINE, WTR/VENT TO GND

5437604

Unavailable
