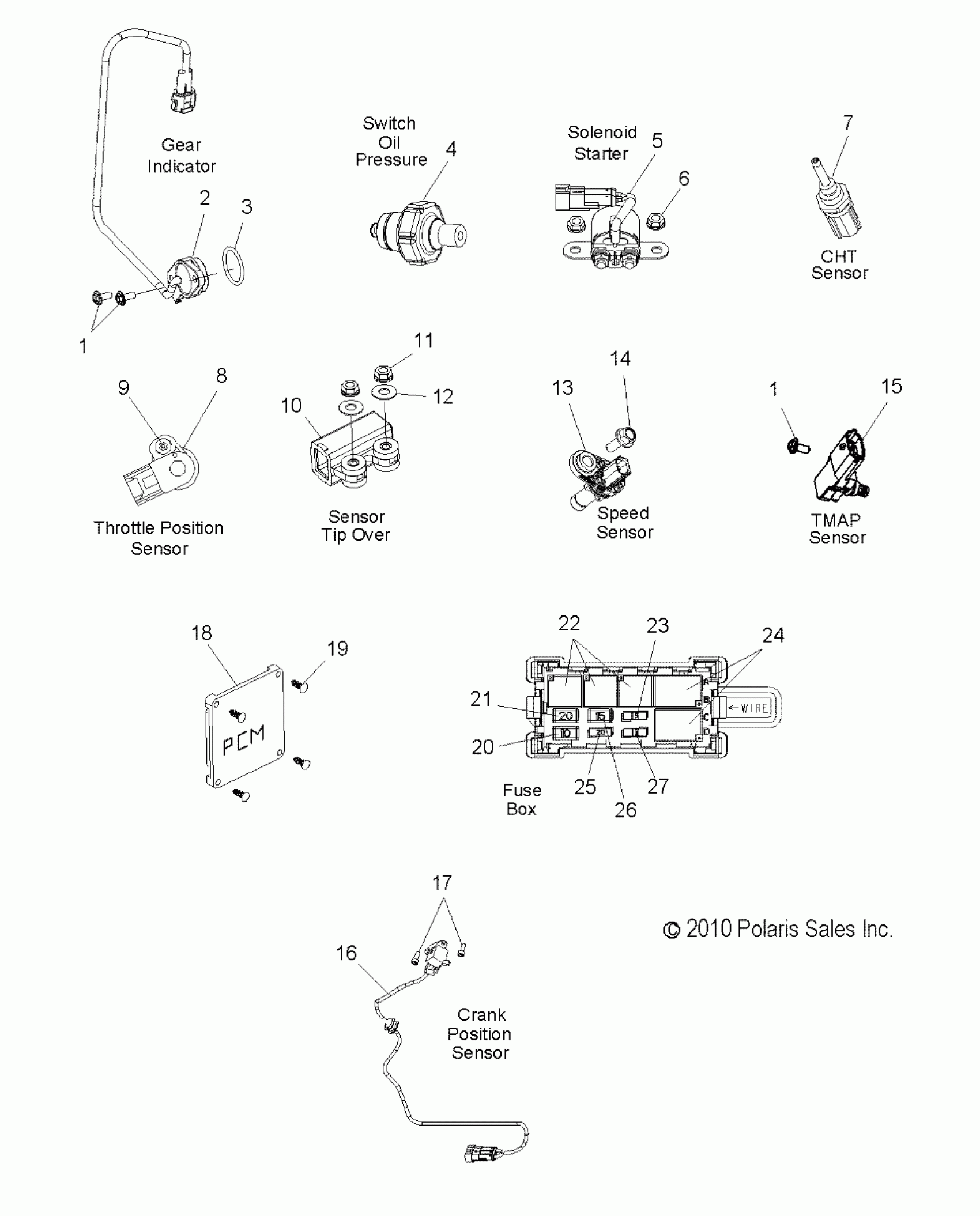

Polaris CROSS ROADS ALL OPTIONS - V12BW36/EW36 ELECTRICAL, SWITCHES, SENSORS and COMPONENTS 1 - V12BW36/EW36 ALL OPTIONS (49VICSWITCHES11CC1) Diagram

#

Description
Price

1

SCREW

7518338

$5.99

1

SCREW

7518338

$5.99

2

SWITCH, GEAR INDICATOR

4010976

$52.60

3

O-RING

5412530

$1.60

4

SWITCH, OIL PRESSURE

4012668

$44.51

5

SOLENOID, STARTER

4012001

$47.60

6

Nut

7710495

$5.22

7

SENSOR, CYLINDER HEAD TEMP

4012971

$64.75

8

SENSOR, THROTTLE POSITION

4012101

$519.99

9

SCREW

7518901

$4.76

10

SENSOR, TIP OVER

4011296

Unavailable

11

NUT

7547126

$3.48

12

WASHER, FLAT

7556477

Unavailable

13

SENSOR, VEHICLE SPEED

4011884

$232.37

14

SCREW

7517750

$10.32

15

Sensor, T-Map

2410422

$97.13

16

SENSOR, CRANK POSITION

4012280

$135.54

17

SCREW

7518045

$10.32

18

PCM, SERVICE

4013160

$644.99

19

CLIP, PLASTIC DART

7670141

$4.76

20

BREAKER, CIRCUIT, 10 AMP.

4011371

$15.87

21

BREAKER-CIRCUIT,20 AMP

4011372

$44.51

22

RELAY-SPST,SERIES 303,SEALED

4011283

$36.41

23

FUSE-MINI BLADE,15 AMP

2410280

$8.08

24

RELAY, SERIES 301

4011284

$36.41

25

FUSE-PARK,20 AMP

2434017

$8.08

26

BREAKER, CIRCUIT, 15 AMP.

4011406

$68.79

27

FUSE-IGNITION,10 AMP

2434016

$5.65
