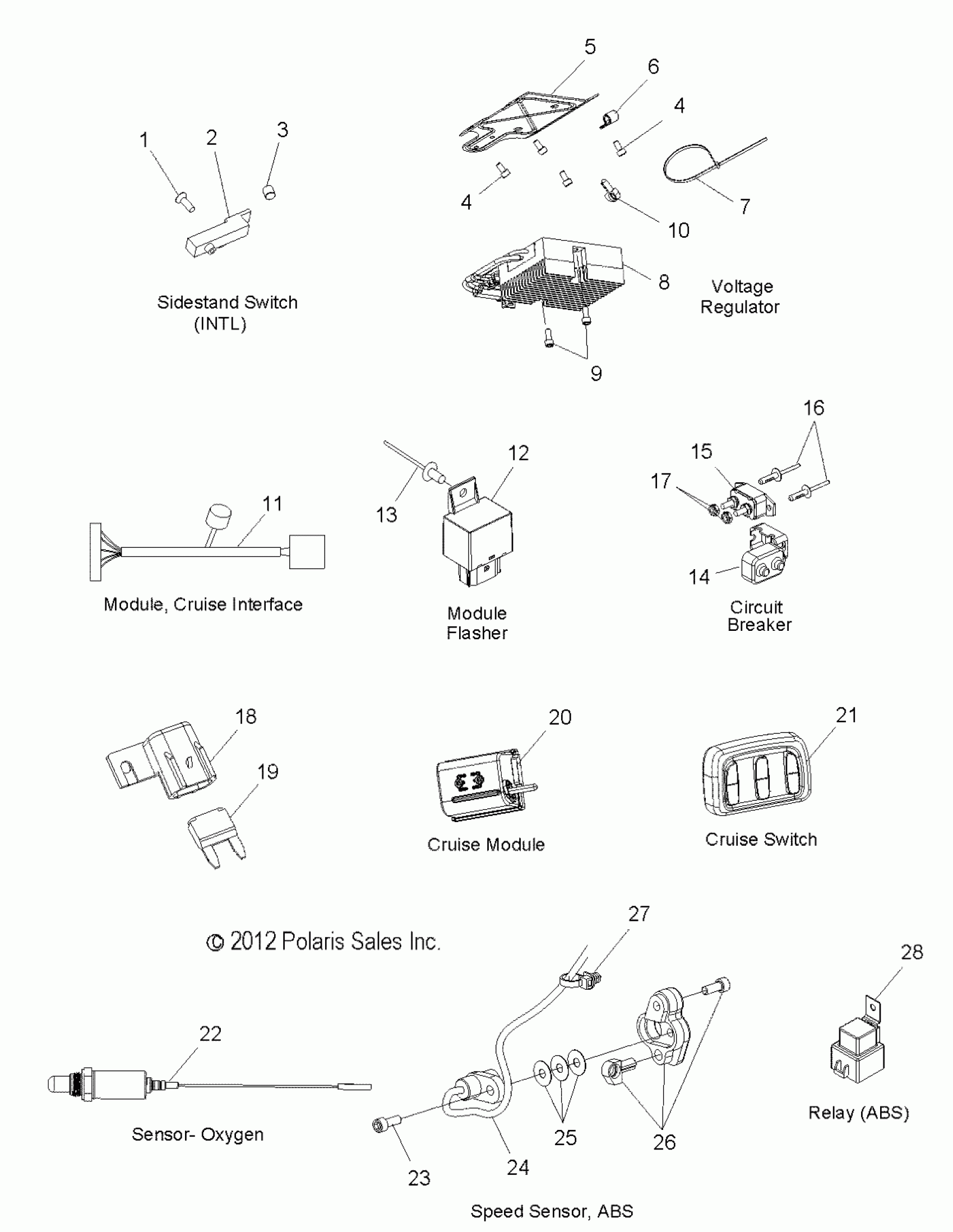

Polaris CROSS ROADS 8-BALL/CROSS ROADS CLASSIC ALL OPTIONS - V14BA36/BW36 ELECTRICAL, SWITCHES, SENSORS and COMPONENTS 2 - V14BA36/BW36 ALL OPTIONS (49VICSWITCHES13CR) Diagram

#

Description
Price

1

SCR-FLHD-M4X0.7X12MM,TORX [INTL]

7519276

$4.79

2

SWITCH, SIDE STAND [INTL]

4013130

Unavailable

3

MAGNET, SIDE STAND [INTL]

4013131

Unavailable

4

Screw

7517739

$9.59

4

Screw

7517739

$9.59

5

BRACKET, CONNECTOR, ZINC/BLACK

5248079-408

Unavailable

6

CLAMP-REAR BRAKE

7080983

$3.99

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

REGULATOR, VOLTAGE, BLACK

4012717

Unavailable

9

SCREW

7517272

$7.19

10

Clip

7670102

$2.39

11

Module, Interface

4013839

Unavailable

12

MODULE, FLASHER, LED

4013199

Unavailable

13

RIVET

7081617

Unavailable

14

BOOT

4010778

$5.59

15

BREAKER, CIRCUIT

2410332

Unavailable

16

Rivet

7081040

$1.49

17

NUT

7541931

$4.79

18

COVER-FUSEHOLDER

4012260

$9.70

19

FUSE-MAIN,30 AMP

2434015

$7.19

20

MODULE, CRUISE

4012752

Unavailable

21

SWITCH, CRUISE, HIGH CURRENT, BLACK

4013049

Unavailable

22

SENSOR, OXYGEN

4010430

$133.56

23

SCREW

7517272

$7.19

24

SENSOR, WHEEL SPEED

4013251

Unavailable

25

SHIM, SENSOR, ABS

5255106

Unavailable

26

CLIP, SILENCER [FRONT]

7670102

$2.39

26

SCREW [FRONT]

7517272

$7.19

26

MOUNT, SPEED SENSOR, ABS [FRONT]

5632575

Unavailable

27

CABLE-TIE,DIA10-50MM,FIR-TREE [REAR]

7081334

$1.59

28

Relay, DPST, Sealed [ABS]

4011828

Unavailable
