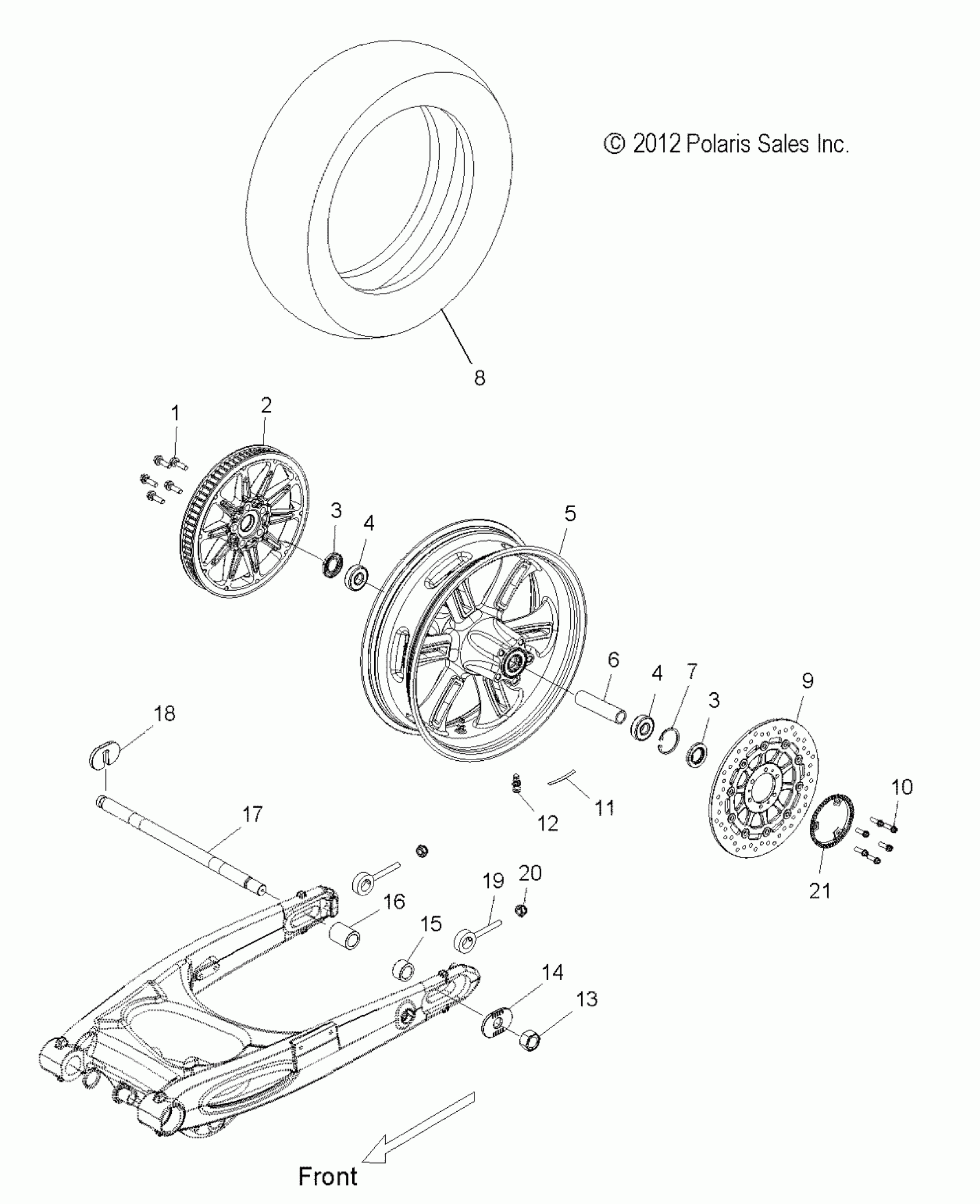

Polaris CROSS COUNTRY/TOURING ALL OPTIONS - V13DW36/TW/KW/ZW WHEELS, REAR - V13DW36/TW/KW/ZW ALL OPTIONS (49VICWHEELRR13CC) Diagram

#

Description
Price

1

SCREW

7518878

$4.76

2

ASM., SPROCKET, DRIVEN, 70T, BLACK WRINKLE

1332399-521

$554.99

3

SEAL

3610094

$31.75

3

SEAL

3610094

$31.75

4

BEARING, BALL

3514405

$19.84

4

BEARING, BALL

3514405

$19.84

5

ASM., WHEEL, CAST, REAR

1521384-266

Unavailable

5

Asm., Wheel, Rear, Billet, ABS, POL [Ness]

1521921-266

$2,329.99

6

SPACER, BEARING

5335811

$34.99

6

Spacer, Bearing, Mid [Billet][Ness]

5334863

$48.41

7

Ring, Retaining

7710526

$10.32

8

TIRE, 180/60R16

5413397

Unavailable

9

ROTOR, BRAKE, BLACK

1911692-266

$379.99

10

SCREW

7518661

$1.59

11

WEIGHT, BALANCE, BLACK

1521682

Unavailable

11

Weight, Balance, Silver [Billet][Ness]

1521681

Unavailable

12

VALVE, RIM

1521312

$11.32

12

Valve, Rim [Billet][Ness]

1521515

Unavailable

13

NUT

7547226

$23.81

14

WASHER, INDICATOR, AXLE

5248452-236

$27.78

15

SPACER, BEARING, LH

5631479

$3.97

16

SPACER, WHEEL, REAR, RH

5631581

$11.99

17

AXLE, REAR

5137446

$63.49

18

RETAINER, AXLE, REAR

5248599

$27.78

19

ADJUSTER, AXLE

1014895

$36.41

20

NUT-NYLOCK M8X1.25-Y

7547144

$3.17

21

RING, TONE, ABS

5632541

$31.75
