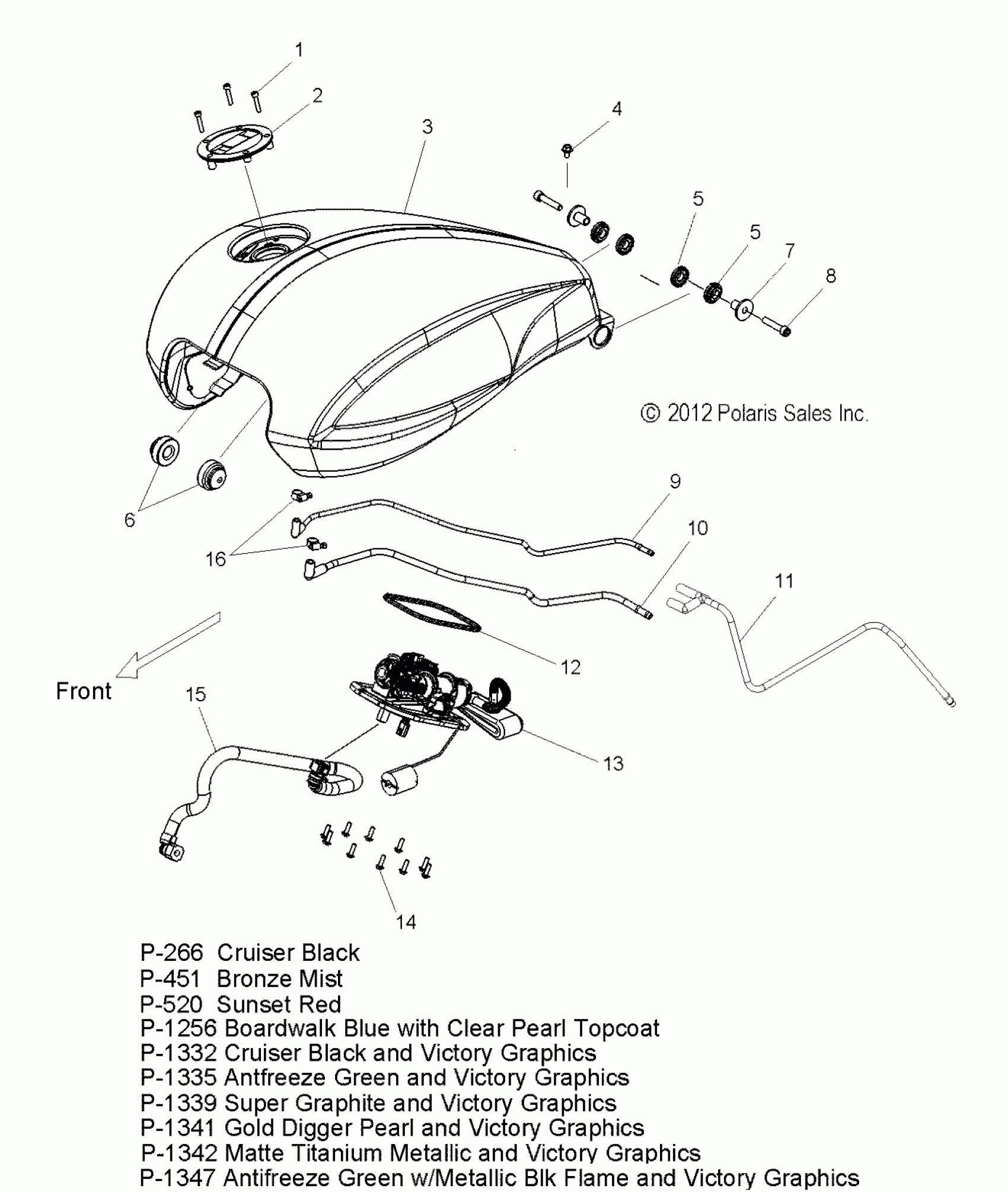

Polaris CROSS COUNTRY/TOURING ALL OPTIONS - V13DW36/TW/KW/ZW FUEL SYSTEM, FUEL TANK - V13DW36/TW/KW/ZW ALL OPTIONS (49VICFUEL13CC) Diagram

#

Description

Price

1

SCREW

7518086

$5.59

2

Asm., Ingition, Fuel Cap, Trunk, Fork, SBLKS, Black [Int'l]

4012944-266

Unavailable

2

Asm., Ignition, Fuel Cap, Trunk, SB Locks, Black

4012943-266

Unavailable

3

TANK, FUEL

1016149-266

Unavailable

3

TANK, FUEL

1016149-520

Unavailable

3

Tank, Fuel

1016149-1339

Unavailable

3

Tank, Fuel [Built 8/22/12 and Before]

1016149-1335

Unavailable

3

Tank, Fuel

1016149-1332

Unavailable

3

Tank, Fuel

1016149-451

Unavailable

3

Tank, Fuel

1016149-1341

Unavailable

3

Tank, Fuel

1016149-1342

Unavailable

3

Tank, Fuel [Built 8/23/12 and After]

1016149-1347

Unavailable

3

Tank, Fuel

1016149-1256

Unavailable

4

SCREW

7518393

Unavailable

5

ISOLATOR, TANK, REAR

5413491

Unavailable

5

ISOLATOR, TANK, REAR

5413491

Unavailable

6

ISOLATOR, TANK, FRONT

5413479

Unavailable

7

BUSHING, FLANGE

5136409

Unavailable

8

SCREW

7518178

Unavailable

9

LINE, FUEL VENT

5437603

Unavailable

10

LINE, WATER DRAIN

5437602

Unavailable

11

LINE, WTR/VENT TO GND

5437604

Unavailable

12

SEAL, FUEL

5413346

Unavailable

13

ASM., FUEL PUMP, SENDER [SERVICE][INCL. PUMP, FILTER, SENDER] [ALSO ORDER FUEL LINE 5414151, IF REPLACING FUEL PUMP 2521020]

2521171

Unavailable

13

ASM., SENDER, FUEL LEVEL

2521022

Unavailable

13

ASM., FILTER, FUEL

2521021

Unavailable

14

SCREW

7518923

Unavailable

15

LINE, FUEL [FOR FUEL PUMP 2521171]

5414151

Unavailable

16

CLAMP, HOSE

7081151

Unavailable
